Overview

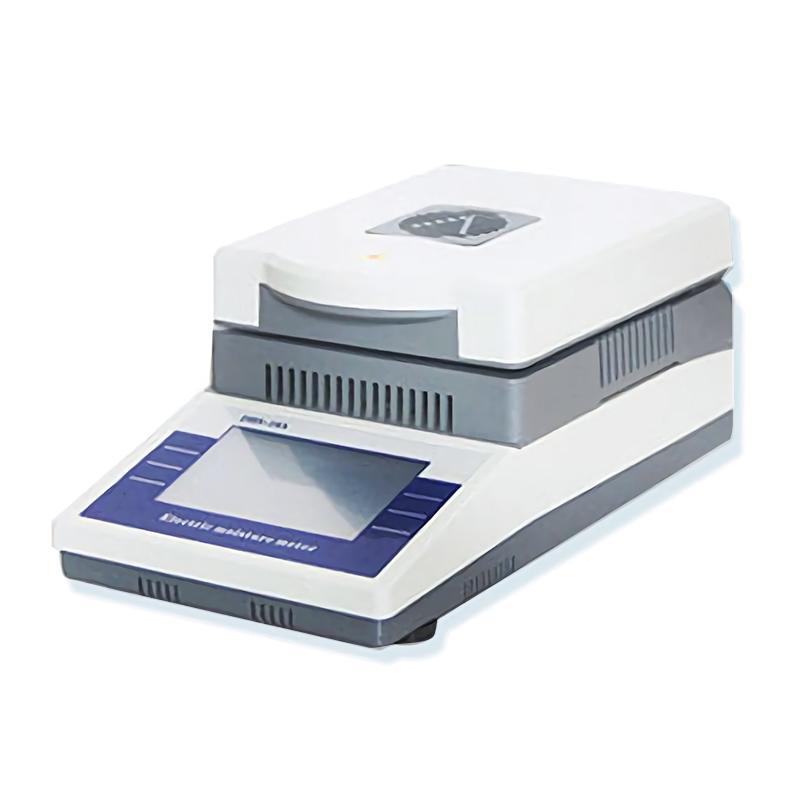

The DHS-16A Moisture Analyzer is a precision measurement device from the JINGQI brand. It uses a halogen lamp heating source to quickly determine the moisture content of samples in the temperature range of 50 ° C to 180 ° C, and the measurement range covers 0% -100%. The instrument has a High Accuracy weighing system with a Capacity value of 50g and readability of 5mg. It is suitable for rapid moisture analysis in laboratory and industrial environments.
Features
1. Using halogen lamp heating source, heating quickly and evenly
2. Wide range of moisture measurement, covering 0% -100%
3. High Accuracy Weighing System, readability up to 5mg
4. Precise temperature control, adjustment tolerance +/- 0.1 ℃
5.9 display parameters, comprehensive information
6. Equipped with RS232 communication interface for easy data transmission
7. Timed automatic end function, easy to operate
8. Compact design, dimensions 330 * 180 * 140mm
Principle
The DHS-16A Moisture Analyzer works on the principle of thermogravimetry, heating the sample with a halogen lamp to evaporate the water, and has a built-in precision weighing Sensor to monitor the sample mass change in real time. The instrument automatically calculates the moisture content percentage by calculating the sample mass difference before and after heating, enabling fast and accurate moisture determination.
Applications
Laboratory, Industrial Quality control, Food processing, Chemical production, Pharmaceutical manufacturing, Agricultural research, Material analysis
Standards
Pollution level 2
Steps
1. Place the instrument in a 15 ℃ -30 ℃ environment with a relative humidity of 50% -75%
2. Turn on the 220V power supply and warm up for at least 30 minutes
3. Place the sample on the φ 100mm pan
4. Set the heating temperature (50 ° C -180 ° C) and timing time (0-99 minutes)
Step 5 Start the assay procedure
6. The instrument automatically completes the measurement and displays the results
7. Data can be exported through the RS232 interface
Notice
• Ambient Temperature should be in the range of 15 ℃ -30 ℃, extreme temperature may affect the measurement accuracy
• The relative humidity should be maintained at 50% -75%, and there should be no condensation at 30 ° C
• Power input is 220V AC, voltage fluctuation range is 220 +/- 10%
• The maximum power during heating is 350W, pay attention to the power load
• Sample weight should be ≥ 3g to ensure measurement accuracy
• The instrument has dust and moisture protection, but should be avoided in a heavily polluted environment
• Can be used immediately when restored from standby without reheating
