Overview

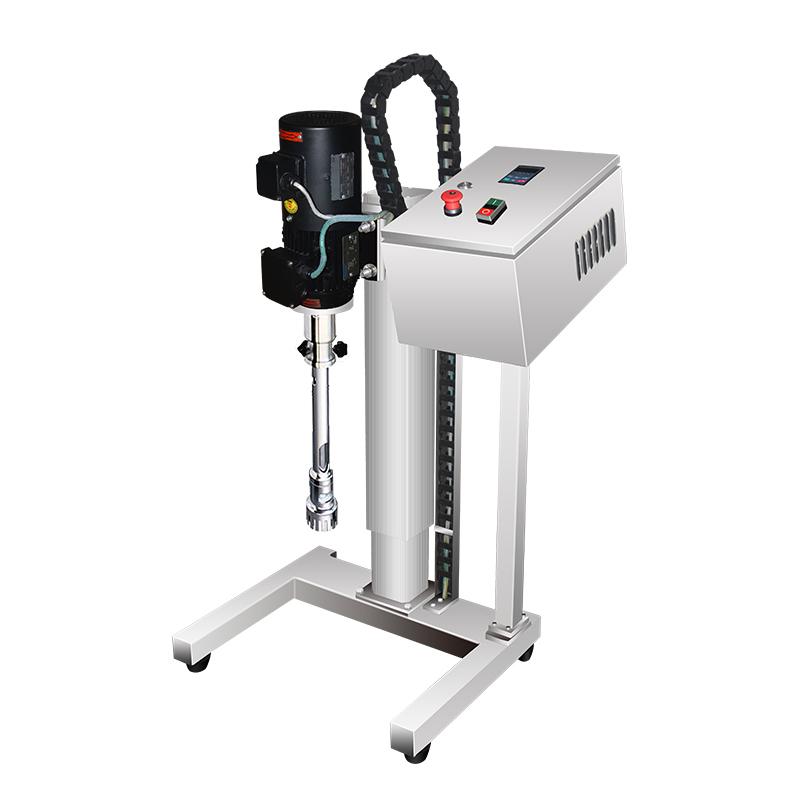

Shanghai HUXI (HUXI) pilot-scale high-shear dispersed Mulser HR-60Z (electric lift) is designed for pilot-scale, simulated production and small-batch production in factories. The standard working head adopts a claw structure, and the suitable stator and rotor can be freely replaced to adapt to different materials and process requirements.
Features
1. Laboratory pilot-scale equipment with a processing capacity of 30L (H2O)
2. Stirring, dispersion, homogenization, emulsification, shut-off mixing, solid-liquid dispersion mixing, grinding and other functions can be realized only by changing the working head
3. Equipped with high-speed variable frequency motor, variable frequency start protection equipment when starting, adjustable speed and digital display
4. Continuous Operating Time up to 8 hours
5. The dispersion head adopts a quick connection method, which is easy to disassemble and replace
6. Modular design of equipment, flexible combination
Principle
The equipment drives the claw structure working head swirl/spin through a high-speed variable frequency motor, generating high shear force, and realizing the dispersion, emulsification, and homogenization of materials; the variable frequency speed regulation can precisely control the speed to adapt to different process requirements.
Applications
Pilot test, simulated production, factory small batch production
Standards
Protection Rating IP54, Overload Protection
Steps
1. Select and install the appropriate working head as required
2. Connect the power supply and ensure that the voltage is 220V 50HZ.
3. The frequency conversion starts when turning on, and the required speed is set through the speed regulation function
4. Use the electric lift function to adjust the working head position
5. Perform batch processing and work continuously for no more than 8 hours
6. Remove the working head for cleaning after completion
Notice
• Permissible Ambient Temperature 5~ 40 ℃, relative humidity does not exceed 80%
• Maximum processing viscosity does not exceed 5000cp
• Power frequency matching to avoid overload
• Continuous Operating Time is limited to 8 hours
• Regularly check the status of the working head and bearings and replace them in time
Equipment weight about 35Kg, pay attention to safety when handling
