Overview

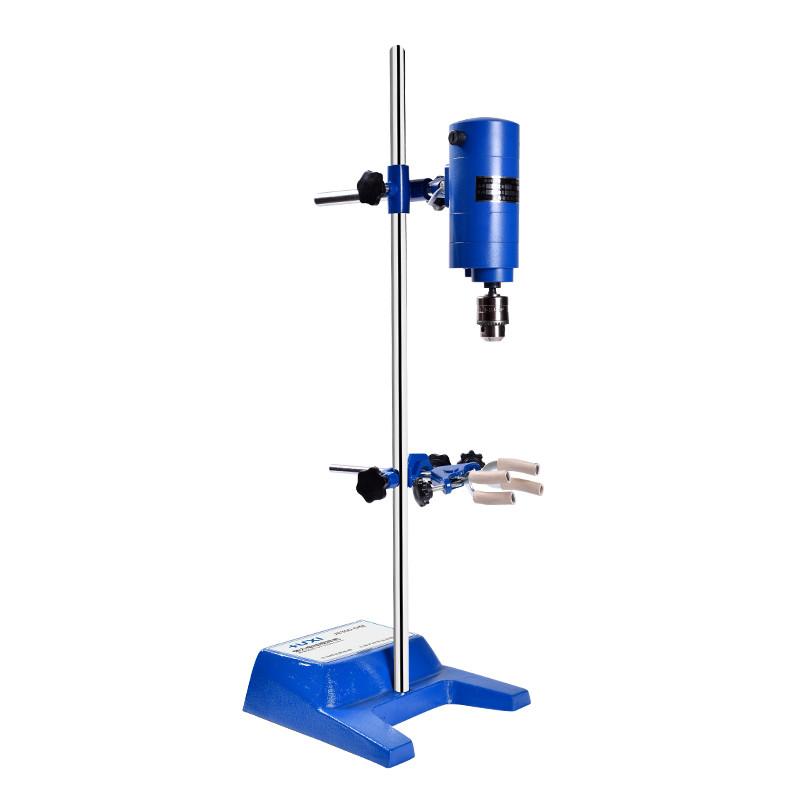

HUXI JB200-D powerbasic stirrer is a liquid mixing Stir equipment suitable for biological, physical and chemical, cosmetics, health products, food and other experimental fields. The product design is novel, the manufacturing process is professional, the low-speed running torque output is large, and the continuous use performance is good. It is an ideal equipment for scientific research, product development, quality control and production process applications in factories, scientific research institutions, Universities & colleges.
Features
1. Impellers have a wide range of types, specifications and adaptations;
2. Impeller special rolling head, easy to uninstall and operate;
3. Open rack: Wide selection of media containers, Stir mixing is convenient;
4. Various instrument specifications to meet the Stirring requirements of different sample capacities and different viscosity;
5. Stepless variable speed control: optional experimental running speed, wide application range, convenient speed regulation;
6. Aluminum metal casing ensures mechanical accuracy for long-term use and electrical performance for continuous use;
7. The drive motor is a series micro motor with high power and compact structure, which is safe and reliable to operate.
8. Novel product design, professional manufacturing process, large torque output at low speed, good continuous use performance;
9. Multi-stage Non-metallic gears are used to transmit force, resulting in a doubling of torque, stable operation, and low noise.
Principle
The drive motor is powered by a series micro motor with high power and compact structure, and the control state is controlled by a numerical control touch stepless governor to realize speed regulation and digital display of running speed. The output booster mechanism adopts multi-stage Non-metallic gears to transmit force, which doubles the torque and ensures stable running state and low noise.
Applications
Scientific research, product development, quality control and production process application in experimental fields such as biology, physics and chemistry, cosmetics, health products, food, factories, scientific research institutions, Universities & colleges
Steps
1. Select the appropriate Impeller and Media Container according to the experimental requirements;
2. Use the Impeller special rolling head for unloading to ensure flexible and convenient operation;
3. Set the required speed through the numerical control touch stepless governor, and display the running status digitally;
4. Stir the equipment and monitor the running process.
5. After the experiment is completed, turn off the equipment, clean and maintain the Stir components.
Notice
• Power frequency of AC 220 V 50 Hz to avoid equipment damage due to voltage mismatch;
• Check whether the Impeller installation is firm before operation to prevent peeling during operation;
• Select the appropriate instrument specification and speed range according to the sample capacity and viscosity;
• Pay attention to the temperature of the equipment during continuous use to avoid overheating affecting the performance;
• Regularly clean and maintain the casing and internal components to ensure long-term mechanical accuracy and electrical performance.
