Overview

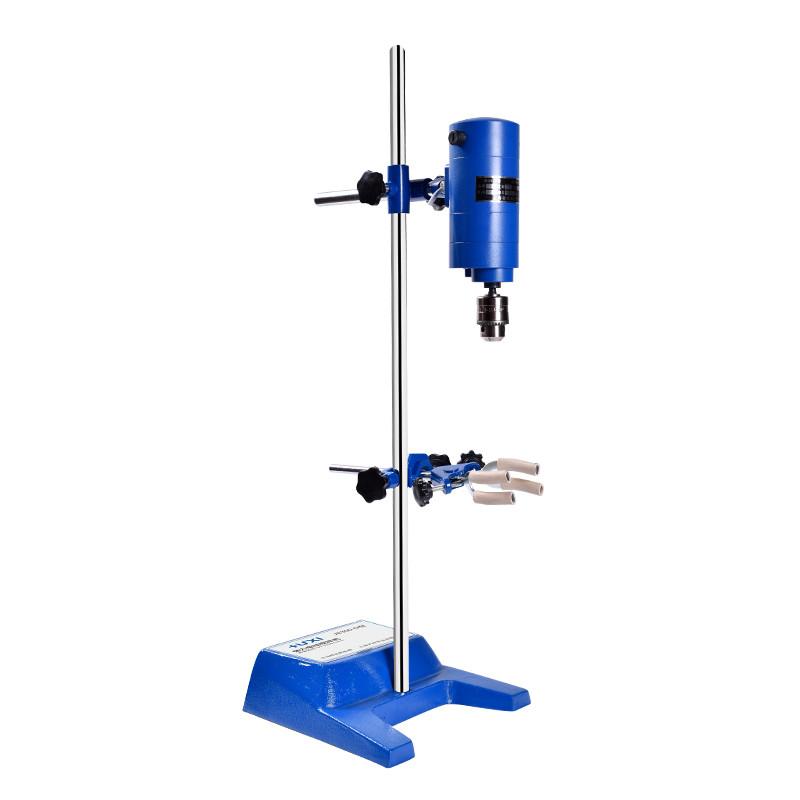

HUXI JB90-D powerbasic stirrer is a liquid mixing Stir equipment suitable for biological, physical and chemical, cosmetics, health products, food and other experimental fields. The product design is novel, the manufacturing process is professional, and it has the characteristics of large torque output at low speed and good continuous use performance. It is an ideal equipment for scientific research, product development, quality control and production process applications in factories, scientific research institutions, Universities & colleges.
Features
1. A wide variety of Impellers, various specifications, and a wide range of adaptations
2. Impeller special rolling head, easy to uninstall and operate
3. Open rack: Wide selection of media containers, Stir mixing is convenient
4. Various instrument specifications to meet the needs of different sample capacities and different viscosity Stirring
5. Stepless variable speed control: optional experimental running speed, wide application range, convenient speed regulation
6. Aluminum metal casing ensures mechanical accuracy for long-lasting use and electrical performance for continuous use
7. The drive motor adopts a series micro motor with high power and compact structure, which runs safely and reliably
8. Novel product design, professional manufacturing process, large torque output at low speed, good continuous use performance
9. Multi-stage Non-metallic gears are used to transmit force, torque is doubled, running state is stable, and noise is low
Principle
The Stirrer is driven by a series micro motor, and the torque is multiplied by a multi-stage Non-metallic gear transmission booster mechanism. With the numerical control touch stepless governor, the motion state is controlled to achieve stable operation and low noise operation.
Applications
Biological, physical and chemical, cosmetics, health products, food and other experimental fields
Steps
1. Choose the right Impeller according to the experimental needs
2. Install Impeller with Special Roller
3. Place the Stirrer on an open rack
4. Connect the power supply (AC 220V 50Hz)
5. Set the required speed by numerical control touch stepless governor (100~ 1400rpm)
6. Stir the device
7. Turn off the power after the experiment is completed
8. Impeller for cleaning and maintenance
