Overview

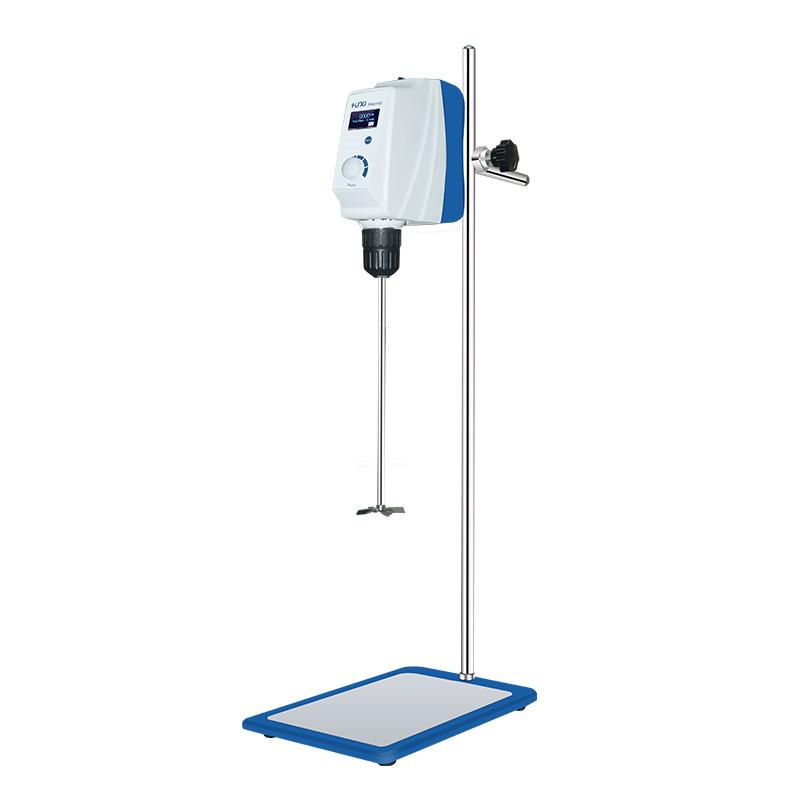

HUXI RWD50 overhead powerbasic stirrer is a laboratory equipment suitable for mixing medium and high viscosity liquids, capable of high load, long-term continuous work and outstanding performance. The product has automatic protection function for overload and abnormal conditions to ensure laboratory safety, and is widely used in chemical synthesis, physical and chemical analysis, petrochemical, cosmetics, health products, food, biotechnology and other fields.
Features
1. The speed range is 30-2200rpm, which can be constant speed, high and low speed is precisely controllable, and digital feedback guarantees constant speed and torque.
2. The speed and time have coarse and fine adjustment functions, and can be fine-tuned during operation.
3. Adopt maintenance-free brushless DC brushless motor for long-term continuous and stable operation.
4. Safety protection includes overload, short circuit, and abnormal speed to automatically cut off the circuit and alarm.
5. Stable start to effectively prevent sample overflow.
6. The closed housing prevents liquid from splashing in, ensuring safe operation.
7. Stirringrod penetration hole design, easy to replace, no need to move Stir head up and down.
8. You can connect to an external PC through the RS232 interface to control the instrument and record data.
9. Adopt imported self-locking chuck, which is convenient and fast to operate and prevent the stirringrod from loosening.
10. LCD display setting and actual speed, real-time monitoring.
11. Automatically adjust the torque according to the sample viscosity, and the speed can be fine-tuned during operation.
Principle
The overhead powerbasic stirrer uses a numerical control stepless governor to achieve precise control of high and low speeds through digital display of operating speed. It is driven by a maintenance-free brushless DC brushless motor combined with a mechanical deceleration structure to provide stable torque output and ensure efficient mixing of medium and high viscosity liquids.
Applications
Chemical synthesis, physical and chemical analysis, petrochemical, cosmetics, health products, food, biotechnology, scientific research, Universities & colleges, chemical industry, units
Steps
Connect the power supply to ensure that the rated voltage is 100 to 240VAC.
2. Fix the stirringrod through the self-locking chuck, and the clamping range is φ 0.5~ 10mm.
3. Use coarse and fine adjustment to set the speed and time, and the LCD displays the set value and the actual value.
4. Start the equipment and run smoothly to prevent sample overflow.
5. During operation, the speed can be fine-tuned according to demand or the data can be recorded by connecting to the PC through the RS232 interface.
6. Stir, turn off the power and clean the equipment.
Notice
● Ensure Ambient Temperature in the range of 5~ 40 ℃, relative humidity ≤ 80%.
To avoid overloading, the equipment has an automatic protection function, but it needs to be checked regularly.
● Use non-slip pads and safety buckles to prevent equipment from slipping or accidentally.
● When replacing the stirringrod, there is no need to move the Stir head up and down, and pay attention to the locking of the chuck.
Periodically inspect the enclosure to prevent liquid from splashing into the corrosive circuit.
In case of a malfunction display, the equipment will automatically stop, and the cause needs to be checked in time.
