HUXI HX-10F Mini thermostatic metal Bath Air-Cooled handheld car power supply

Name: HUXI HX-10F Mini thermostatic metal Bath Air-Cooled handheld car power supply
Brand: HuXi
SKU: NB023120
Price: 300.0 USD
Availability: InStock

$ 300.00Ex works

The volume is only the size of the palm, the weight is less than 1 kg, and it supports 12V DC power input. Temperature control accuracy up to +/- 0.3 ° C, equipped with 5-stage programmable temperature control, built-in high-speed fan for fast cooling, easy module replacement and cleaning.

Model

Get Quote

Category : Water Bath

Brand : HuXi

SKU : NB023120

Service :The delivery and service By NBCLab.Com

Overview

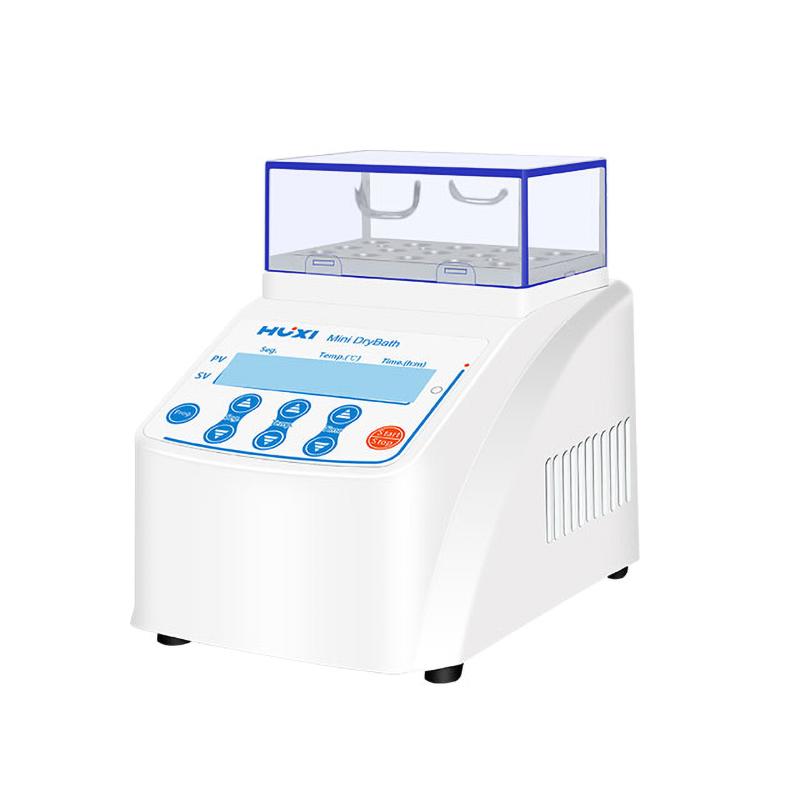

The HX-10F mini thermostatic metal bath is an Air-Cooled handheld thermostatic metal bath of the HUXI brand, which is controlled by a microcomputer and supports on-board power supply. The product is small in size, light in weight and easy to move, making it especially suitable for heating applications in the field, market or crowded experimental environment.

Features

1. Instant temperature display and time decreasing display 2. Very small size, only palm size, weight less than 1 kg 3.12V DC power input, built-in over-temperature protection, support for on-board power supply 4. Automatic fault detection and buzzer alarm function 5. Temperature deviation calibrating function 6. Convenient module replacement, easy to clean and disinfect 7. Unique temperature control technology, 5-stage programming, can be opened and closed independently or combined flexibly 8. Parameter setting data and current data display function 9. Air-Cooled type is equipped with a high-speed DC fan for rapid cooling

Principle

The product precisely adjusts the temperature through a microcomputer control system, and uses unique temperature control technology and 5-stage programming to achieve thermostatic heating. The Air-Cooled type is quickly cooled by a high-speed DC fan to ensure the accuracy and efficiency of temperature control.

Applications

Field application, market application, crowded experimental environment

standard module
1.5/2 ml * 15 well
Temperature Range
Room temperature + 5 ℃ - 100℃
heating rate
≤ 15min (from 20 ° C to 100 ° C)
Temperature control accuracy
±0.3℃
Temperature stability
±0.3℃@40℃
Temperature stability
±0.3℃@100℃
Temperature display accuracy
0.1℃
Timer Range
0-100H or continuous (setting time to 0 means continuous operation)
Temperature Range
0~100℃
power
50W
cooling method
Fast Air-Cooled
Product weight
≤1kg
Size
150x100x135mm
programming function
There are 5 groups
Power supply
AC: 100-240V switching power supply converts 12V DC, supports vehicle DC-12V power supply
Optional module
M1，M2，M3，M4，M5，M6，M7，M8

[Q] Is the price listed on the website the final cost for overseas purchases?

[A] No, it isn't. This is the ex-factory price of the product in the Chinese Mainland. In addition to this price, buyers from different countries need to account for additional costs such as shipping fees, tariffs, and others. For specific regional quotes, please consult our customer service or fill out a quotation form.

[Q] What is the specific process for purchasing the product?

[A] First, please click on the quotation form on the website and fill in detailed information. Our customer service personnel will then send you a quotation based on your specific country and region, confirming payment and delivery methods. Following this, we proceed with contract signing, payment, and shipment. You can then await delivery.

[Q] What should I do if the instrument I purchase needs repair?

[A] After-sales repair for overseas instruments is an unavoidable issue. Our repair terms stipulate that the sender is responsible for the shipping and insurance costs incurred for the repair. Repairs within the warranty period are free, while repair costs beyond the warranty period are determined based on the actual situation.
