Overview

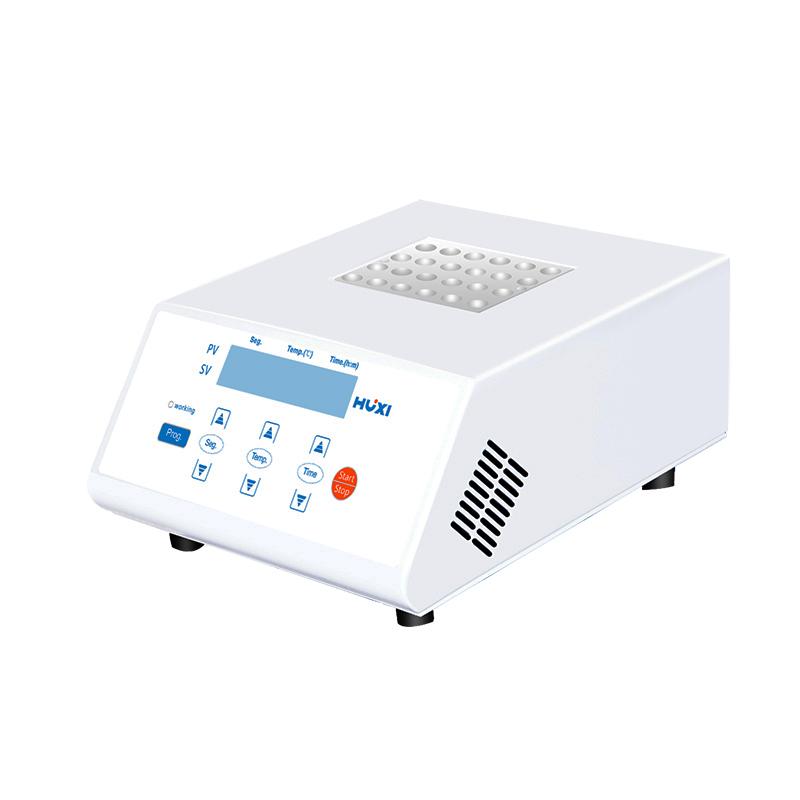

HUXI HX-20G high temperature thermostatic metal bath is a thermostatic metal bath product using microcomputer control and semiconductor refrigeration technology. The instrument can be configured with a variety of modules and is widely used in the preservation of samples, the preservation and reaction of various enzymes, the denaturation of nucleic acids and proteins, PCR reactions, predenaturation of Electrophoresis and serum coagulation.
Features
1. LCD liquid crystal display, man-machine friendly touch interface
2. Microcomputer temperature controller, accurate and reliable temperature control, while displaying real-time temperature and thermostatic countdown room
3. Powerful programmable function, supports up to 5 temperature points of temperature and thermostatic time setting and continuous operation
4. Metal modules are used to protect samples from contamination
5. Metal modules can be easily replaced for easy cleaning and disinfection
6. Temperature deviation calibrating function
7. Built-in over-temperature protection device
8. Automatic fault detection and buzzer alarm function
9. Appearance is exquisite, blue LCD display instant parameter information, touch operation interface
Principle
The product uses microcomputer control and semiconductor refrigeration technology to heat through a heated film for precise temperature control. The microcomputer temperature controller ensures accurate and reliable temperature control, while displaying real-time temperature and thermostatic countdown rooms.
Applications
Sample preservation, storage and reaction of various enzymes, denaturation of nucleic acids and proteins, PCR reaction, predenaturation of Electrophoresis, serum coagulation
Steps
1. Connect the power supply and turn it on.
2. Select the appropriate module as required
3. Set temperature parameters through the touch interface
4. Set the thermostatic time (1min~ 100h)
5. For multi-point operation, temperature and thermostatic time can be set up to 5 temperature points
6. Start the device and start working
7. The device runs automatically and displays real-time temperature and countdown room
8. The equipment automatically stops or alarms after the work is completed
Notice
• Power frequency matching (AC 220V/120V, 50/60Hz)
• Do not exceed the maximum Temperature range (RT + 5~ 100 ℃)
• Regularly clean and disinfect metal modules
• The equipment has a built-in over-temperature protection device, please stop using it immediately in case of abnormality
• Note that the fuse specification is 250V 3AShould 5 × 20
• The equipment has automatic fault detection function, please check it in time if it alarms
• Make sure the device is powered off when replacing the module
