Overview

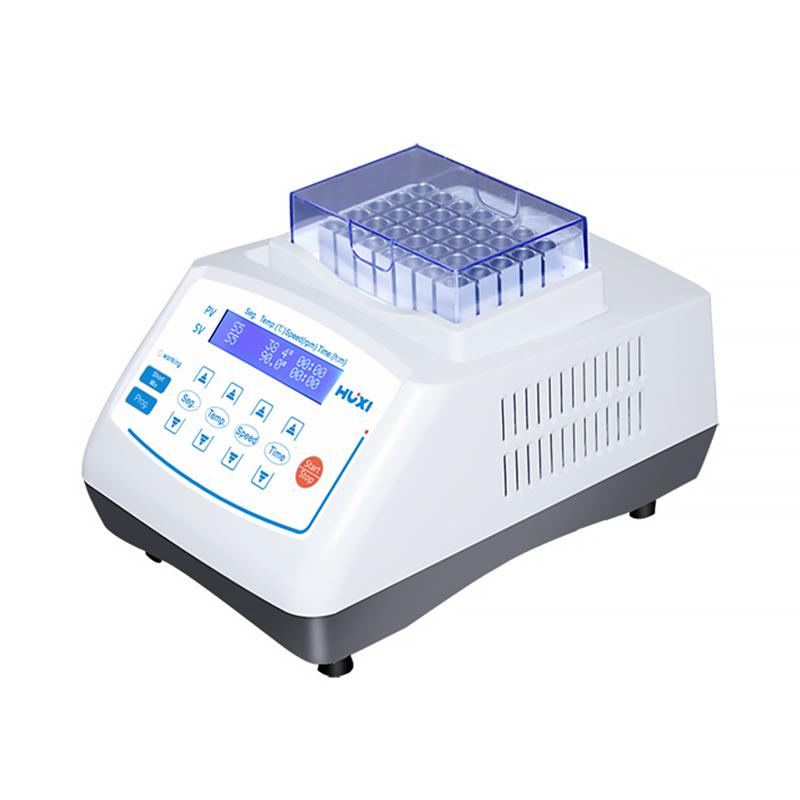

HUXI HX-20TL thermostatic Mixer is an intelligent laboratory device that integrates three functions: mixing, oscillation, and incubate heating. It can mix various laboratory consumables such as microtubes, PCR plates, deep well plates, and microwell plates, and has the function of heating and incubating various modules.
Features
1. LCD liquid crystal display, man-machine friendly touch interface
2. Power-off recovery function, power-off recovery can automatically resume operation according to the original setting program
3. The microprocessor controls the temperature, speed and time, with good temperature control linearity, accurate oscillation speed, and small fluctuations
4. DC brushless motor drive, long life, maintenance-free
5. Metal modules are used to protect samples from contamination
6. Metal modules can be easily replaced for easy cleaning and disinfection
7. With timing function, 0~ 100 hours to set the foster time arbitrarily
8. Temperature deviation calibrating function; built-in over-temperature protection device
9. Automatic fault detection and buzzer alarm function
10. Appearance is exquisite, blue LCD display instant parameter information, touch operation interface
Principle
The thermostatic Mixer precisely controls the temperature, speed and time parameters through a microprocessor, and uses a DC brushless motor to drive the horizontal rotation oscillation. At the same time, the metal module is heated and incubated to realize the thermostatic mixing of the sample.
Applications
Sample Handling, Molecular Biology, Cell Fostering, PCR
Standards
Laboratory equipment safety standards
Steps
1. Select the adapter module and install it.
2. Set the required temperature parameters
3. Set the speed range of 200~ 1800rpm
4. Set the timing time from 0 to 100 hours
5. Start the device running
6. Monitor operating parameters
7. Remove the sample after completing the procedure
Notice
● Ensure Ambient Temperature Meets Requirements Before Use
● Power frequency matching AC220V/120V, 50/60Hz
Regularly clean metal modules to prevent contamination
Do not open the device at will during operation
● Pay attention to the working status of the over-temperature protection device
● Long-term operation requires monitoring of equipment status
Make sure the device is powered off when replacing the module
