3NH YG60S Glossmeter 60 ° Economic Glossiness Meter High-end Quality Management Software

Name: 3NH YG60S Glossmeter 60 ° Economic Glossiness Meter High-end Quality Management Software
Brand: 3NH
SKU: NB023227
Price: 167.0 USD
Availability: InStock

$ 167.00Ex works

With 60 ° Measurement Angles and 9 * 15mm Measuring Area, the repeatability is up to +/- 1GU, with automatic check and correction standard board function and 30-second automatic shutdown design, which meets the requirements of JJG696 secondary working Glossmeter.

Model

Get Quote

Category : Gloss Meter

Brand : 3NH

SKU : NB023227

Service :The delivery and service By NBCLab.Com

Overview

YG60S 60 ° economical Glossiness Meter is a gloss measurement instrument designed and manufactured with reference to international standard ISO2813 and Chinese national standard GB/T9754, equipped with high-end quality management software, to meet the requirements of JJG696 secondary work Glossiness Meter.

Features

1. Aesthetic surface design is closely integrated with ergonomics 2. With the function of automatically checking and correcting the standard board 3. Meet JJG696 secondary work glossmeter requirements 4. With automatic shutdown function 5. Comply with standards ISO2813, ASTMD523, GB/T9754

Principle

The YG60S Glossiness Meter uses 60 ° Measurement Angles to quantitatively analyze the surface gloss of the sample through Optical inspection measurement principle. The Measuring Area is 9 * 15mm, the measurement range is 0~ 200GU, and the Graduation is 1GU.

Applications

Paints inks, paints, paper printing, plastic electronics, furniture, Pottery and porcelain, Eletroplating, Hardware, Marble

Standards

ISO2813、ASTMD523、GB/T9754、JJG696

Steps

1. Power on the instrument 2. Manual calibrating 3. Align the measurement head to the surface of the sample to be tested 4. Press the measurement button for measurement 5. Read the gloss value on the display

Notice

• operation temperature range is 0~ 40 ℃ • Storage temperature range -20~ 50 ℃ • relative humidity should be less than 85% RH, no condensation • Powered by AA alkaline batteries or NiMH rechargeable batteries • Make sure the standard board is clean before measurement • Avoid use in strong electromagnetic interference environments

Measurement Angles
60°
Measuring Area
9*15mm
measurement Range
0~200GU
Graduation
1 GU
characteristic
Can be used for paints inks, coatings, paper printing, plastic electronics, furniture, Pottery and porcelain, Eletroplating, Hardware, marble and other industries gloss measurement and mass inspection
measurement mode
basic model
Measurement time
0.5 second
Sexual repeability
0~100GU:±1GU ; 100~200GU:±1%GU
accuracy
Meet JJG 696 secondary glossmeter requirements
Automatic shutdown time
30 seconds
calibrate
Manual calibrating
language
Simplified Chinese, English, Traditional Chinese
Store data
without
display screen
2.3 inch black and white display
dimensions
160*52*84mm
weight
Approx. 300 g (including calibration box and battery)
power supply

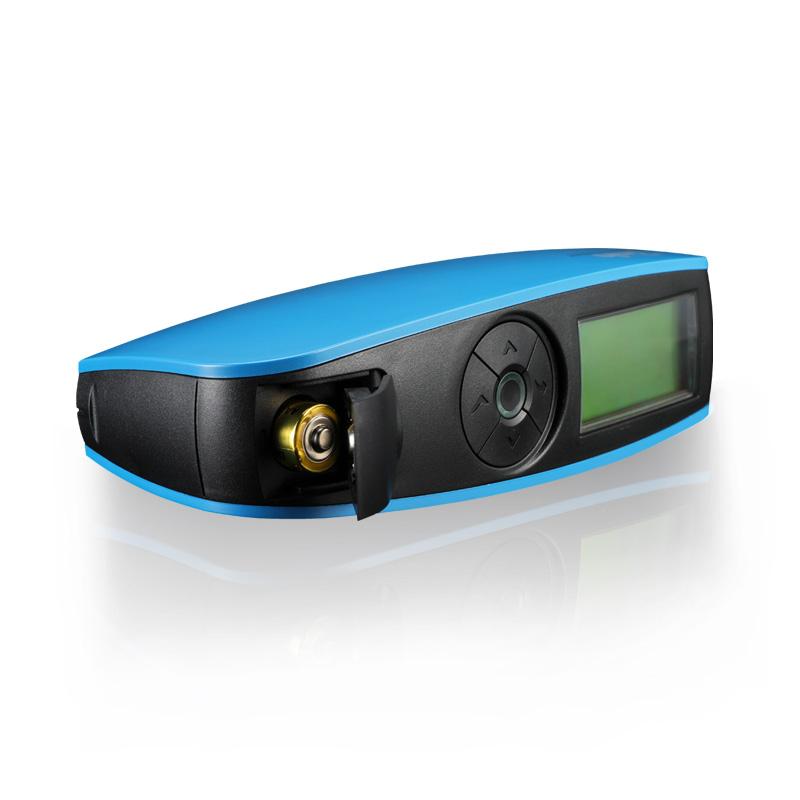

1 AA alkaline battery or nickel-metal hydride rechargeable battery, can be measured more than 10,000 times
data interface
USB power only
PC software
without
Operating temperature Range
0~40℃ (32~104℉)
Storage temperature Range
-20~50℃ (-4~122℉)
Humidity
Less than 85% RH, no condensation

[Q] Which model should Ichoose formeasuring paint gloss?

Recommend YG60S, specifically designed for paint and ink, with a measuring angle of 60 degrees, a range of 0–200 GU, simple operation, and compliance with industry standards.

[Q] Can this instrument measure the gloss of paper prints?

Of course, the YG60S is commonly used in the paper printing industry. Its spot size is 9x15mm, making it suitable for small-area measurements, with accurate and reliable results.

[Q] Is this model available with data storage and software?

This is the economical model, without storage and software, but with simple manual calibration and long battery life, suitable for fast on-site testing with low requirements.
