Overview

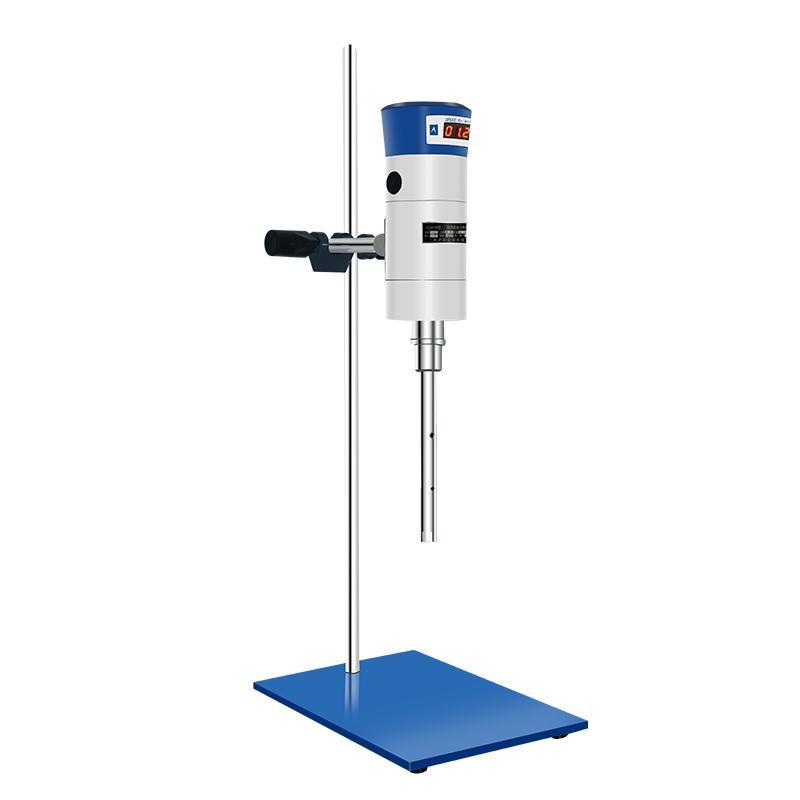

The HUXI FJ200-SH high-speed dispersed Homogenizer adopts a compact series-excited micro-high-speed motor to drive, which is suitable for further dispersing and homogenizing the pulverized experimental materials in the liquid medium in the laboratory. The machine is composed of a high-density die-casting aluminum alloy driving host, a good stainless steel refined dispersed homogeneous working head and a speed-regulating seat. It has the characteristics of high host driving speed, large output power, convenient loading and unloading of the working head, and easy experimental operation.
Features
1. Using a series-excited micro-motor with high output power and compact structure, the design is safe and reliable
2. All parts of the working head in contact with the material are made of good stainless steel, with good corrosion resistance
3. The working head adopts coupling to connect with the drive motor, which is easy and flexible to disassemble and assemble
4. The speed control base adopts stepless governor, which is convenient for speed regulation and stable operation
5. High host drive speed and high output power
6. The working head is easy to load and unload, and the experimental operation is simple
Principle
The device is driven by a series-excited micro-high-speed motor to drive the stainless steel working head to swirl/spin at high speed in the liquid medium to realize the dispersion and homogenization of the experimental materials. The speed control base adopts a stepless governor, which can adjust the speed according to the experimental needs to ensure stable operation.
Applications
Laboratory material dispersion homogeneity
Steps
1. Install the appropriate specification of the working head
2. Connect the working head connector to the drive motor
3. Adjust the speed control knob to set the required speed
4. Immerse the working head in the liquid to be treated
5. Turn on the switch for decentralized homogenization operation
6. Turn off the power supply after the operation is completed, and remove the working head for cleaning.
Notice
• Power frequency AC 220V 50Hz before use
• The height of the working head entering the liquid must meet the specifications
• The processing capacity should be within the range of 30-1500ml
• Duty Cycle is intermittent to avoid long-term continuous use
• The operating temperature shall not exceed 120 ° C
• Regularly check the condition of the brush holder and bearings
• Pay attention to safety protection during operation
