Overview

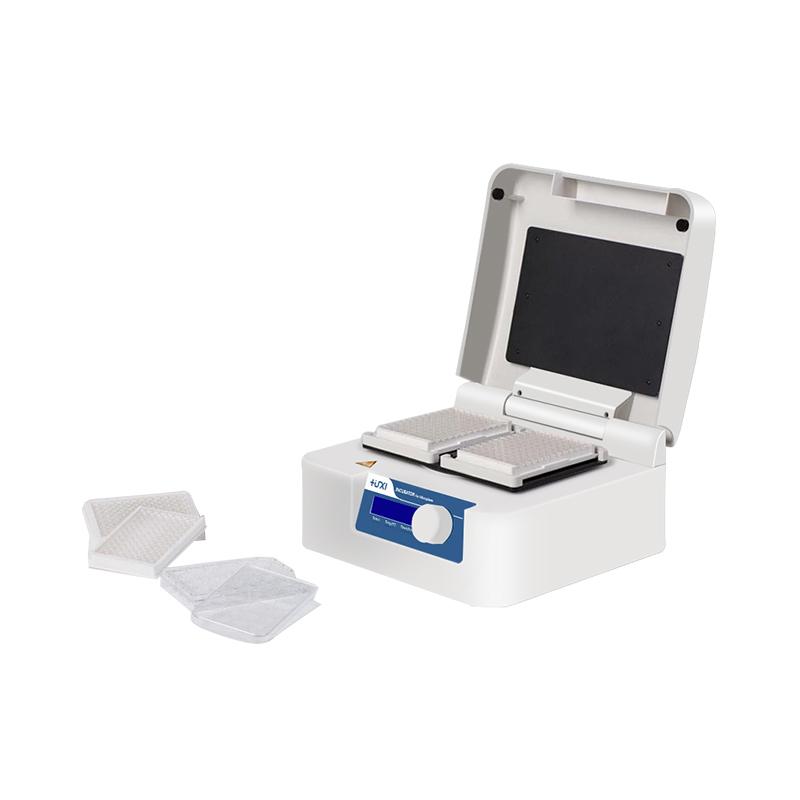

HW-200G is a microplate incubator and thermostatic Shaker designed and manufactured based on microprocessing technology and PID control mode. It has the characteristics of small size, light weight, no pollution, LCD display of temperature and time, beautiful appearance, simple operation, etc. It is mainly used for enzyme label plate (96-well/384-well plate) and cell foster plate (24-well, 48-well, 96-well plate, etc.) samples at appropriate temperature for cell foster incubation.
Features
1. The foster time can be arbitrarily set within the range of 0 to 100 hours, and a prompt tone will be automatically issued after the timing is over
2. With power-off recovery function, when the external power supply is powered off and calls again, the device can automatically resume operation according to the original setting program
3. Adopt high-quality switching power supply, the whole machine runs stably and reliably for a long time
4. LCD real-time display of system operating status and parameter values
5. Adopt one-button knob operation, easy to use
6. Microprocessor control, good temperature control linearity, small fluctuation
7.Double-decked heating system to ensure thermostatic foster stability
Principle
The HW-200G uses microprocessor technology and PID control mode to achieve precise temperature control through double-decked heating system to ensure thermostatic foster stability. The device displays the running status and parameters in real time through LCD, and has a power-off recovery function, which can automatically resume the original setting program operation after the power supply is interrupted.
Applications
Enzyme plate incubating, cell fostering plate incubating
Steps
1. Set foster time (0~ 100 hours range)
2. Set temperature parameters
3. Start the device to incubate
4. After the timing ends, the device automatically sends out a prompt tone
Notice
• Device input voltage is AC220V/50~ 60HZ
• Temperature range is room temperature + 5 ℃~ 80 ℃
• Sample capacity is 2 enzyme plates or deep well plates
• Heating time should not exceed 10 minutes (from 25 ° C to 80 ° C)
• The weight of the whole machine is 4.0kg
