Overview

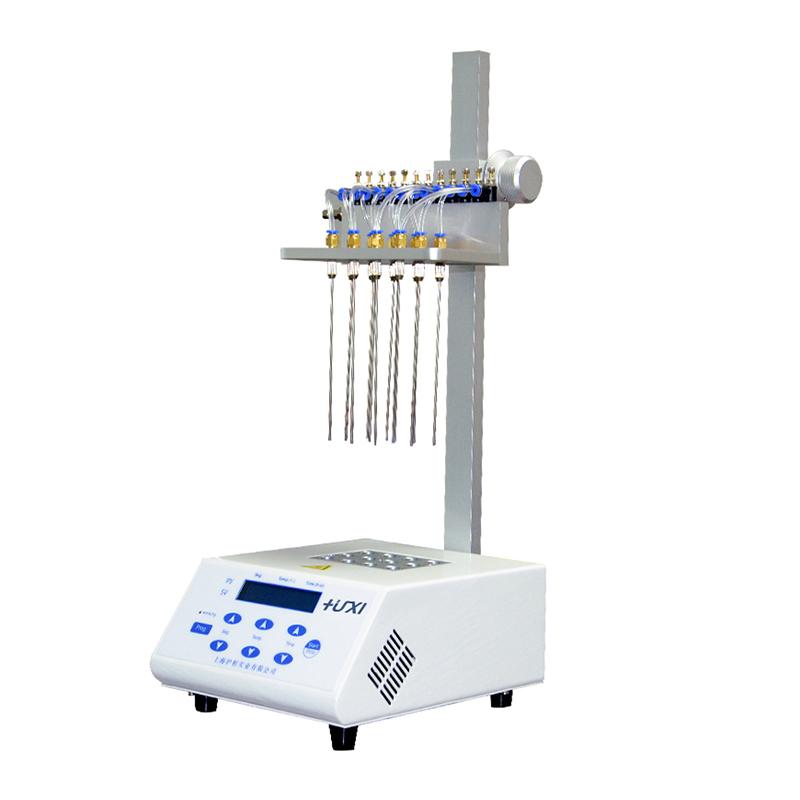

HUXI MD200-2 dry Nitrogen blowing instrument is mainly used for condensing prepative of large quantities of samples, such as sample preparation in screening, hormone analysis, liquid phase, gas phase and mass spectrometry analysis. The instrument realizes rapid condensation of samples by nitrogen purge and heating, which is efficient and time-saving, and can process multiple samples simultaneously.
Features
Each purge needle can be independently controlled, with 12 airway control switches, no waste of gas
2. The heater quickly and efficiently heats the sample to the evaporation temperature, promoting the rapid evaporation of the solution
3. The entire working system is composed of adjustable gas chambers and heaters
4. The position of the air needle in the air cavity can be changed, suitable for different testtubes, the standard air needle length is 150mm
5. The height of the gas chamber can be adjusted according to the height of the solvent liquid level, and can be used in the ventilated cabinet
6. Automatic fault detection and alarm function
7. Standard with air cavity and special adjustable bracket
8. Built-in over-temperature protection device
9. Instant temperature display, time decreasing display
Principle
By blowing nitrogen into the surface of the heated sample, the solvent in the sample is rapidly evaporated and separated, so as to achieve the purpose of oxygen-free condensation of the sample and keep the sample purer.
Applications
Sample preparation for screening, hormone analysis, liquid phase analysis, gas phase analysis, mass spectrometry
Steps
1. Adjust the air needle position according to the testtube type
2. Adjust the height of the gas chamber according to the height of the solvent liquid level
3. Set the required temperature and time parameters
4. Turn on the nitrogen supply and adjust the flow rate
5. Start the heating and purging program
6. Monitor condensing process until completion
