Overview

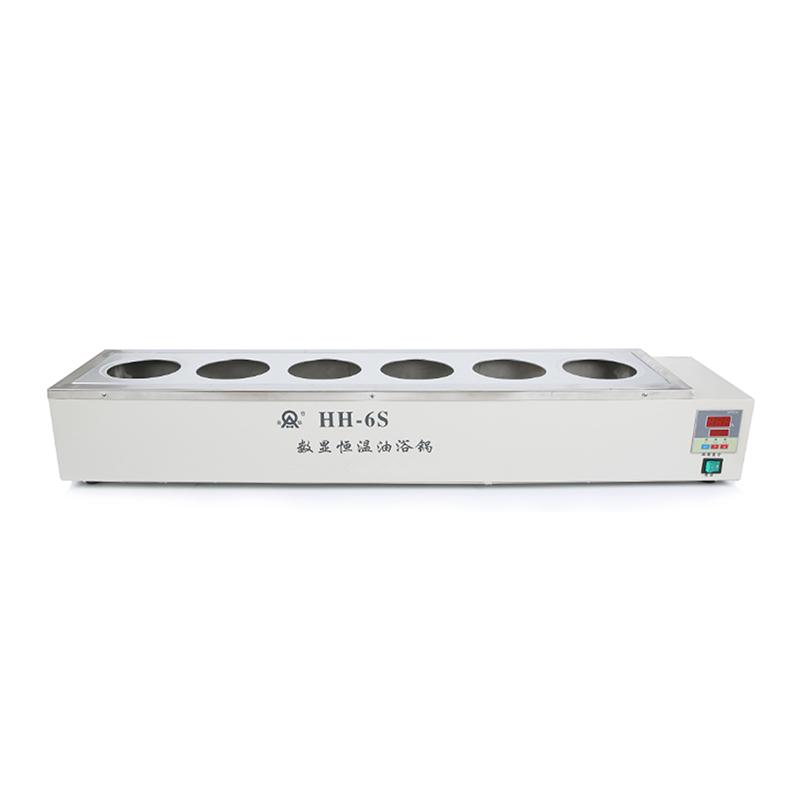

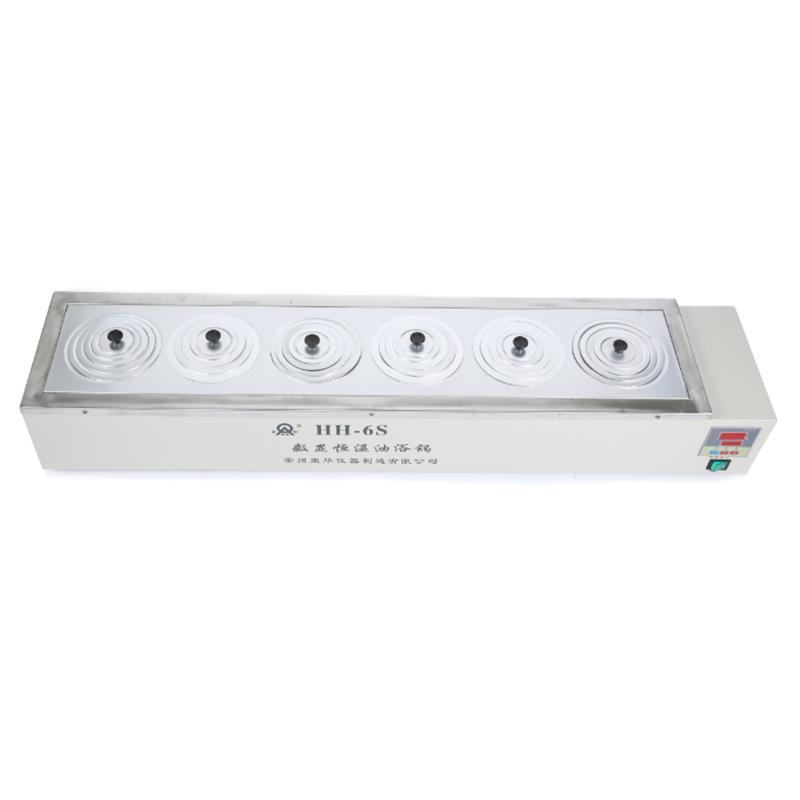

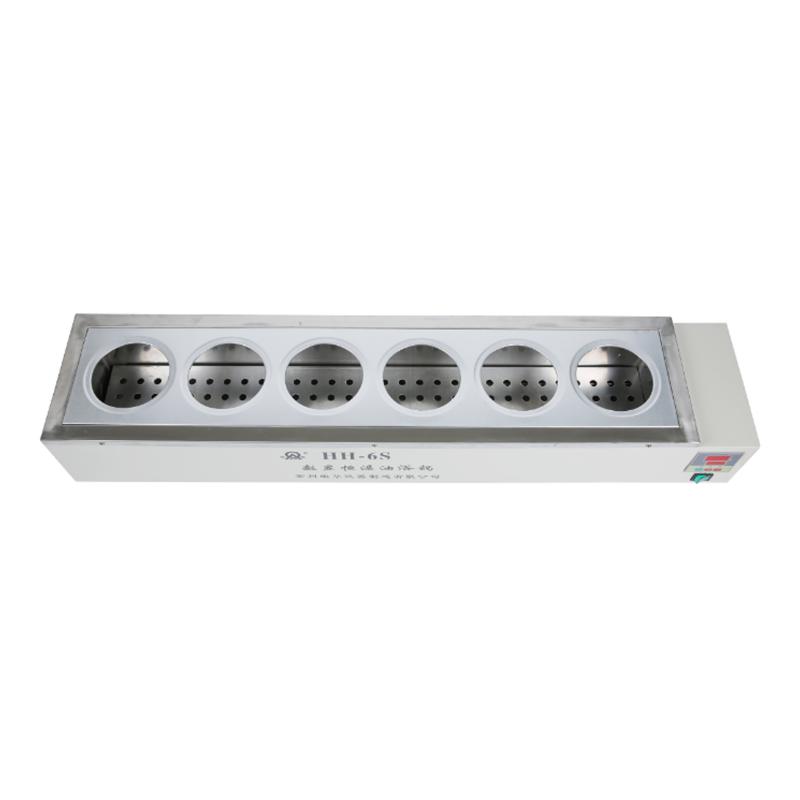

Digital thermostatic oil bath system sink type, choose imported good stainless steel plate to make molding, the shell is a good thin plate and spray, with high temperature resistance, corrosion resistance, temperature control using intelligent integrated circuit, LED display, intuitive and accurate reading, widely used in distillation, drying, condensing and impregnation chemicals or biological products. Model HH-6S (single) Temperature range is RT +~ 300 ℃, Tank volume 18L, Tank size 910 * 160 * 130mm, hole number six hole single row, total power 1500W, dimensions 91 * 16 * 13cm.
Features
1. Made of imported high-quality stainless steel, it is resistant to high temperature and corrosion.
2. The shell is a good thin plate and sprayed with plastic.
3. The temperature control adopts intelligent integrated circuit and LED display, and the reading is intuitive and accurate.
4. Tank volume is large, suitable for a variety of experimental operations.
Principle
The digital thermostatic oil bath controls the temperature through an intelligent integrated circuit, and uses LED to display the real-time temperature to ensure intuitive and accurate readings. Its sink design and heating element can maintain thermostatic within the set range, suitable for distillation, drying, condensing and dipping processes.
Applications
Distillation, drying, condensing, impregnation of chemicals or biological products
Steps
1. Place the oil bath in a smooth and ventilated place;
2. Add an appropriate amount of oil to the Tank;
3. Connect the power supply and turn on the device;
4. Set the required temperature through the intelligent integrated circuit.
5. Monitor the LED display temperature to ensure thermostatic operation;
6. Turn off the power after use and clean the equipment.
Notice
Make sure the equipment is placed in a smooth and ventilated place before use.
• Avoid spillage when adding oil;
• Monitor the temperature display during operation to prevent overheating;
• Turn off the power supply and clean the equipment in time after use;
• Avoid use in humid or flammable environments.
