Overview

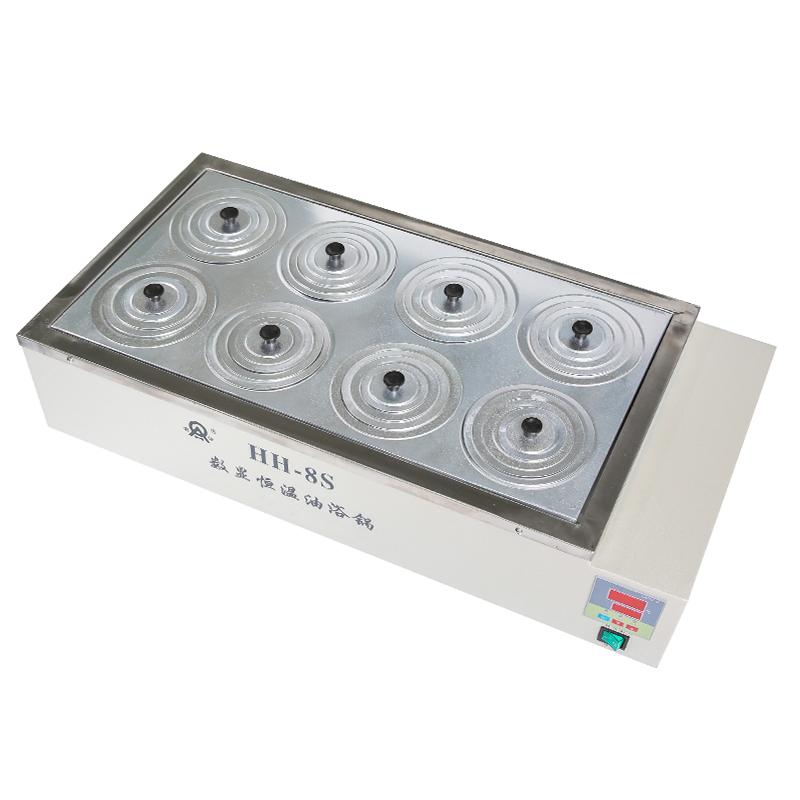

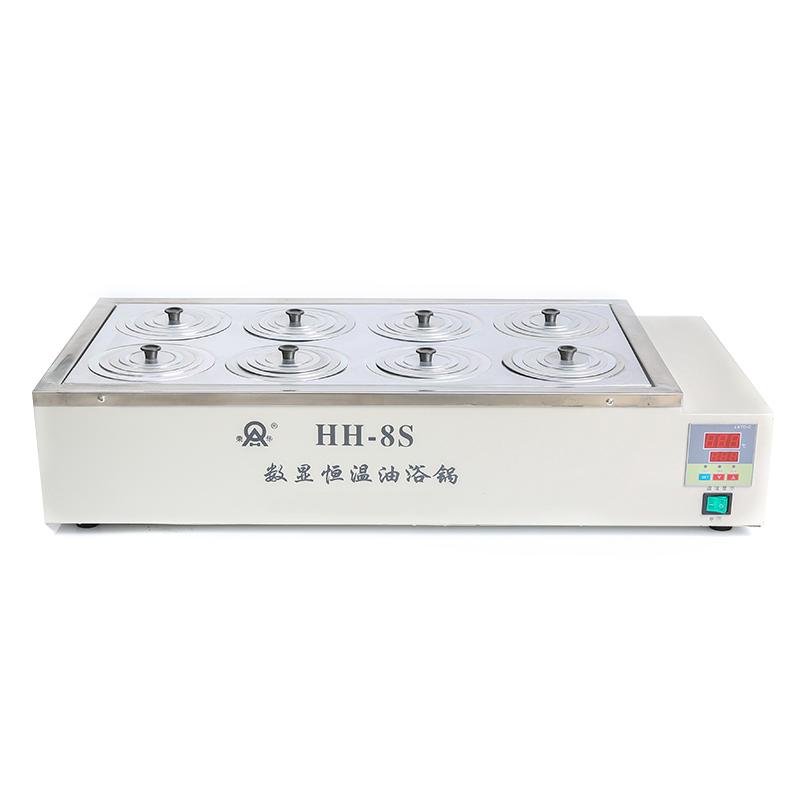

Digital thermostatic oil bath system sink type, choose imported good stainless steel plate to make molding, the shell is a good thin plate and spray, with high temperature resistance, corrosion resistance, temperature control using intelligent integrated circuit, LED display, intuitive and accurate reading, widely used in distillation, drying, condensing and impregnation chemicals or biological products. Model HH-8S Temperature range is RT +~ 300 ℃, Tank volume 23L, Tank size 610 * 300 * 130mm, hole number eight holes double row, total power 2000W, dimensions 80 * 39 * 19cm.
Features
1. Made of imported high-quality stainless steel plate, it is resistant to high temperature and corrosion
2. The shell is a good sheet and sprayed with plastic
3. Intelligent integrated circuit temperature control system
4. LED digital display, intuitive and accurate reading

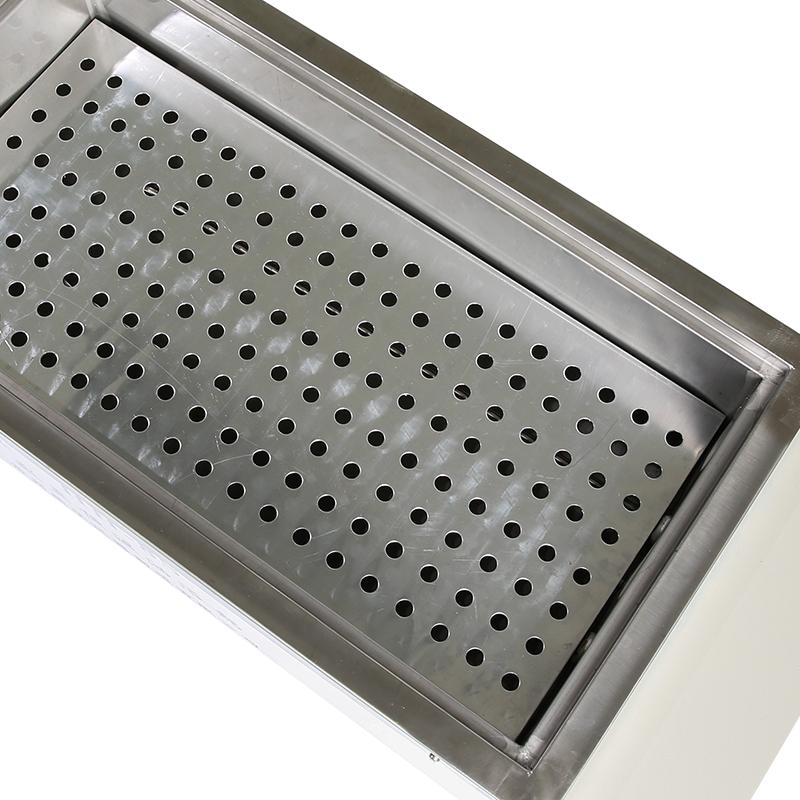

5. Sink design, stable operation
Principle

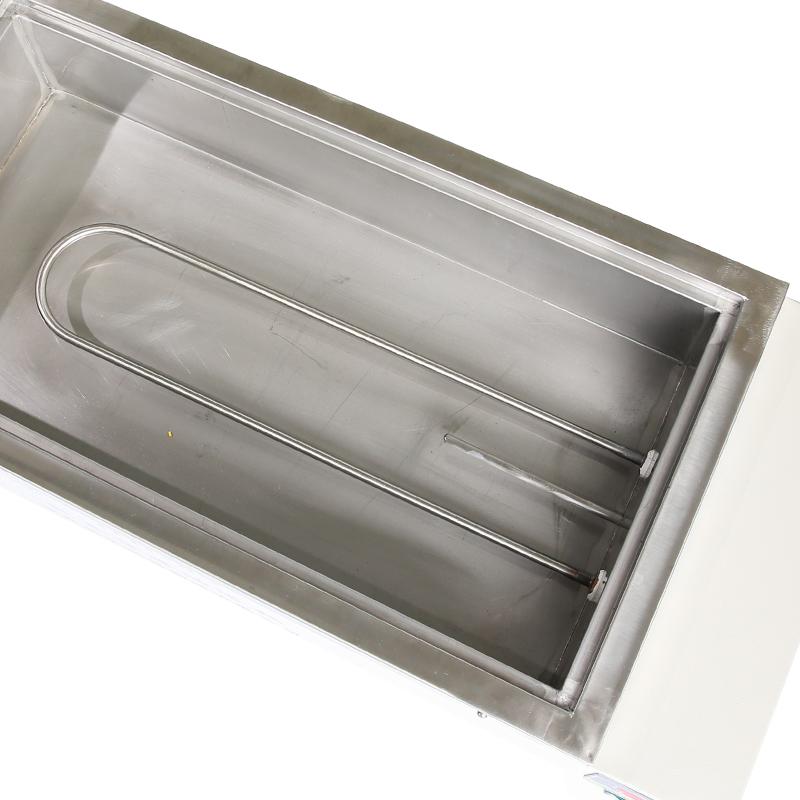

Through the intelligent integrated circuit control system to precisely adjust the heating power, the constant control of the temperature in the oil bath is realized, and the LED display screen displays the current temperature in real time to ensure that the temperature is stable within the set range during the experiment.
Applications
Distillation, drying, condensing, impregnation of chemicals, biological products
Steps
1. Place the oil bath on a stable work table
2. Add an appropriate amount of heat transfer oil to the Tank
3. Turn on the power supply and turn on the power switch
4. Set the required temperature through the control panel
5. Wait for the temperature to reach the set value and start the experimental operation
6. Turn off the power after use, and clean it after chilling down
Notice
• Make sure the equipment is well grounded before use
• Do not touch the heating part when working to prevent burns
• Regularly check the heat transfer oil level and replenish it in time
• Please cut off the power supply when cleaning to avoid water ingress
• When not in use for a long time, the heat transfer oil should be emptied and properly stored
