Overview

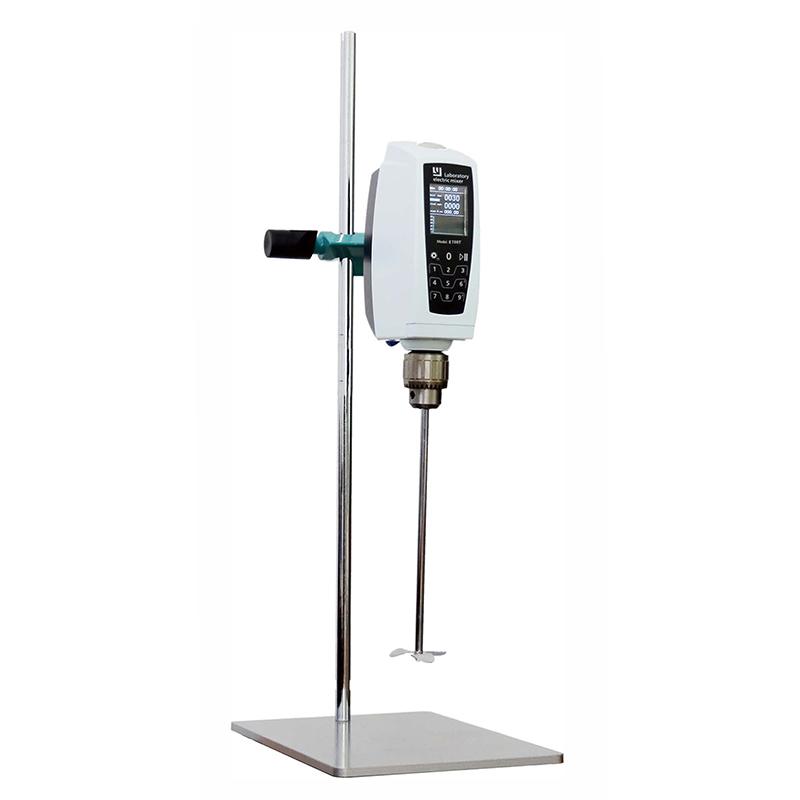

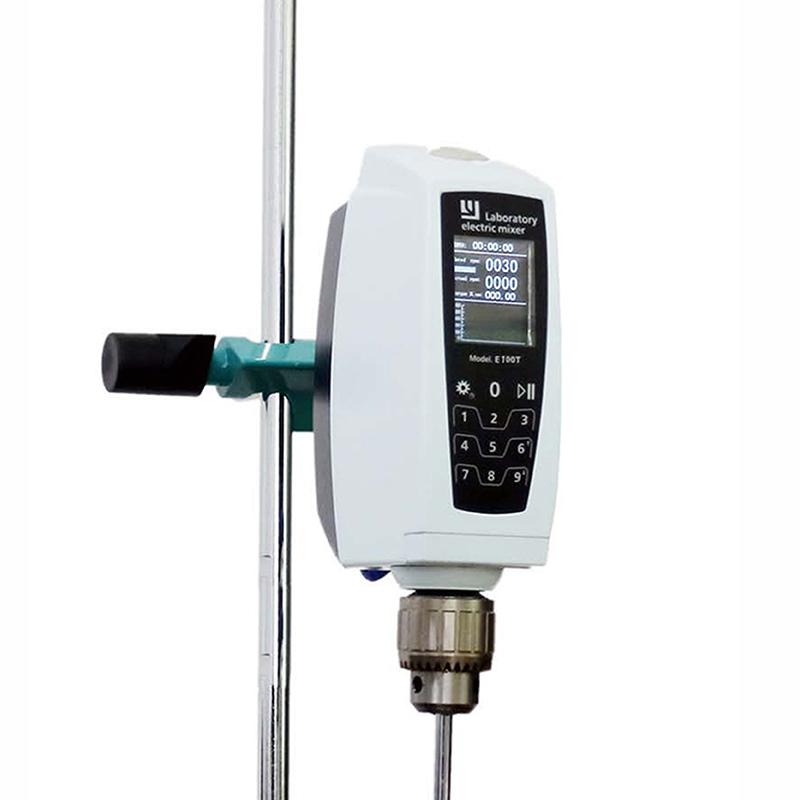

The LANYU E100T Brushless DC Constant Speed Stirrer is driven by a brushless DC motor, equipped with a high-definition TFT LCD screen and capacitive touch buttons, and the control is simple and fast. The product has the function of torque display, the working voltage is universal around the world, and supports continuous Operating Mode.
Features
1. Driven by brushless DC motor
2. High-definition TFT LCD display
3. Capacitive touch button speed control
4. With torque display function
5. Worldwide working voltage (AC 100~ 240V)
6. Speed dynamic detection function
7. Speed memory function
8. Overload protection safety function
9. Stepless speed regulation, speed range 20~ 2000rpm
10. Timer Range 1~ 6000min
Principle
The E100T drives the Impeller swirl/spin through a brushless DC motor, and uses a capacitive touch keyboard for operation control to realize stepless speed regulation. The device displays the speed and torque parameters in real time through the TFT LCD screen, and has dynamic detection and memory functions to ensure the stability and accuracy of the Stir process.
Applications
Laboratory Stir, Chemical Stir, Food processing Stir, Pharmaceutical Stir, Scientific Research Experiment
Standards
Duty Cycle S1 (Continuous)
Steps
1. Connect the power supply (AC 100~ 240V)
2. Installation Impeller (clamping range 2~ 13mm)
3. Set the speed by capacitive touch button (20~ 2000rpm)
4. Set the timing time (1~ 6000min)
5. Stir up the process
6. Monitor operating parameters through TFT LCD screen
7. Turn off the power after finishing Stir
Notice
• Ambient Temperature must not exceed 40 ℃
• The relative humidity should not exceed 80%
• Stirring capacity does not exceed 20L
• Material viscosity does not exceed 100000mpa.s
• Make sure the Impeller is firmly installed before use
• Pay attention to the status of overload protection function
• Regularly check the operating status of the equipment
