LANYU E200T Brushless DC Constant Speed Stirrer Touchscreen Torque Display Stepless Speed Regulation

Name: LANYU E200T Brushless DC Constant Speed Stirrer Touchscreen Torque Display Stepless Speed Regulation
Brand: LanYu
SKU: NB023933
Price: 724.0 USD
Availability: InStock

$ 724.00Ex works

Brushless DC motor provides 48N.cm torque, supports 30-2000rpm stepless speed regulation and 6000 minutes timing, with dynamic speed detection and overload protection functions.

Model

Get Quote

Category : Laboratory Mixer

Brand : LanYu

SKU : NB023933

Service :The delivery and service By NBCLab.Com

Overview

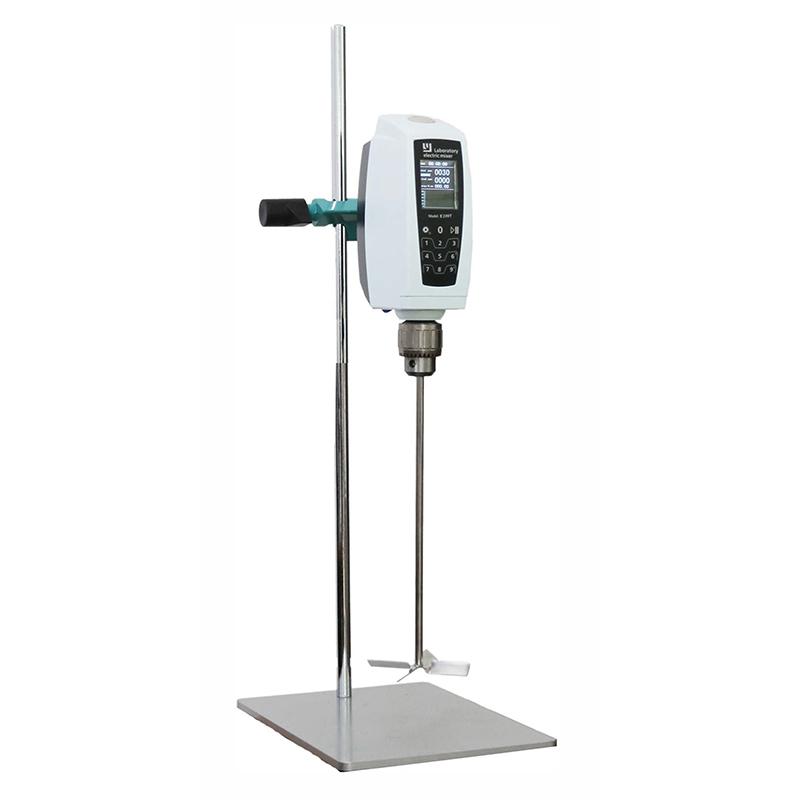

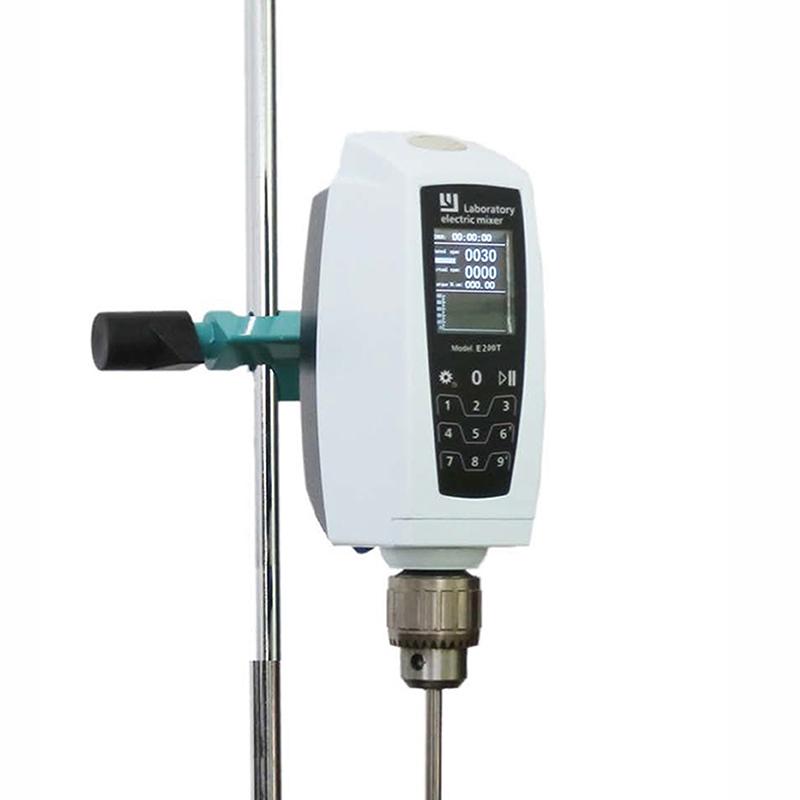

LANYU E200T Brushless DC Constant Speed Stirrer is a laboratory small Touchscreen Stirrer, with high-definition TFT LCD screen and capacitive touch button speed regulation, simple and fast control, torque display function, working voltage universal.

Features

1. High-definition TFT LCD display 2. Capacitive touch button speed control is simple and fast 3. With torque display function 4. Worldwide working voltage (AC 100~ 240V) 5. Brushless DC motor drive 6. Stepless speed regulation, speed range 30~ 2000rpm 7. Timer Range 1~ 6000min 8. Speed dynamic detection function 9. Speed memory function 10. Overload protection safety function 11. Rotary collet clamping range 2~ 13mm 12. Max Torque 80.0N.cm 13. Stirring capacity 30L 14. Maximum viscosity 100000Mpa.s

Principle

The E200T is driven by brushless DC motor and controlled by capacitive touch keyboard to achieve stepless speed regulation. The speed range is 30~ 2000rpm. It has dynamic speed detection and memory functions to ensure constant speed Stir.

Applications

laboratory

Standards

Duty Cycle S1 (Continuous)

Steps

1. Connect the power supply (AC 100~ 240V, 50/60HZ) 2. Set the speed by capacitive touch button (30~ 2000rpm) 3. Set the timing time (1~ 6000min) 4. Install Impeller (rotating chuck clamping range 2~ 13mm) 5. Stir operation 6. Monitor the speed and torque displayed on the TFT LCD screen

Notice

• Permissible Ambient Temperature ≤ 40 ℃ • Allowable relative humidity ≤ 80% • Pay attention to the overload protection function to avoid overload operation • Make sure the Impeller is properly secured to the collet • Regularly check the operating status of the equipment

Power supply
AC 100~240V
Rated frequency
50/60HZ
input power
230W
output power
200W
drive Type
DC brushless motor
Stir shaft output torque
48N cm
Stir shaft output peak torque
80.0N cm
Duty Cycle
S1 (continuous)
Operation control mode
Capacitive Touch Keyboard
Speed Range
30~2000rpm
Speed control
stepless
Timer Range
1~6000min
RPM display
TFT
Speed dynamic detection function
Yes
Speed dynamic simulation function
Yes
Speed memory function
Yes
Overload protection
Yes
Stirringrod fixing method
Quick turn chuck
Rotary collet clamping Range
2~13mm
Impeller configuration
Four Blade Spiral Impeller
Stirring capacity
30L
Maximum viscosity
100000mpa.s
Permissible Ambient Temperature
Not more than 40 ° C
Allowable relative humidity
Not more than 80%
Machine dimensions
250*350*835mm
Machine weight
10kg
