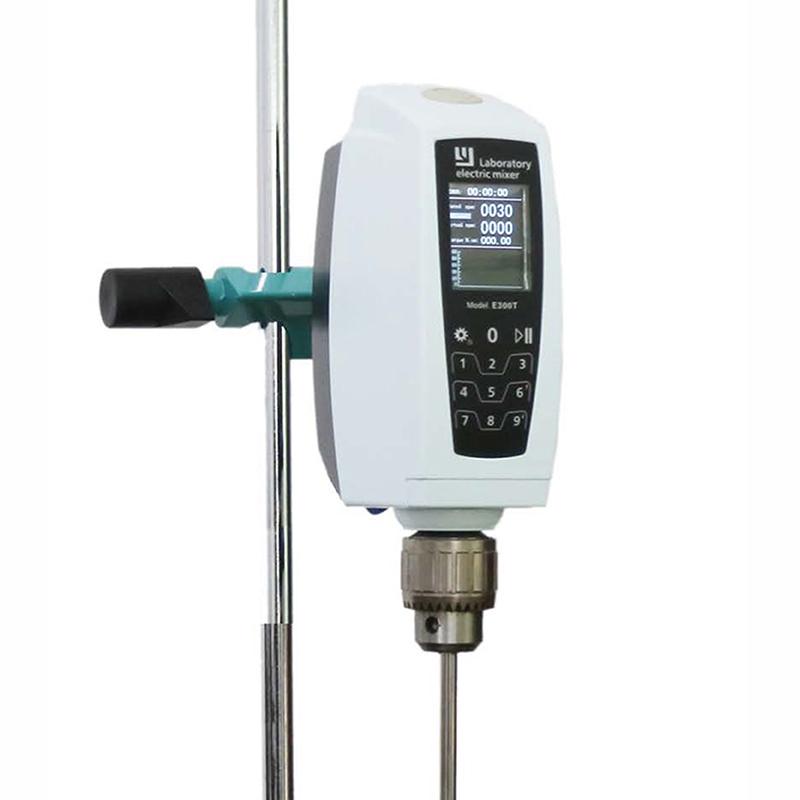

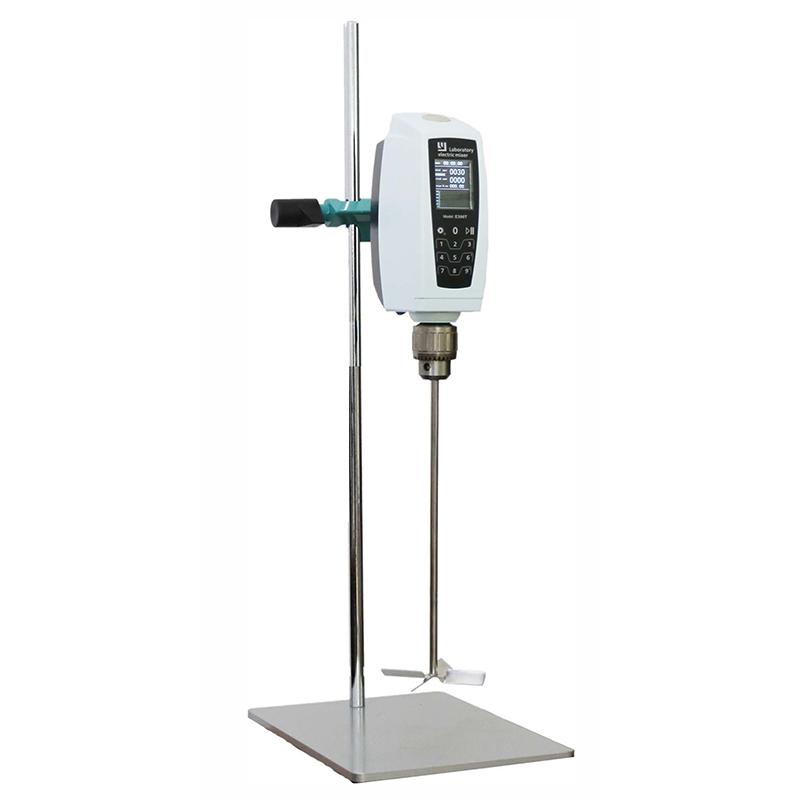

LANYU E300T Brushless DC Constant Speed Stirrer 70N.cm torque TFT LCD

Name: LANYU E300T Brushless DC Constant Speed Stirrer 70N.cm torque TFT LCD
Brand: LanYu
SKU: NB023934
Price: 885.0 USD
Availability: InStock

$ 885.00Ex works

With 70N.cm Max. Torque and stepless speed range of 30-2000rpm, support up to 100000mpa.s viscosity treatment, use capacitive touch control and TFT LCD display to ensure accurate and stable Stir performance.

Model

Get Quote

Category : Laboratory Mixer

Brand : LanYu

SKU : NB023934

Service :The delivery and service By NBCLab.Com

Overview

LANYU E300T brushless DC constant speed Stirrer is a laboratory small torque digital display Stirrer, with high-definition TFT LCD screen and capacitive touch button speed control, simple and fast operation, with torque display function, working voltage universal.

Features

1. High-definition TFT LCD display 2. Capacitive touch button speed control is simple and fast 3. With torque display function 4. Global operating voltage 5. Brushless DC motor drive 6. Stepless speed regulation function 7. Speed dynamic detection function 8. Speed memory function 9. Overload protection safety function 10. High torque output (Max. Torque 150.0N.cm)

Principle

The Stirrer is driven by a brushless DC motor and is controlled by a capacitive touch keyboard to achieve stepless speed regulation from 30 to 2000 rpm. It has the functions of dynamic speed detection and memory to ensure the stability and accuracy of the Stir process.

Applications

Laboratory Stirring

Standards

Duty Cycle S1 (Continuous)

Steps

1. Connect the power supply (AC 100~ 240V, 50/60HZ) 2. Set the speed by capacitive touch button (30~ 2000rpm) 3. Set Timer Range (1~ 6000min) 4. Installation Impeller (clamping range 2~ 13mm) 5. Stirrer starts working

Notice

• Permissible Ambient Temperature ≤ 40 ℃ • Allowable relative humidity ≤ 80% • Stirring capacity does not exceed 40L • Maximum viscosity does not exceed 100000mpa.s • Pay attention to the use of overload protection function

Power supply
AC 100~240V
Rated frequency
50/60HZ
input power
380W
output power
300W
drive Type
DC brushless motor
Stir shaft output torque
70N cm
Stir shaft output peak torque
150.0N cm
Duty Cycle
S1 (continuous)
Operation control mode
Capacitive Touch Keyboard
Speed Range
30~2000rpm
Speed control
stepless
Timer Range
1~6000min
RPM display
TFT
Speed dynamic detection function
Yes
Speed dynamic simulation function
Yes
Speed memory function
Yes
Overload protection
Yes
Stirringrod fixing method
Quick turn chuck
Rotary collet clamping Range
2~13mm
Impeller configuration
Four Blade Spiral Impeller
Stirring capacity
40L
Maximum viscosity
100000mpa.s
Permissible Ambient Temperature
Not more than 40 ° C
Allowable relative humidity
Not more than 80%
Machine dimensions
250*350*835mm
Machine weight
10kg
