Overview

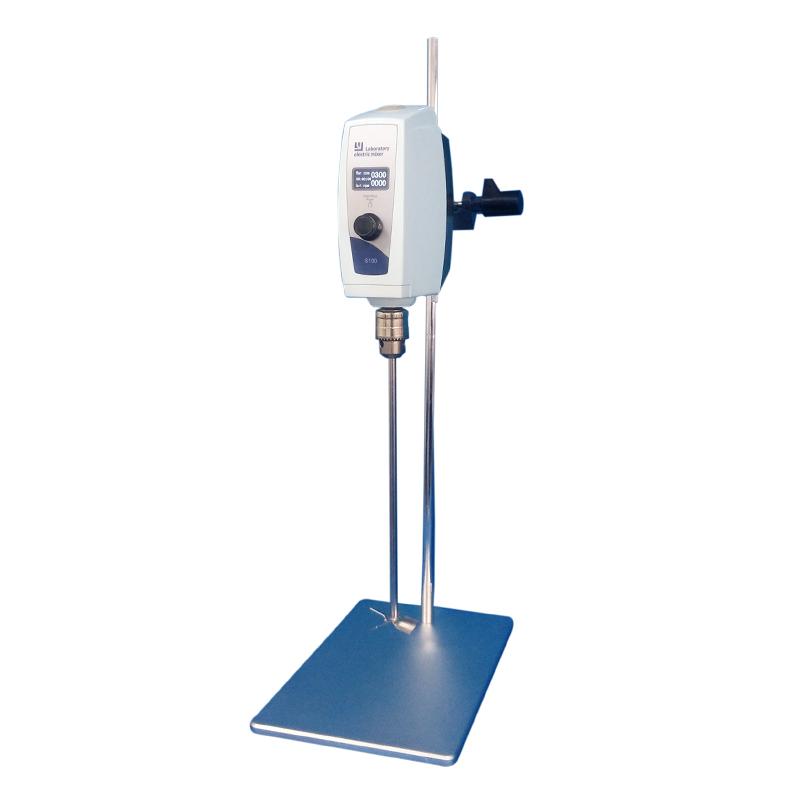

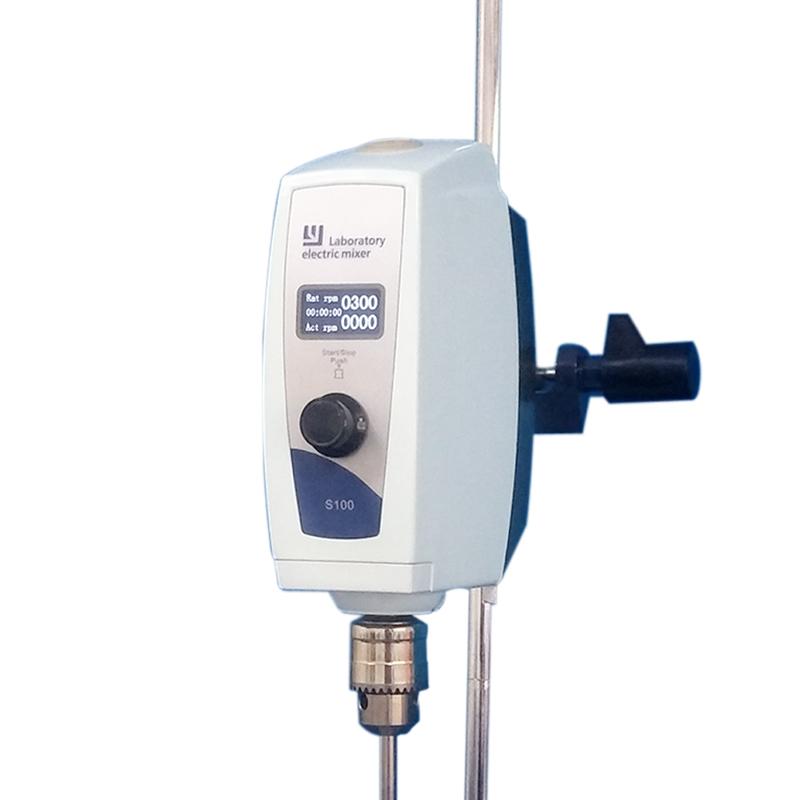

LANYU S100 brushless DC constant speed Stirrer is a digital display laboratory electric Stirrer, equipped with high-definition OLED LCD screen and digital knob speed regulation, simple control, support timing memory function, working voltage universal.
Features
1. High-definition OLED LCD display speed
2. Digital knob speed regulation, simple control
3. Support timing memory function
4. Worldwide working voltage (AC 100~ 240V)
5. Brushless DC motor drive, providing high torque
6. Stepless speed regulation, speed range 30~ 2000rpm
7. Speed dynamic detection and memory function
8. Overload protection safety mechanism
Principle
The Stirrer is driven by a brushless DC motor and continuously adjusts the speed through the control knob to achieve a speed range of 30 to 2000rpm. The OLED LCD screen displays the speed in real time, and has dynamic detection and memory functions to ensure the stability and efficiency of the Stir process.
Applications
Laboratory Stirring, Sample Handling, Chemical Mixing, Material prepative
Steps
Connect the power supply to ensure that the voltage is within the range of AC 100~ 240V
2. Use the rotating chuck to fix the Impeller, the clamping range is φ 2~ 10mm
3. Set the desired speed through the digital knob (30~ 2000rpm)
4. If you need timing, set the Timer Range 1~ 6000min
5. Start Stirrer, OLED screen displays real-time speed
6. Turn off the power after the work is completed
Notice
• Ensure that the Ambient Temperature does not exceed 40 ° C and the relative humidity does not exceed 80%
• Stirring capacity does not exceed 20L, maximum viscosity does not exceed 6000mpa.s
• Check whether the Impeller is firmly fixed before use
• Avoid overload operation, the equipment has overload protection function
• Regularly clean and maintain equipment to extend service life
