Overview

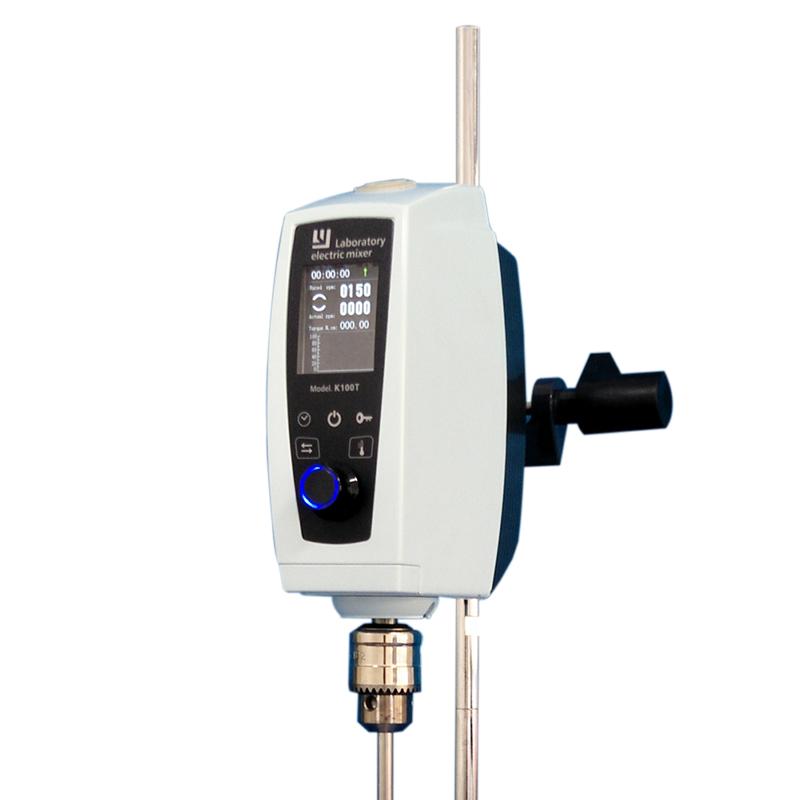

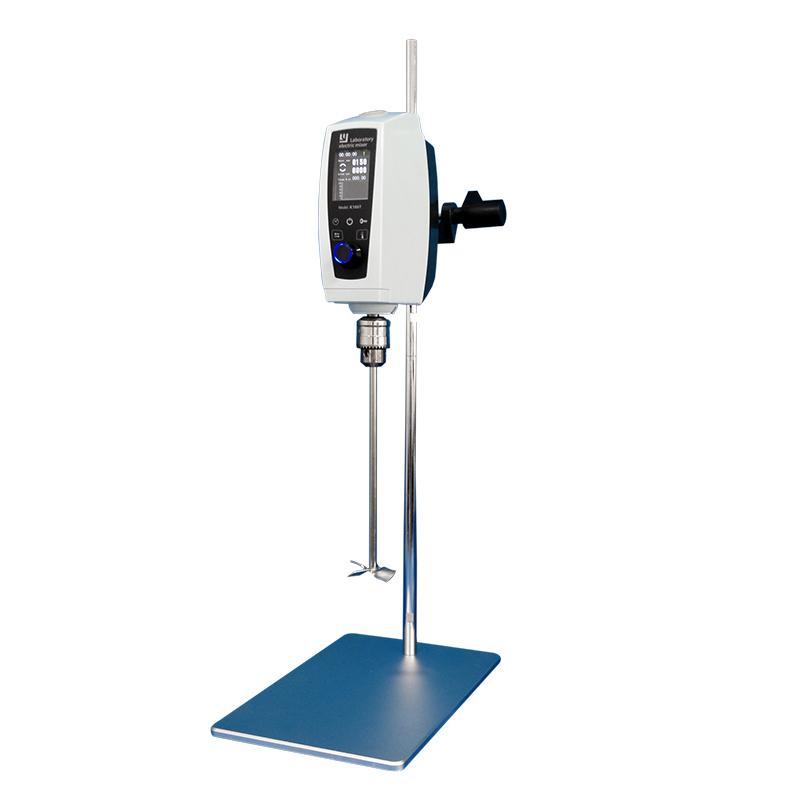

LANYU K100T Digital Display Laboratory Electric Stirrer is a brushless DC constant speed Stirrer with high-definition TFT LCD screen, simple control of digital knob speed control, torque display, temperature measurement, wireless remote control and data output interface.
Features
1. High-definition TFT LCD display speed and temperature
2. Digital knob stepless speed regulation, easy to operate
3. Support torque display and temperature measurement function
4. With wireless remote control and data output interface
5. Speed dynamic detection and memory function
6. Forward and reverse switching and keylock functions
7. Overload protection safety mechanism
8. Brushless DC motor drive, output power 100W, Max. Torque 40.0N.cm
Principle
Driven by a brushless DC motor, the Stirrer uses digital knobs for stepless speed control in the range of 30 to 2000 rpm, while supporting temperature measurement and torque display to achieve accurate laboratory Stir operation.
Applications
Stirring, chemical treatment, sample mixing, viscosity control
Steps
1. Connect the power supply and turn on the device.
2. Use the digital knob to set the desired speed
3. Select the forward and reverse mode as needed
4. Set the timing function (1~ 6000min)
5. Start Stir and monitor TFT screen display data
6. Turn off the power after use
Notice
• Ensure that the Ambient Temperature does not exceed 40 ° C and the relative humidity does not exceed 80%
• Impeller clamping range is limited to φ 2~ 10mm
• The maximum processing capacity is 20L, and the viscosity does not exceed 60000mpa.s.
• Check whether the overload protection function is normal before use
• Avoid long-term operation in humid or high temperature environments
