Overview

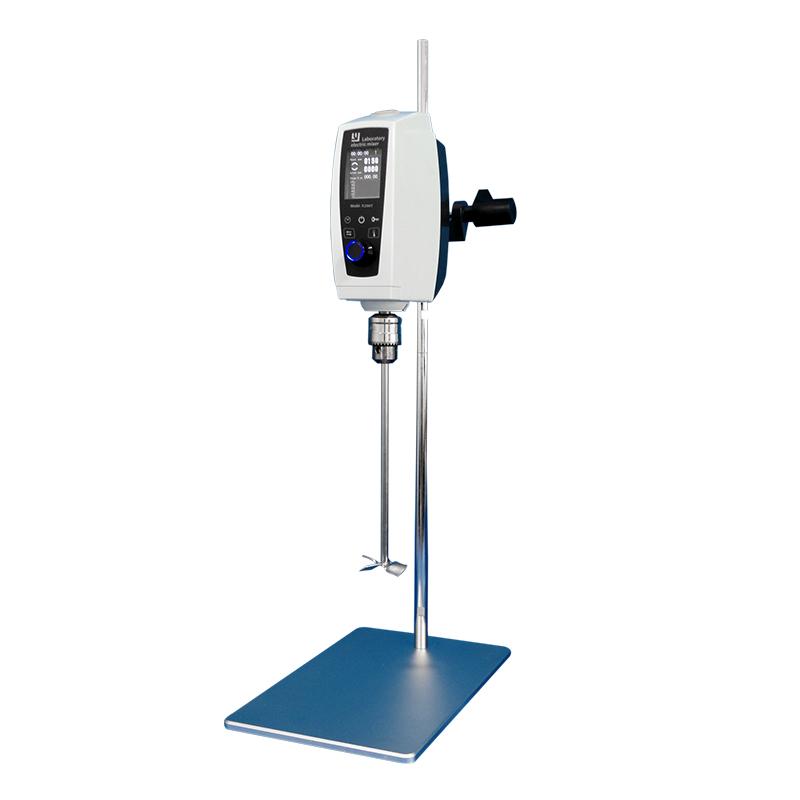

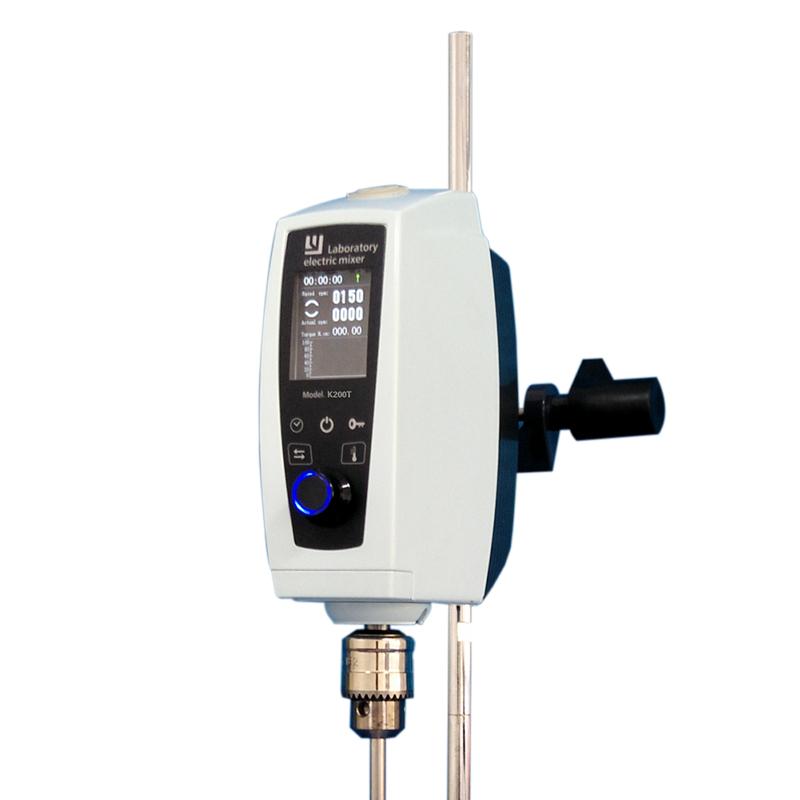

LANYU K200T is a digital laboratory electric Stirrer, driven by brushless DC motor, with high-definition TFT LCD display speed and temperature, support digital knob stepless speed regulation, torque display, wireless remote control and data output interface.
Features
1. Brushless DC motor drive, Stir performance stable
2. High-definition TFT LCD display speed and temperature
3. Digital knob stepless speed regulation, easy to operate
4. Support torque display function
5. With temperature measurement function, accuracy 0.1K
6. Support wireless remote control operation
7. With data output interface
8. Speed dynamic detection and memory function
9. Key lock function to ensure safe operation
10. Forward and reverse switching function
11. Overload protection safety device
Principle
The Stirrer uses a brushless DC motor as the driving core, and performs stepless speed control through digital knobs. The output torque of the motor is transmitted to the Impeller through the chuck to achieve a constant speed Stir in the range of 30-2000rpm. At the same time, the temperature change is monitored in real time through an external temperature transducer, and the relevant parameters are displayed on the TFT LCD screen.
Applications
Laboratory Stir, Chemical Stir, Food Stir, Pharmaceutical Stir, Scientific Research Experiment
Steps
1. Connect AC 100~ 240V power supply
2. Install φ 2~ 10mm Impeller to Collet
3. Set the required speed through the digital knob (30-2000rpm)
4. Set the timing time (1-6000min)
5. Select the forward or reverse mode
6. Stirrer starts working
7. Monitor speed and temperature parameters through TFT LCD screen
Notice
• Ambient Temperature must not exceed 40 ℃
• The relative humidity should not exceed 80%
• Impeller clamping range is limited to φ 2~ 10mm
• Maximum processing capacity is 40L
• Maximum viscosity does not exceed 100000mpa.s
• Make sure the overload protection function is normal before use
• Note that the timer setting range is 1-6000min
• Connect PT1000 Sensor for temperature measurement
