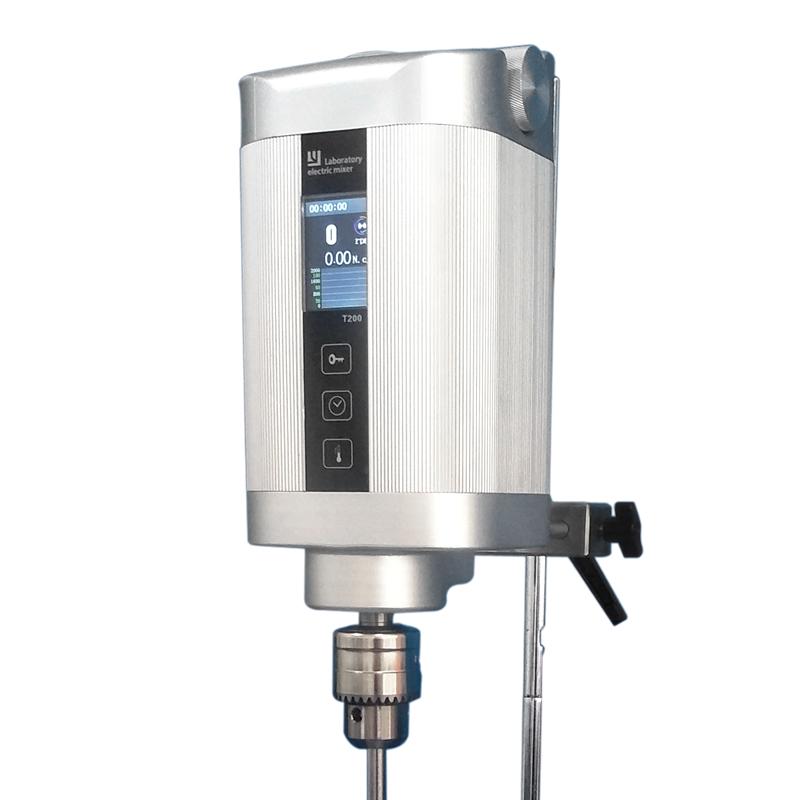

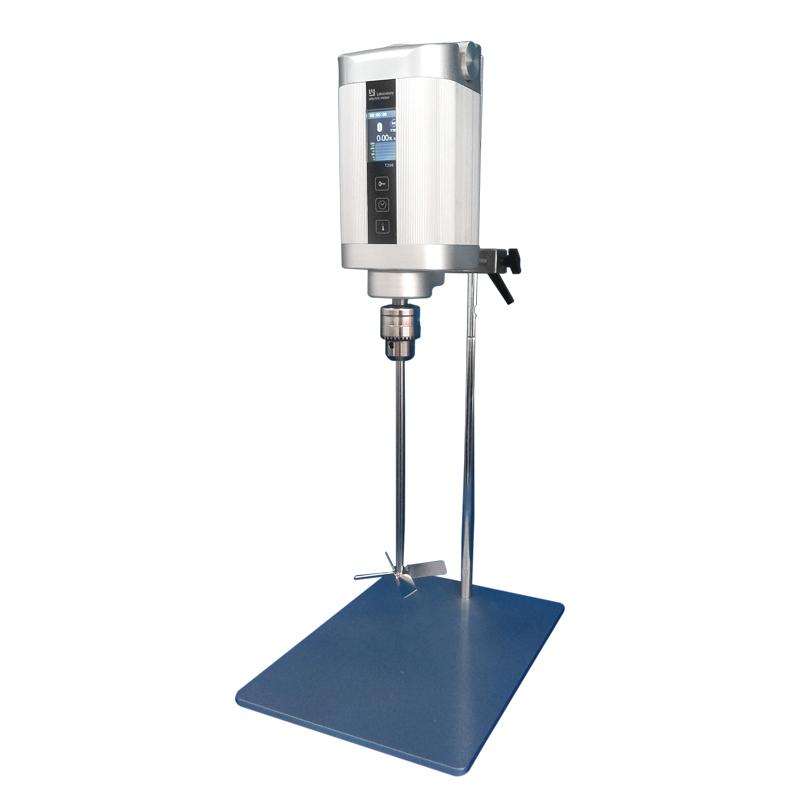

LANYU T200 Brushless DC Constant Speed Stirrer Large torque 360N.cm

Name: LANYU T200 Brushless DC Constant Speed Stirrer Large torque 360N.cm
Brand: LanYu
SKU: NB023939
Price: 1363.0 USD
Availability: InStock

$ 1363.00Ex works

Driven by a brushless DC motor, Max. Torque reaches 360N.cm, with a speed range of 30-2000rpm, supports temperature measurement and overload protection to ensure stable operation.

Model

Get Quote

Category : Laboratory Mixer

Brand : LanYu

SKU : NB023939

Service :The delivery and service By NBCLab.Com

Overview

LANYU T200 is a large torque brushless DC constant speed Stirrer with high-definition TFT LCD screen, simple digital knob speed control, torque display, temperature measurement, wireless remote control and data output interface. The device has a rated voltage of AC 100~ 240V, input power 400W, output power 320W, Max. Torque 200N.cm, speed range of 30~ 2000rpm, and supports stepless speed regulation and timing functions.

Features

1. High-definition TFT LCD display speed and temperature 2. Digital knob speed control is simple 3. Torque display function 4. Support temperature measurement, accuracy 0.1K 5. Wireless remote control function 6. data output interface 7. Speed dynamic detection and memory function 8. Keylock function 9. Overload protection safety function 10. Brushless DC motor drive 11. Max Torque 200N.cm 12. Stepless speed range 30~ 2000rpm 13. Timer Range 1~ 6000min 14. Stirring capacity 100L 15. Maximum viscosity 130000Mpa.s

Principle

The Stirrer is driven by a brushless DC motor, and the stepless speed control is carried out through the digital knob. The output torque of the motor is transmitted to the Impeller through the rotary chuck. The device displays the speed and temperature data in real time through the TFT LCD screen, and has dynamic detection and memory functions to ensure the stability and reliability of the Stir process.

Applications

Laboratory Stir, Chemical Stir, Food Stir, Pharmaceutical Stir, Material Stir

Standards

Not mentioned

Steps

Not mentioned

Notice

Not mentioned

Power supply
AC 100~240V
Rated frequency
50/60HZ
input power
400W
output power
320W
drive Type
DC brushless motor
Stir shaft output torque
200N cm
Stir shaft output peak torque
360N cm
Operation control mode
Control knob
Speed Range
30~2000rpm
Speed control
stepless
Timer Range
1~6000min
RPM display
TFT LCD screen
Speed dynamic detection function
Yes
Speed memory function
Yes
Overload protection
Yes
keylock function
Yes
Stirringrod fixing method
Quick turn chuck
Rotary collet clamping Range
2~10mm
Hollow shaft
12mm
Impeller configuration
Four Blade Spiral Impeller
Stirring capacity
100L
Maximum viscosity
130000mpa.s
Permissible Ambient Temperature
Not more than 40 ° C
Allowable relative humidity
Not more than 80%
Temperature display
Yes
External temperature transducer interface
PT1000
temperature Range
~50-400℃
Temperature measurement accuracy
0.1K
Machine dimensions
600*320*220mm
Machine weight
15kg

[Q] Is the price listed on the website the final cost for overseas purchases?

[A] No, it isn't. This is the ex-factory price of the product in the Chinese Mainland. In addition to this price, buyers from different countries need to account for additional costs such as shipping fees, tariffs, and others. For specific regional quotes, please consult our customer service or fill out a quotation form.

[Q] What is the specific process for purchasing the product?

[A] First, please click on the quotation form on the website and fill in detailed information. Our customer service personnel will then send you a quotation based on your specific country and region, confirming payment and delivery methods. Following this, we proceed with contract signing, payment, and shipment. You can then await delivery.

[Q] What should I do if the instrument I purchase needs repair?

[A] After-sales repair for overseas instruments is an unavoidable issue. Our repair terms stipulate that the sender is responsible for the shipping and insurance costs incurred for the repair. Repairs within the warranty period are free, while repair costs beyond the warranty period are determined based on the actual situation.
