Overview

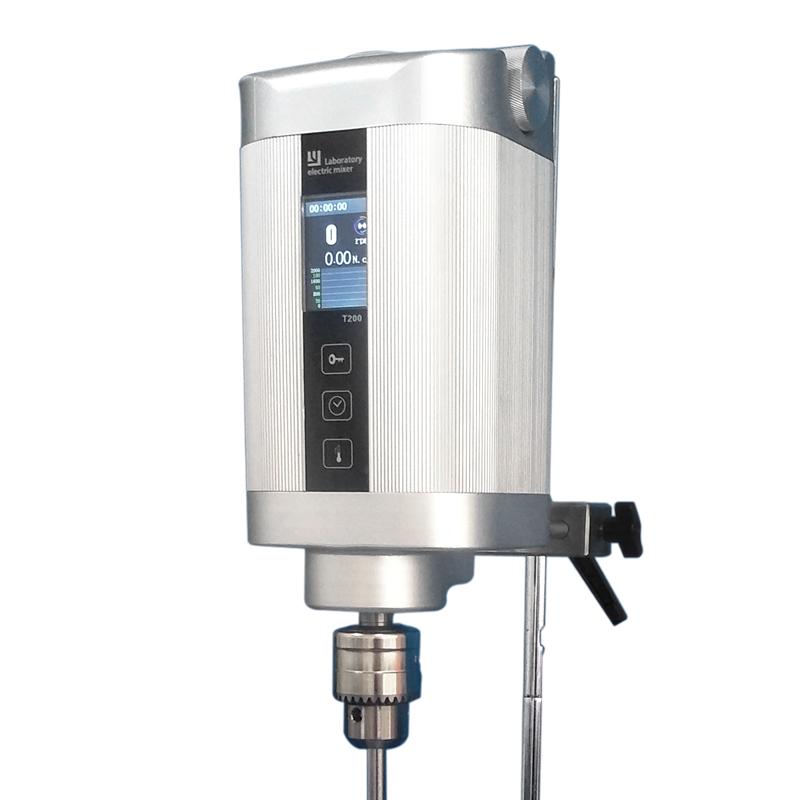

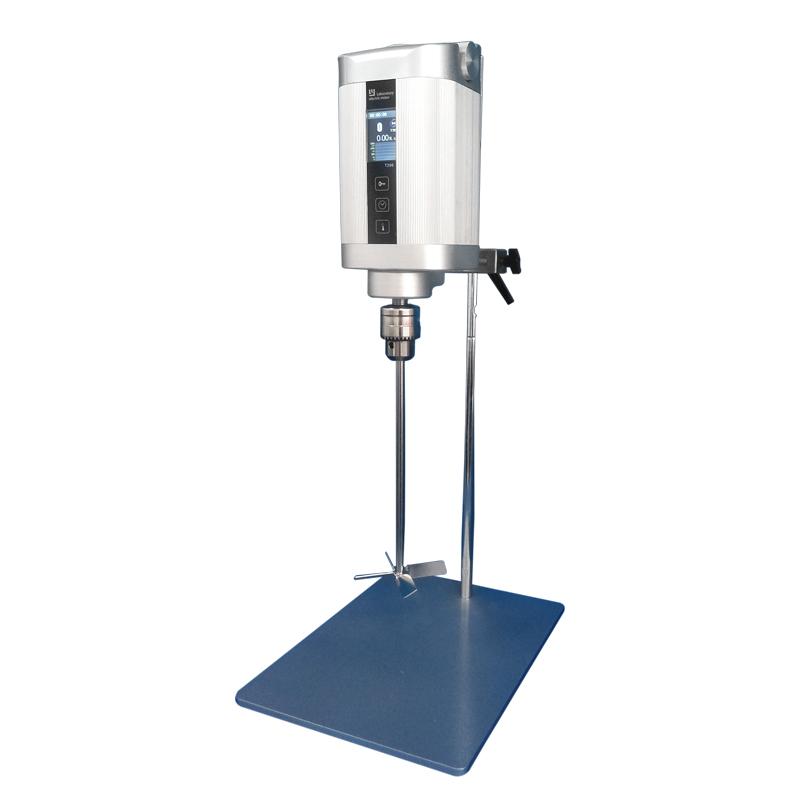

LANYU T200 + (large torque) digital display laboratory electric Stirrer is a constant speed Stir device using brushless DC motor, with high-definition TFT LCD screen display, digital knob speed control simple, torque display function, and support temperature measurement, wireless remote control and data output interface.
Features
1. High-definition TFT LCD display
2. Digital knob speed control is simple
3. With torque display function
4. Support temperature measurement function
5. Support wireless remote control function
6. With data output interface
7. Brushless DC motor drive
8. Max Torque 360N.cm
9. Speed range 50~ 3000rpm
10. Stepless speed regulation
11. Timer Range 1~ 6000min
12. Speed dynamic detection function
13. Speed memory function
14. Overload protection safety function
15. Keylock function
16. External temperature transducer interface PT1000
17. Temperature measurement range -50-400 ℃
18. Temperature measurement accuracy 0.1K
Principle
The Stirrer is driven by a brushless DC motor, and the stepless speed control is carried out through the digital knob. The output torque of the motor is transmitted to the Impeller through the rotary chuck to achieve constant speed Stir operation. The device displays parameters such as speed, torque and temperature in real time through the TFT LCD screen, and has overload protection function to ensure safe operation.
Applications
Laboratory Stirring
Standards
Rated voltage AC 100~ 240V, rated frequency 50/60HZ, input power 400W, output power 320W, Max. Torque 360N.cm, speed range 50~ 3000rpm, Timer Range 1~ 6000min, Stir processing capacity 100L, maximum viscosity 130000mpa.s, Permissible Ambient Temperature ≤ 40 ℃, allowable relative humidity ≤ 80%, temperature measurement range -50-400 ℃, temperature measurement accuracy 0.1K
Steps
1. Connect power supply AC 100~ 240V
2. Select the appropriate Impeller (clamping range φ 2~ 10mm)
3. Set the required speed through the digital knob 50~ 3000rpm
4. Set the timing time 1~ 6000min
5. Stirrer starts working
6. Monitor speed, torque and temperature parameters through TFT LCD screen
7. Turn off the power after use
Notice
• Ambient Temperature must not exceed 40 ℃
• The relative humidity should not exceed 80%
• Impeller clamping range is limited to φ 2~ 10mm
• Pay attention to the device status when the overload protection function is triggered
• Power frequency within AC 100~ 240V range before use
• Connect PT1000 Sensor for temperature measurement
• Regularly check the operating status of the equipment
