Overview

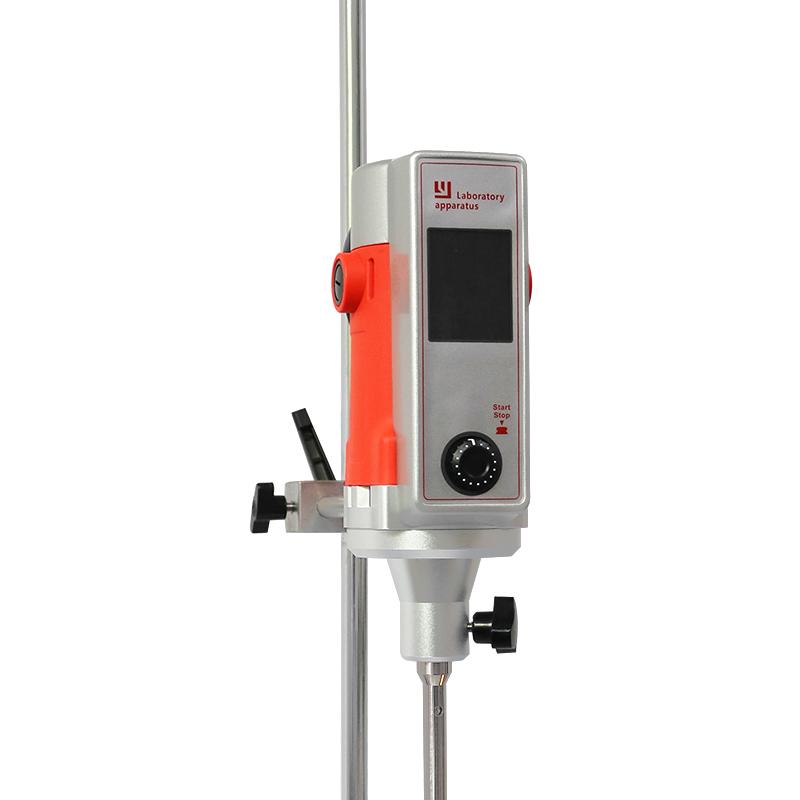

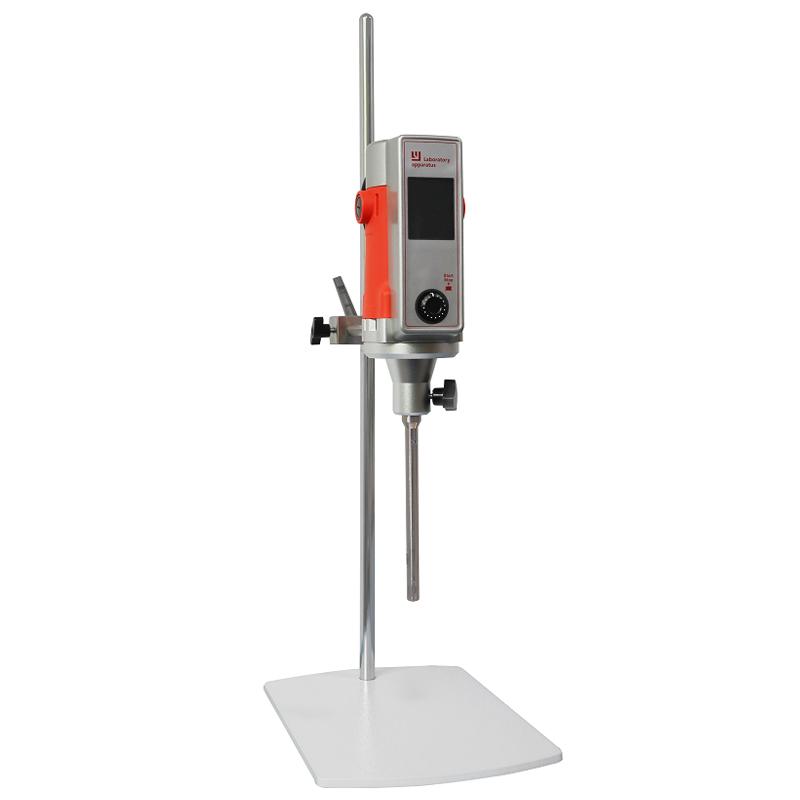

LANYU LYD500W-T High Speed Dispersion Homogenizer is a laboratory equipment. It adopts a three-core processor intelligent control main board and a 2.8-inch TFT true color touch screen to display the voltage, frequency, current, power and torque Linear dispersion diagram in real time to ensure accurate experimental data. With overload and overcurrent protection, self-test, timing, memory and other functions, support preset speed and pause operation, speed digital display, easy operation. The working head is removable for easy replacement, cleaning and sterilization. The fuselage is injection molded from engineering plastics, which is safe and reliable. The no-load speed range is 1000-28000rpm.
Features
1. Three-core processor intelligent control main board and 2.8-inch TFT true color touch screen, real-time display voltage, frequency, current, power and torque Linear dispersion diagram.
2. With overload and overcurrent protection, local self-test, timing, memory functions, preset speed and pause at any time.
3. Speed digital display, stepless speed regulation, full-screen touch screen control, easy to operate.
4. The working head is removable for easy replacement, cleaning and sterilization.
5. The fuselage is made of engineering plastics, ensuring safe and reliable use.
Principle
The device is driven by a brushless DC motor and realizes stepless speed regulation through the touch knob. The speed range is 100~ 28000rpm. When working, the output torque of the motor is transmitted to the working head through the Stir shaft to achieve high-speed dispersion and homogenization. The intelligent control main board monitors the operating parameters in real time to ensure stability and precise control.
Steps
1. Connect the power supply and ensure the rated voltage is AC220V.
2. Set the required speed and Timer Range (1~ 1000min) through the touch screen.
3. Install the working head to ensure it is firm.
4. Start the device and monitor the display parameters in real time.
5. The speed can be suspended or adjusted at any time.
6. After use, remove the working head for cleaning and sterilizing.
Notice
• Ensure that the Ambient Temperature does not exceed 40 ° C and the relative humidity does not exceed 80% RH.
• The processing capacity range is 30~ 800ml, do not overload.
• Regularly check whether the overload protection function is normal.
The working head is made of SS316 stainless steel to avoid the use of corrosive media.
Equipment weight 10kg, pay attention to safety when handling.
