Overview

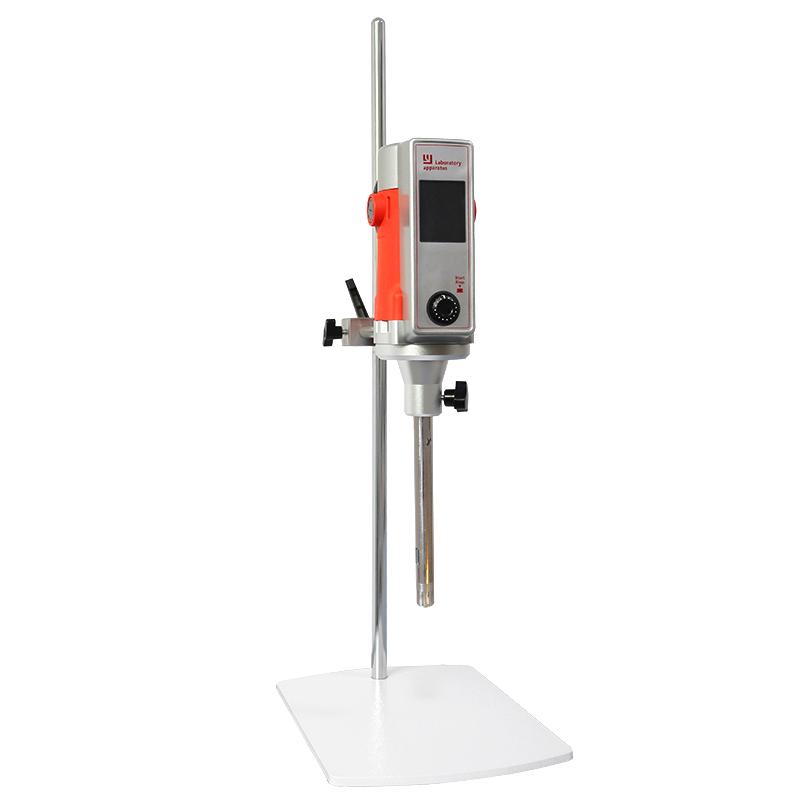

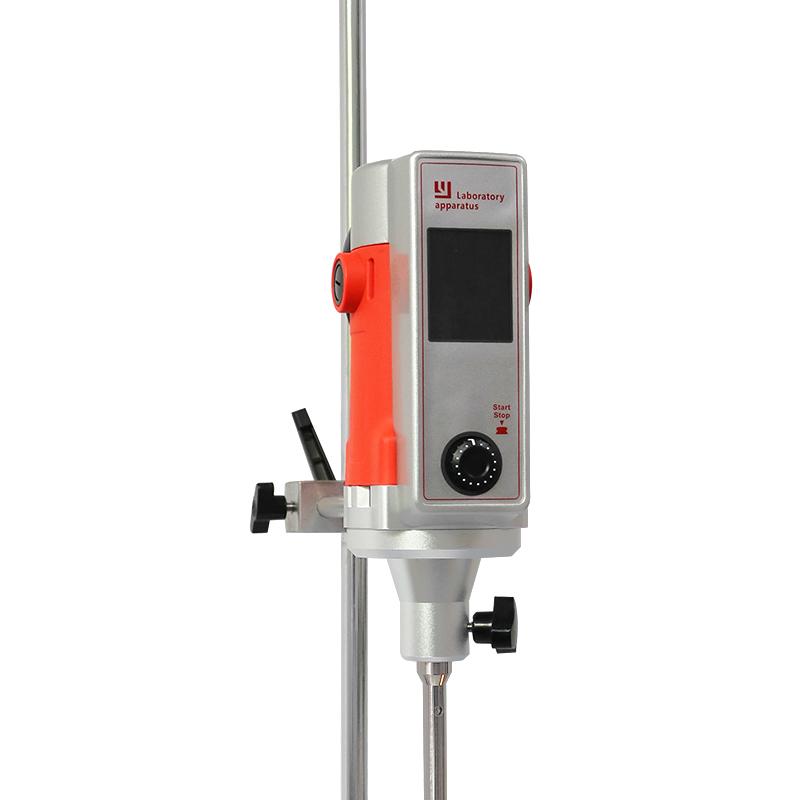

LANYU LYD500W-T High Speed Dispersion Homogenizer is a laboratory equipment equipped with a three-core processor intelligent control main board and a 2.8-inch TFT true color touch screen, which can display voltage, frequency, current, power and torque Linear dispersion in real time to ensure accurate experimental data. The machine has functions such as overload and overcurrent protection, self-test, timing, memory, etc., supports preset speed and pause at any time, and is easy to operate. The working head can be removed for easy replacement, cleaning and sterilization. The fuselage is injection molded with engineering plastics, which is safe and reliable. The no-load speed range is 1000-28000rpm.
Features
1. Three-core processor intelligent control main board and 2.8-inch TFT true color touch screen, real-time display of voltage, frequency, current, power and torque Linear dispersion
2. With overload and overcurrent protection, local self-test, timing, memory functions, preset speed and pause at any time
3. Speed digital display, stepless speed regulation, easy to operate
4. The working head is removable, easy to replace, clean and sterilize
5. The fuselage is injection molded from engineering plastics, which is safe and reliable
6. No-load speed range 1000-28000rpm, processing capacity 50~ 1500ml
Principle
The high-speed dispersed Homogenizer is driven by a DC brushless motor and performs stepless speed control through a touch knob to achieve high-speed swirl/spin dispersion and homogenization. During operation, the output torque of the motor is transmitted to the working head through the Stir shaft to efficiently mix materials within the set speed range.
Applications
Laboratory dispersion and homogenization
Steps
1. Connect the power supply and turn on the device.
2. Set the required speed and timing time through the touch knob
3. Start the equipment for decentralized homogenization operation
4. Parameters can be paused or adjusted at any time
5. Turn off the equipment after the operation is completed, remove the working head for cleaning and sterilizing
Notice
• Ambient Temperature not exceeding 40 ° C and relative humidity not exceeding 80% RH before use
• Pay attention to the overload protection function during operation to avoid overload operation
• Regularly check the connection status of the working head to ensure safety
• Please remove the working head when cleaning and sterilizing to avoid damage to the equipment
