Overview

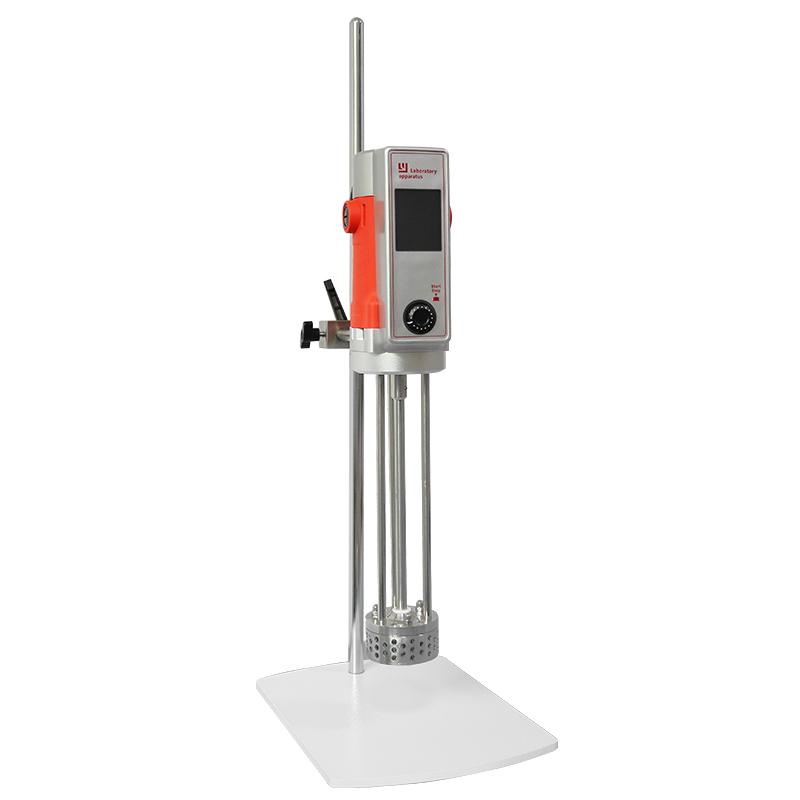

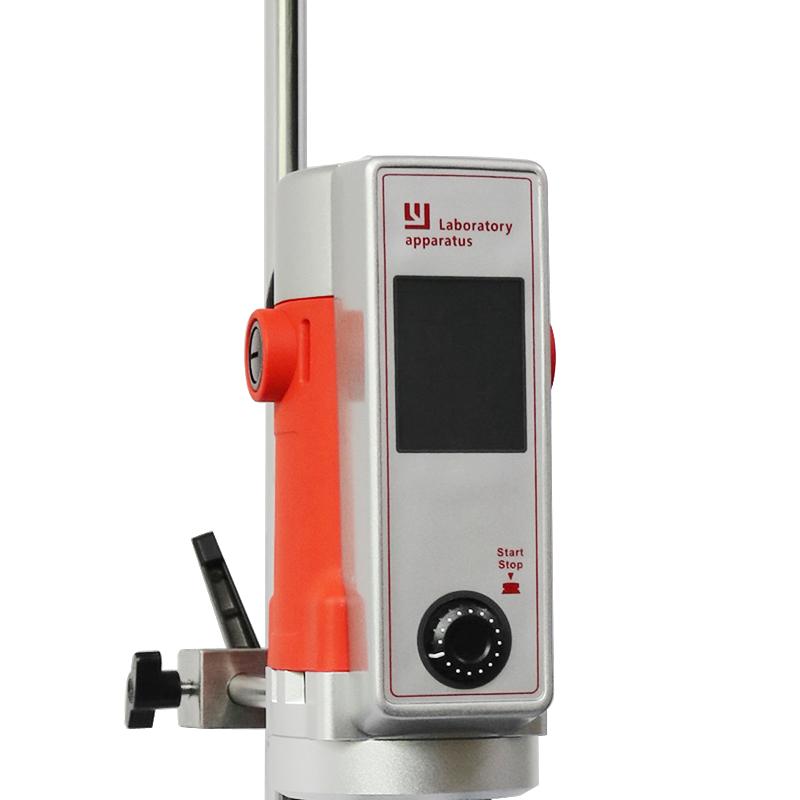

LANYU LYE500W-T (Set 1) High shear dispersion Mulser is made of 304 stainless steel, which is suitable for laboratories or pilot workshops. The machine consists of a high-speed motor, a shear emulsification head and a speed control controller. It uses engineering plastic and die-cast aluminum alloy bodies for stable operation. The working head is refined in stainless steel and has a wide range of applications. It has microprocessor control speed, soft start, overload protection, stepless speed regulation, real-time data display and timing control functions to meet the needs of Stir speed correction and data collection in experiments.
Features
1. Driven by a compact series-excited miniature high-speed motor, it is suitable for Stirring mixing of low to medium and high viscosity liquids and shearing emulsification of crushed granular materials
2. The drive main unit is made of good engineering plastic and die-casting aluminum alloy, and the operation state is stable
3. The working head is made of good stainless steel and has a wide range of experimental applications
4. The running speed is controlled by the microprocessor, which can instantly compensate for load changes and Power frequency fluctuations, and the constant speed is reliable
5. Built-in soft start and automatic overload protection ensure the safety of continuous operation at full load for a long time
6. Stepless adjustment of speed, to meet the Stirring speed correction at any time in the experiment
7. Voltage, frequency, current, output power, output torque and other real-time numerical display for experimental data collection
8. Run the timing control function to ensure that the experimental timeliness is effectively controllable
Principle
The experimental equipment is driven by a high-speed motor shearing emulsification head. Under the high-speed swirl/spin of the rotor, the precision-matched rotating stator forms high-frequency, strong circumferential tangential velocity, angular velocity and other comprehensive kinetic energy, which prompts the experimental material to be sucked into the rotor area from the bottom of the container and thrown out of the stator hole under the action of huge centrifugal force. The stator and rotor form strong, reciprocating hydraulic shearing, friction, centrifugal extrusion, liquid flow collision and other comprehensive effects in a reasonable narrow gap. The material cycles in the container and bears tens of thousands of shearing, tearing, impact and mixing per minute, so as to achieve the effect of shearing emulsification. Its working process efficiency is about a thousand times higher than that of ordinary Stir.
Applications
Tissue dispersion in the field of biotechnology, sample preparation, enzyme treatment in the food industry, liquid and liquid phase, liquid and solid phase experiments in industry, cosmetic industry, paints industry and Petrochemicals, homogenization, emulsification processes, crushing, emulsification, homogenization, coalescence, suspension, dissolve and Stir in the production of dairy products, beverages, cosmetics, pharmaceuticals, etc.
Steps
1. Place the equipment in a clean drying place to ensure that the Ambient Temperature does not exceed 40 ° C
2. When used in a humid environment, use a leakage protection device
3. When used in a power grid with intense voltage fluctuations, a power supply regulator is used
4. When used in a highly corrosive environment, take necessary protective measures
5. In case of volatile flammable media experiments, take effective measures to prevent the emission of flammable gases
6. Select the appropriate head stator configuration according to the experimental requirements
7. Set the speed range of 1000~ 14000rpm, through stepless speed regulation
8. Set the Timer Range 1~ 1000min and start the equipment to run
Notice
• The machine should be placed in a clean drying place, keep it tidy, prevent moisture, Operating Environment temperature does not exceed 40 ℃, strictly prevent all kinds of foreign objects from splashing into the motor
• When this machine is used in a humid environment, please use a leakage protection device to ensure the personal safety of the operator
• This machine is used in a power grid with intense voltage fluctuations, which will cause the speed to lose control. Please use a power supply voltage stabilizer.
When this machine is used in a highly corrosive environment, in order to prevent mechanical and electrical performance damage of the equipment, please pay attention to the necessary protective measures
• In case of volatile flammable and other media experiments, effective measures to prevent the emission of flammable gases are required to avoid flammable and explosive gases from igniting and causing fire accidents
