Overview

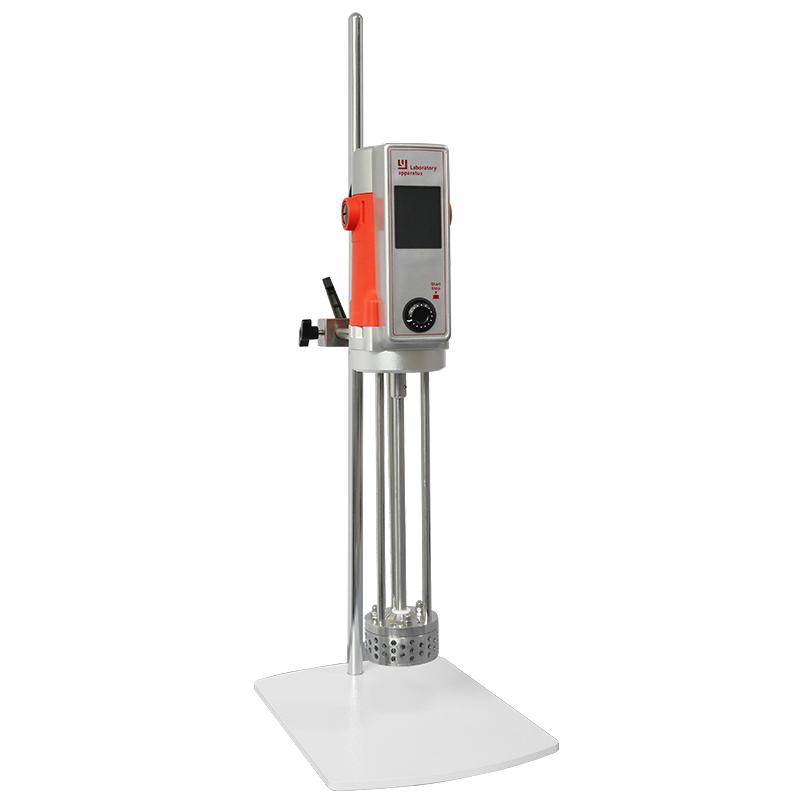

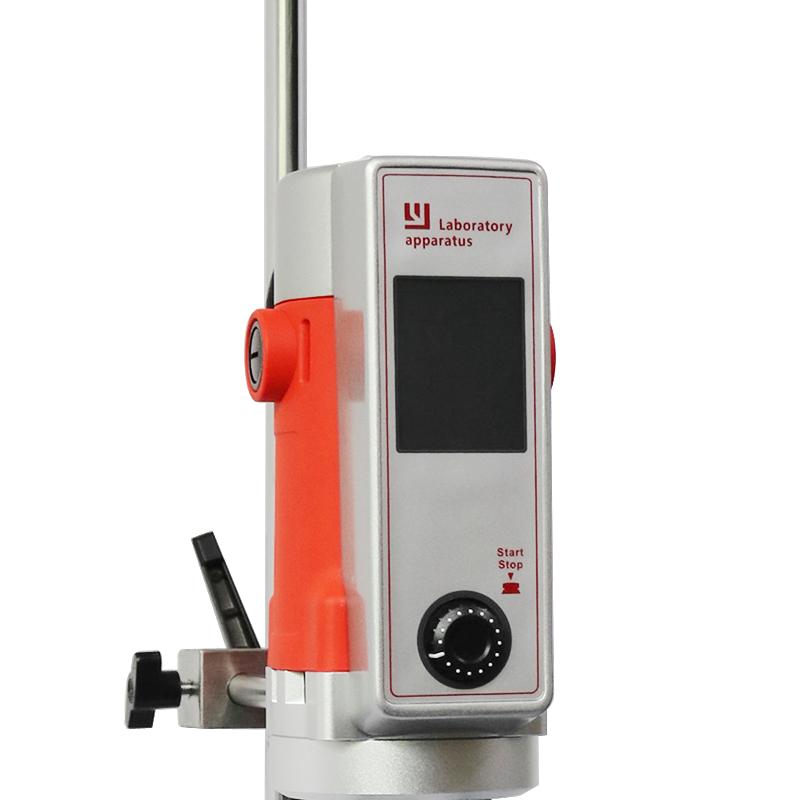

LANYU LYE500W-T (Set 2) High shear dispersion Mulser is made of 304 stainless steel, which is composed of high-speed motor, shear emulsification work head and speed control controller. The equipment is suitable for laboratory or pilot plant, used for Stir mixing of low to medium and high viscosity liquids, and shearing emulsification of crushed granular materials in liquid medium. The drive host adopts engineering plastic and die-casting aluminum alloy, which has stable operation; The work head is refined stainless steel and has a wide range of applications; Microprocessor controls the speed, constant speed and reliable; Built-in soft start and overload protection, support long-term continuous operation; Stepless speed regulation meets the experimental needs; Real-time display of voltage, frequency, current and other parameters, convenient data collection; with timing control function.
Features
1. Driven by a compact series-excited miniature high-speed motor, it runs stably.
2. The working head is made of high-quality stainless steel and has a wide range of experimental applications.
3. The microprocessor controls the speed, instantly compensates for load and voltage fluctuations, and is reliable at a constant speed.
4. Built-in soft start and automatic overload protection ensure the safety of continuous operation at full load for a long time.
5. Stepless speed regulation, to meet the Stir speed correction at any time in the experiment.
6. Real-time display of voltage, frequency, current, output power, output torque and other parameters, convenient data collection.
7. Run the timing control function to ensure that the experiment time is controllable.
8. Working head stator configuration of different specifications, covering applications such as crushing, emulsification, homogenization, coalescence, suspension, dissolving and Stir.
Principle
The device is driven by a high-speed motor shear emulsification working head, and the stator is precisely matched to form high-frequency, strong circumferential tangential velocity, angular velocity and other comprehensive kinetic energy under the high-speed swirl/spin of the rotor. The experimental material is sucked into the rotor area from the bottom of the container and thrown out of the stator hole under the action of huge centrifugal force. The stator and rotor form a strong, reciprocating hydraulic shear, friction, centrifugal extrusion, liquid flow collision and other comprehensive effects in the narrow gap. The material is cycled in the container and bears tens of thousands of shearing, tearing, impact and mixing per minute, so as to achieve the effect of shear emulsification. The efficiency is about a thousand times higher than that of ordinary Stir.
Applications
Tissue dispersion in the field of biotechnology, sample preparation, enzyme treatment in the food industry, liquid and liquid phase, liquid and solid phase experiments in the industrial, cosmetic industry, paints industry and Petrochemicals, homogenization and emulsification processes in the production of dairy, beverages, cosmetics, and other products
Steps
1. Place the equipment in a clean drying place to ensure that the Ambient Temperature does not exceed 40 ° C.
2. When used in a humid environment, use a leakage protection device.
3. When used in a power grid with voltage fluctuations, use a power supply regulator.
4. When used in a highly corrosive environment, take necessary protective measures.
5. In case of volatile flammable media experiments, take effective measures to prevent the emission of flammable gases.
Notice
• The machine should be placed in a clean drying place, keep it clean and tidy to prevent moisture, the operating Environment temperature should not exceed 40 ° C, and all kinds of foreign matter should be strictly prevented from splashing into the motor.
• When this machine is used in a humid environment, please use a leakage protection device to ensure the personal safety of the operator.
• This machine is used in a power grid with intense voltage fluctuations, which will cause the speed to lose control. Please use a power supply voltage stabilizer.
When this machine is used in a highly corrosive environment, please take necessary protective measures to prevent mechanical and electrical performance damage of the equipment.
• In case of volatile flammable and other media experiments, effective measures to prevent the emission of flammable gases are required to avoid flammable and explosive gases from igniting and causing fire accidents.
