Overview

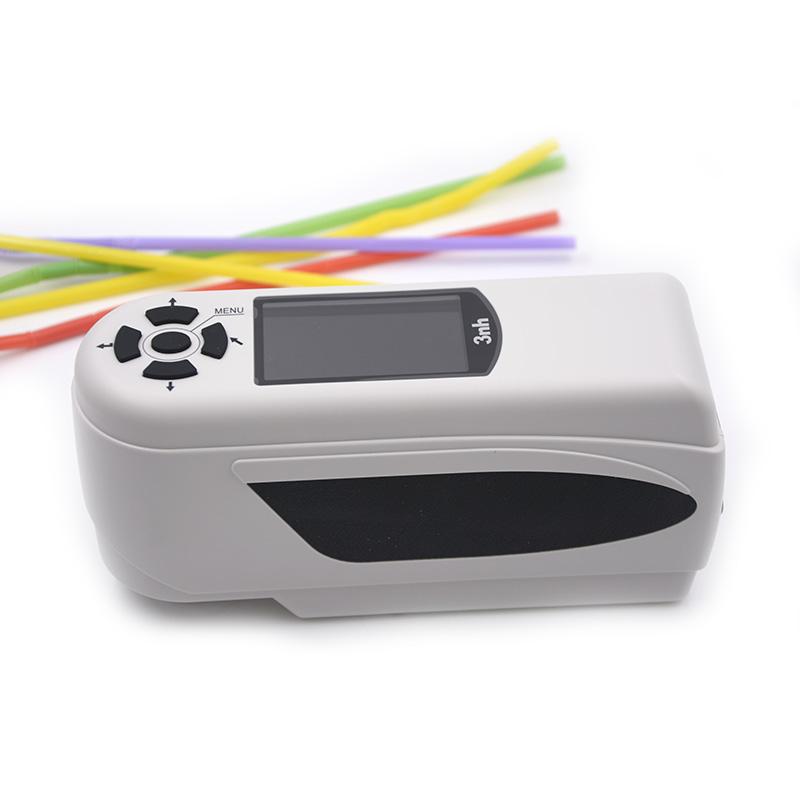

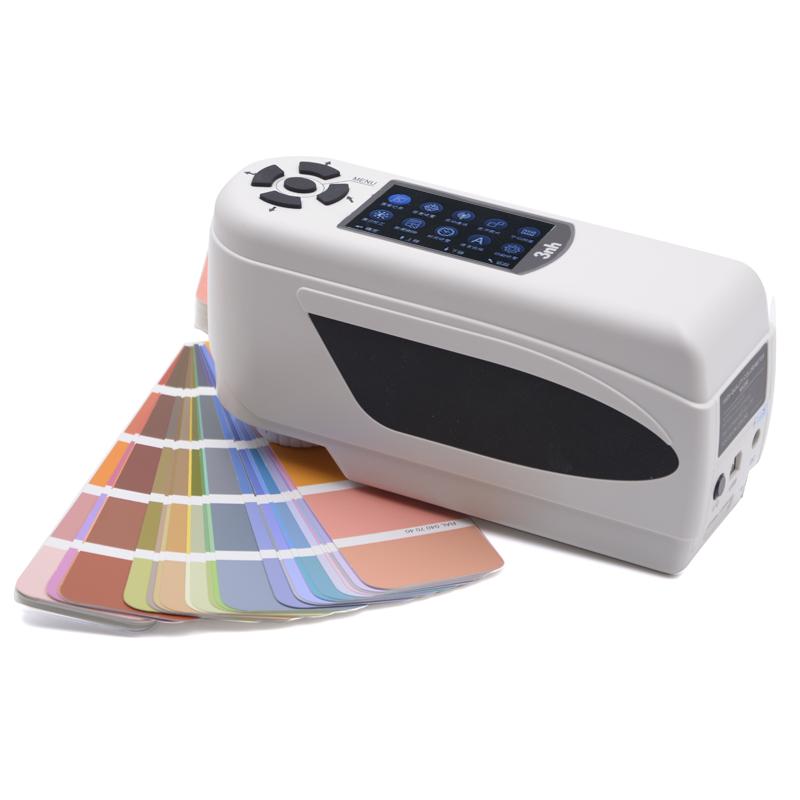

The 3nh color difference meter NH310 is a Portable color difference meter designed with the advantages of a variety of traditional imported products. The instrument has a dual measurement diameter of 8mm/4mm, which can be switched for different color difference measurement occasions. It adopts Keypad Operation and LCD display. It uses high-quality LED Blu-ray Excitation light source devices. It provides two Illuminant options of D65 and D50A, and has good accuracy and Reliability in color measurement.
Features
1. Camera viewing and positioning technology
2. Automatic whiteboard verification function when powered on
3. Extended diameter can be measured concave part

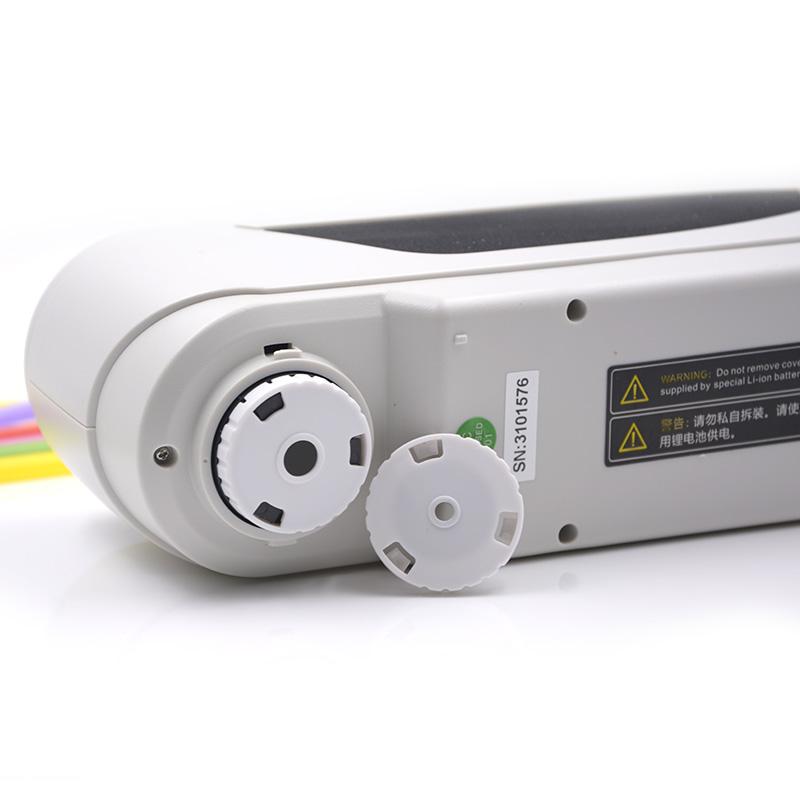

4.8Mm and 4mm dual measurement caliber can be switched
5. Configure a rechargeable high-capacity lithium-ion battery

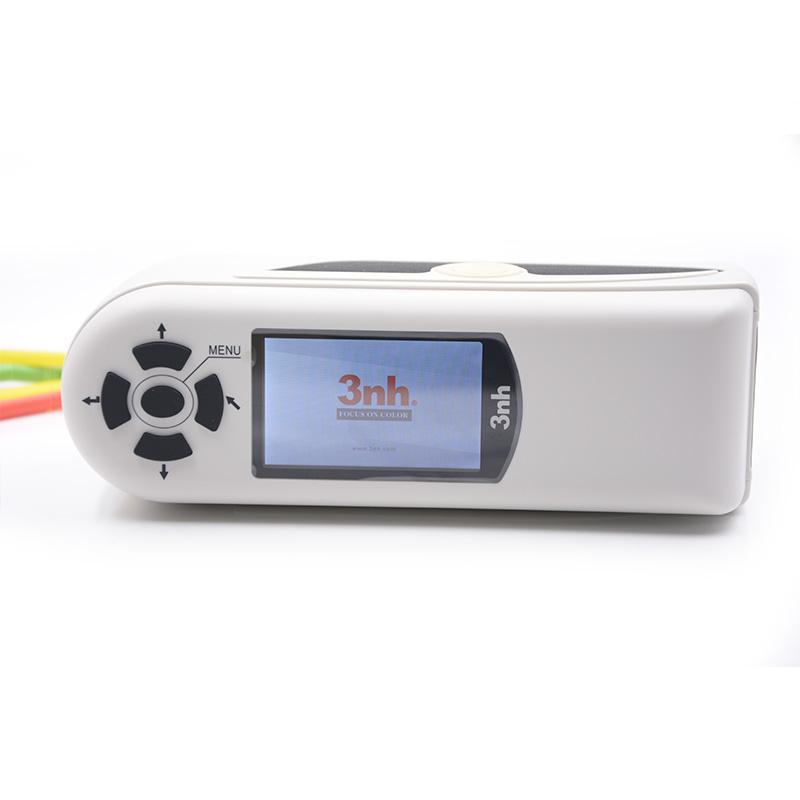

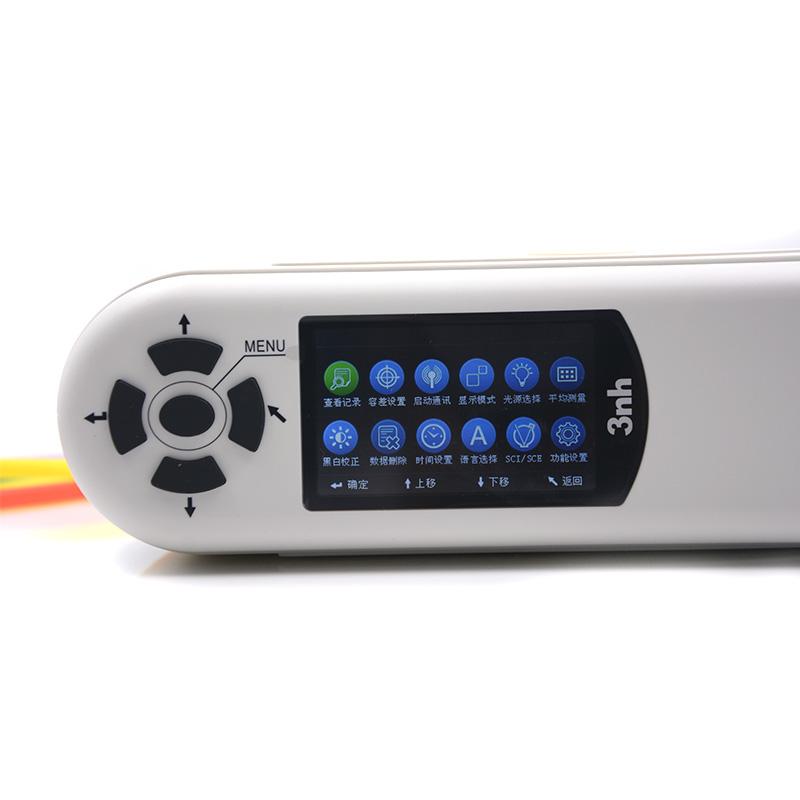

6. Equipped with TFT true color 2.8-inch display
7. Data storage: 100 master standards, 20,000 samples
8. Illuminant lifespan up to 5 years, can be more than 1.60 million measurements
Principle
The NH310 color difference meter uses 8 °/d illumination and LED Illuminant to receive reflected light signals through a silicon photodiode sensor. The instrument is positioned by the camera, and the whiteboard is automatically checked when turned on to ensure measurement accuracy. The measurement data is calculated by the internal processor, and the chromatic value and color difference results are displayed on the LCD screen.
Applications
Plastics, Coatings, inks, printing, automotive, Spinning & weaving, food, products and other industries
Standards
South China National Measurement and Testing Center/Guangdong Academy of Measurement Sciences Appraisal Certificate, China Academy of Measurement Sciences Appraisal Certificate, CE Certification
Steps
1. Automatic whiteboard verification when turned on
2. Select the appropriate measurement diameter (8mm or 4mm)
3. Use the camera for viewfinder positioning
4. Align the sample for measurement
5. Read measurement data via LCD
6. Data analysis can be performed by connecting PC software via USB interface
Notice
• Operating Ambient Temperature should be in the range of 0~ 40 ℃
• Storage Ambient Temperature should be in the range of -20~ 50 ℃
Periodic instrument calibration to ensure measurement accuracy
• Clean measurement caliber in time after use
• Avoid use in strong electromagnetic interference environments
• Charge in time when the battery is low
