Overview

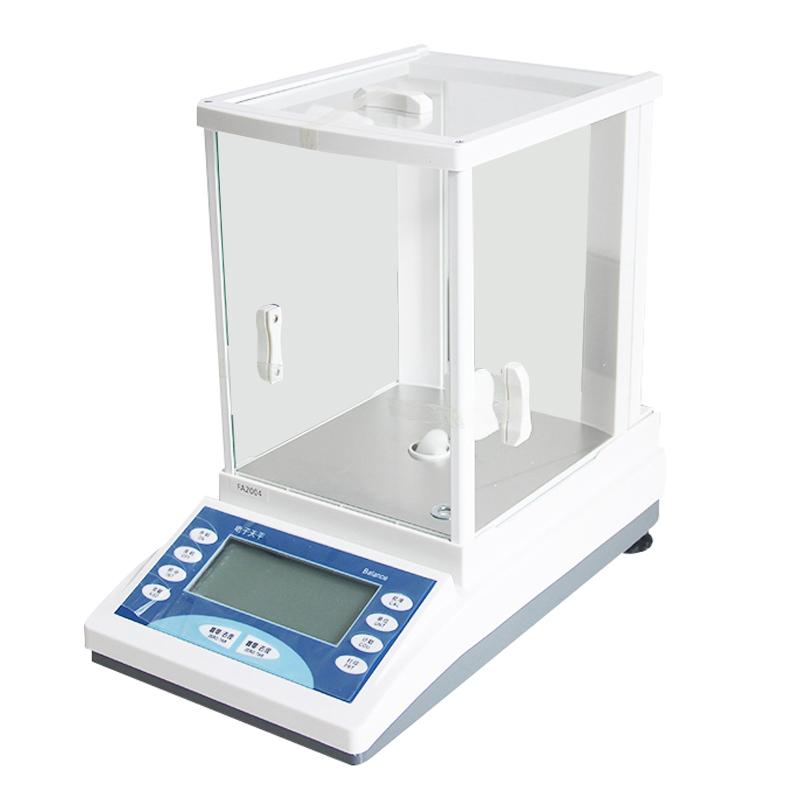

JA10003N Electronic Balance is a high-performance analytical Balance of JINGQI brand, which integrates accuracy, stability, multi-function and automation. It is controlled by MCS-51 single-chip microprocessor to ensure high Accuracy weighing results. It is equipped with RS232C output interface, which can connect printers, computers and other equipment to meet the requirements of laboratory mass analysis.
Features
1. Automatic fault detection function; 2. RS-232C output interface; 3. Zero tracking function; 4. Unique appearance design; 5. STN wide viewing angle backlight LCD display; 6. Excellent performance and price ratio; 7. Automatic correction function; 8. Adjustable integration time; 9. Sensitivity adjustable; 10. Fault alarm function; 11. Hanging weighing function; 12. De-tare weight function; 13. Accumulated weighing function; 14. Weighing unit conversion (grams, carats, ounces); 15. Counting function; 16. Printing function.
Principle
The Electronic Balance is controlled by a high-performance MCS-51 single-chip microprocessor, detects the weight signal through the Sensor, displays the result after processing by the microprocessor, and supports RS232C standard output to realize data transmission with external devices.
Applications
Laboratory mass analysis, scientific research weighing, industrial testing, educational experiments
Standards
RS232C standard
Steps
1. Turn on the power supply (220V/50Hz +/- 1Hz); 2. Place the pan (size φ 80mm); 3. Perform automatic correction; 4. Set the integration time and Sensitivity; 5. Start weighing (range 0~ 1000g, accuracy 1mg); 6. Use the functions of de-tare weight, accumulation, counting or unit conversion; 7. Connect external devices to output data through the RS232C interface.
Notice
• Ensure Power frequency is 220V/50Hz +/- 1Hz; • Avoid overload use (Capacity 1000g); • Regularly perform automatic correction to ensure accuracy; • Clean the pan after use; • Check RS232C interface compatibility when connecting external devices; • Pay attention to Balance net weight 6.8kg, handle with care when handling.
