Overview

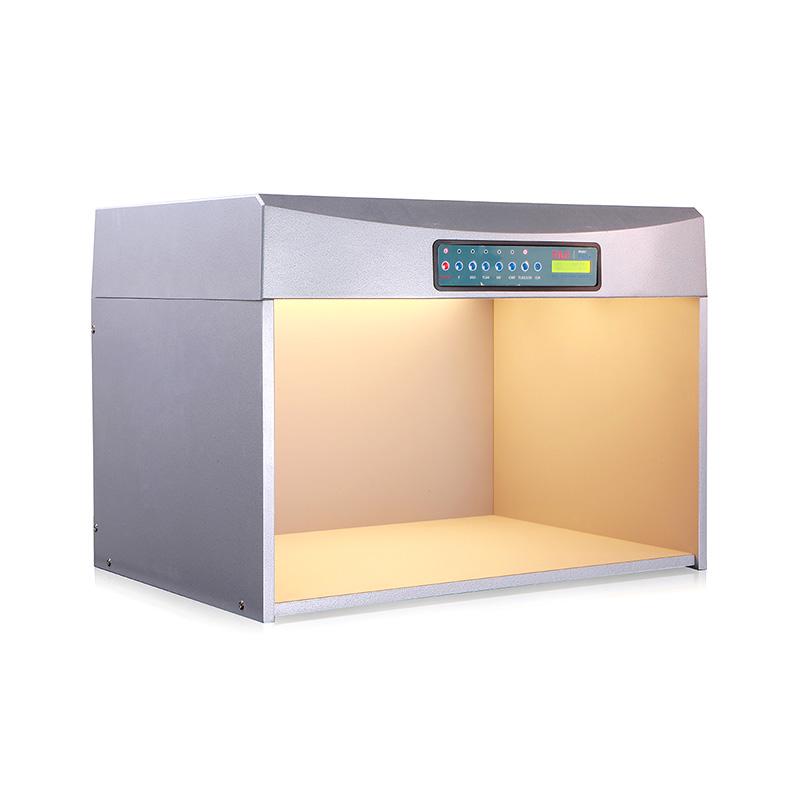

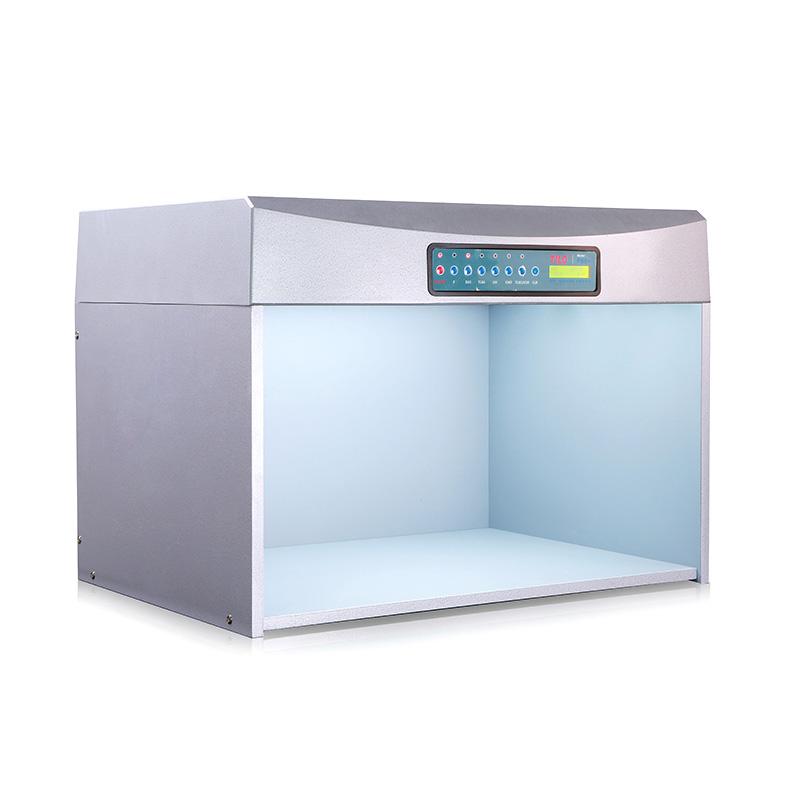

TILO Color-60 Eight Illuminant Color Assessment Cabinet is a professional Color Assessment Equipment, equipped with a complete set of British and American standards commonly used Illuminants, including D65, TL84, CWF, F, UV, U30, A, TL83 eight Illuminants. Dimensions are 710 * 530 * 570mm, weight 38Kg, Power frequency 220V, Optional accessories are 45 degree standard stands.
Features
1. Display the usage time, name and number of switches of each Illuminant
2. Illuminant automatic switching, with Metamerism function
3. No preheating, no flashing, can ensure fast and reliable evaluation of Color
4. Low energy consumption, no heat (no heat dissipation required), high luminous efficiency
5. Configure a complete set of British and American standard commonly used Illuminants
6. Contains American Standard A Illuminant and 30U Illuminant
7. Illuminant name can be changed, it is more convenient to replace Illuminant
8. TAYOLE high standard brand
Principle
The Color Assessment Cabinet simulates a variety of standard lighting environments with eight professional Illuminants built in at different color temperatures and wavelengths. The Illuminant auto-switching function ensures Color contrast evaluation under different standard illuminants, providing stable non-flickering lighting without preheating for fast and reliable Color evaluation.
Applications
Color assessment, Colorimetric reference, product quality control, Spinning & weaving apparel, printing Encasement, paint paints, plastic products, cosmetics, automotive interiors, household goods
Standards
International standards, European standards, American standards, Chinese standards
Steps
1. Connect the 220V power supply
2. Select the desired Illuminant Mode
3. Place the sample to be tested in the observation area
4. Color comparison and evaluation
5. Power off after use
Notice
• Please use 220V standard Power frequency
• Avoid use in humid environments
• Regularly clean the inside of the light box to maintain the Illuminant effect
• Please follow the instructions when replacing the Illuminant
• Avoid strong vibration or impact on the equipment when using
