Overview

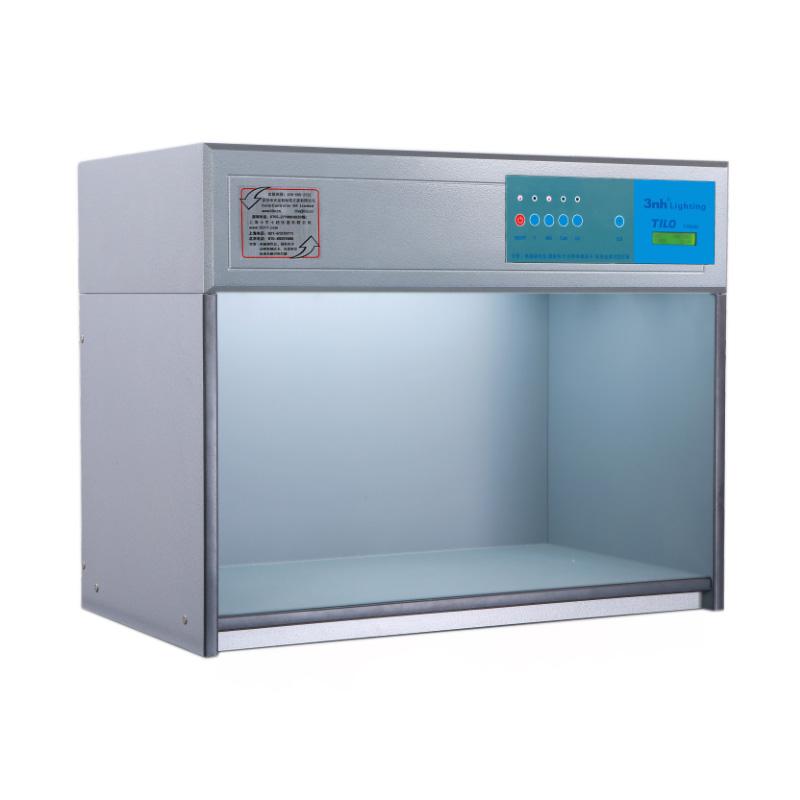

The TILO T60B standard illuminant Color Assessment Cabinet is a professional color proofing device equipped with a variety of standard illuminants, suitable for color management in multiple industries. The light box uses British Type 60 original tubes to ensure base color compatibility and provide an accurate Color evaluation environment.
Features
1. Display the usage time, name and number of switches of each Illuminant
2. Illuminant automatic switching, with Metamerism function
3. No preheating, no flashing, can ensure fast and reliable evaluation of Color
4. Low energy consumption, no heat (no heat dissipation required), high luminous efficiency
5. Equipped with the original British 60 lamp, the base color is fully compatible
Principle
The light box simulates different lighting conditions by building a variety of standard illuminants (such as D65, TL84, F, UV, etc.), and automatically switches the Illuminant to provide a stable lighting environment. The Metamerism function ensures accurate calibration of Color deviation under different Illuminants for reliable Color management.
Applications
Spinning & weaving, toys, printing and dyeing, plastics, paints, inks, printing, pigments, chemicals, Pottery and porcelain, footwear, leather, Hardware, food, cosmetics
Steps
1. Connect the power supply and ensure that the voltage is 220V.
2. Turn on the light box power switch
3. Select Illuminants (such as D65, TL84, F, UV) as needed
4. Place the item to be tested in the light box or use Optional accessories 45 degree standard stand
5. Observe and proofread Color deviation
6. Turn off Illuminant and Power after use
Notice
• Power frequency is 220V to avoid overvoltage or undervoltage operation
• Check whether the Illuminant is working normally before use, and replace it in time if there is any abnormality
• Avoid use in humid or dusty environments to prevent equipment damage
• Regularly clean the inside of the light box, keep the Illuminant clean to ensure accuracy
• Do not look directly at the Illuminant during operation to avoid eye discomfort
• Optional accessories 45-degree standard stands need to be installed and used correctly
