Overview

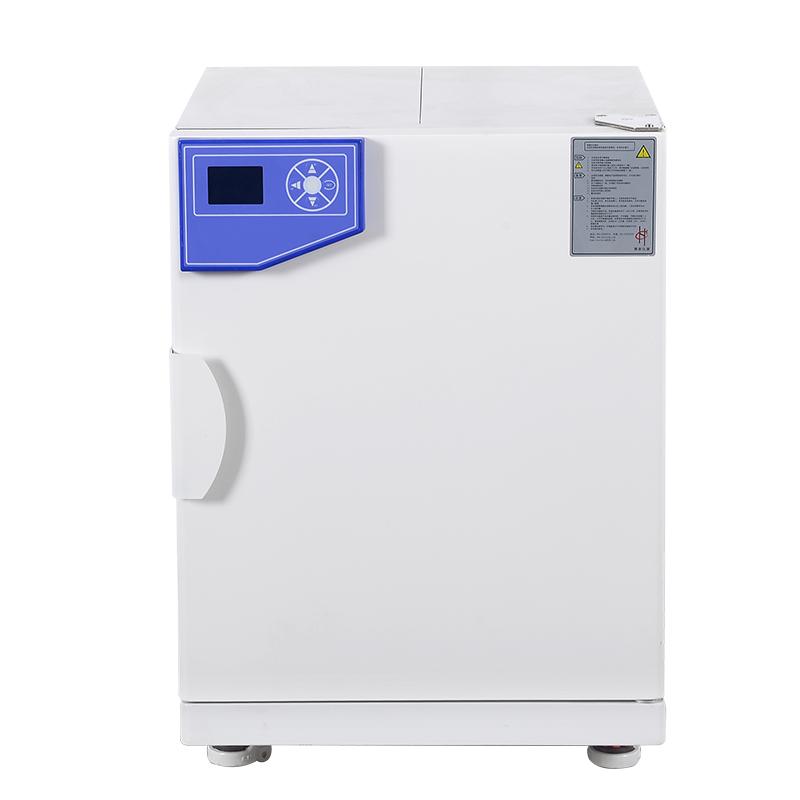

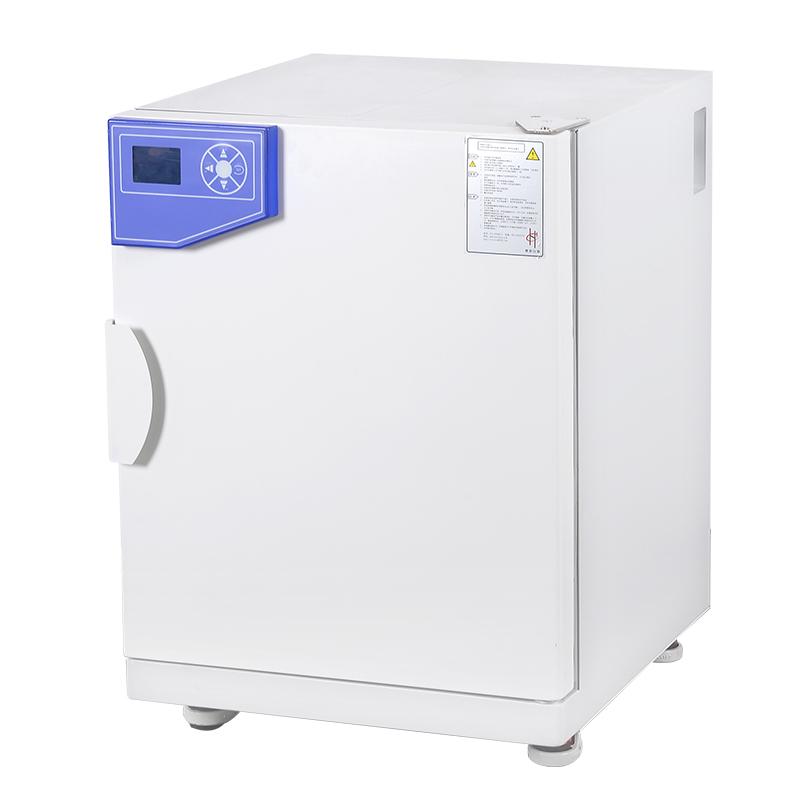

HUITAI DHP-9052N Thermostatic Incubator is a device specially designed for Universities & colleges, biology, agriculture, scientific research and other departments for storing bacteria, biological fostering and scientific research experiments. The product adopts advanced technology to ensure accurate and stable temperature control.
Features
1. Large-screen LCD display, multiple sets of data are displayed on one screen, and the menu-type operation interface is simple and easy to understand.

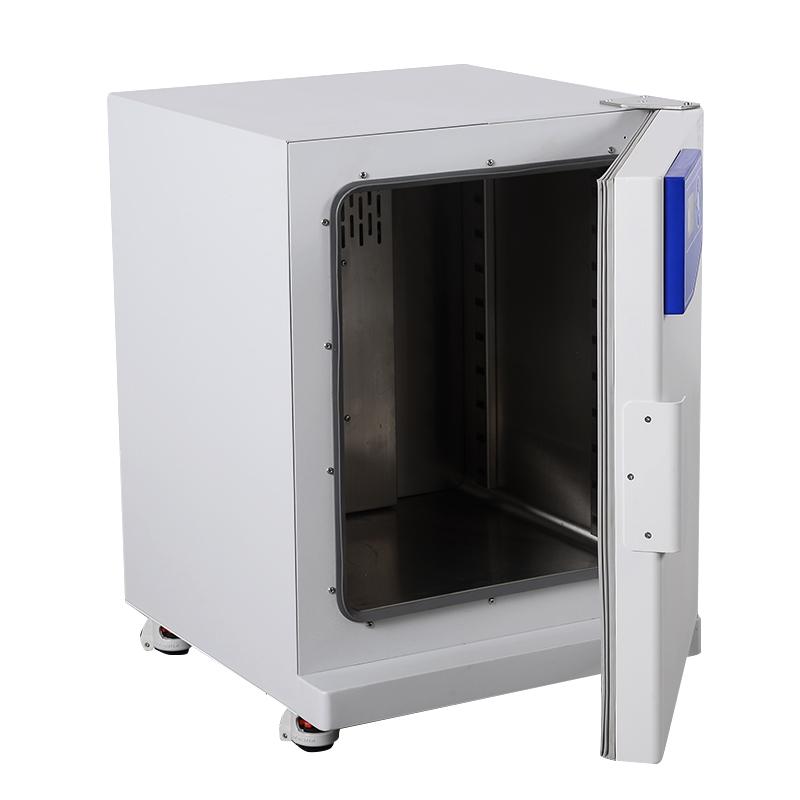

2. Double-decked door structure, good thermal insulation performance, observation box does not affect the temperature.
3. Mirror stainless steel liner, diagonal air duct structure to ensure uniform temperature, four corners and a half arc easy to clean, shelf spacing adjustable.
4. The surface of the box is sand blasting, which is not easy to scratch and easy to clean.
5. Electric heating film heating method, fast heating speed.

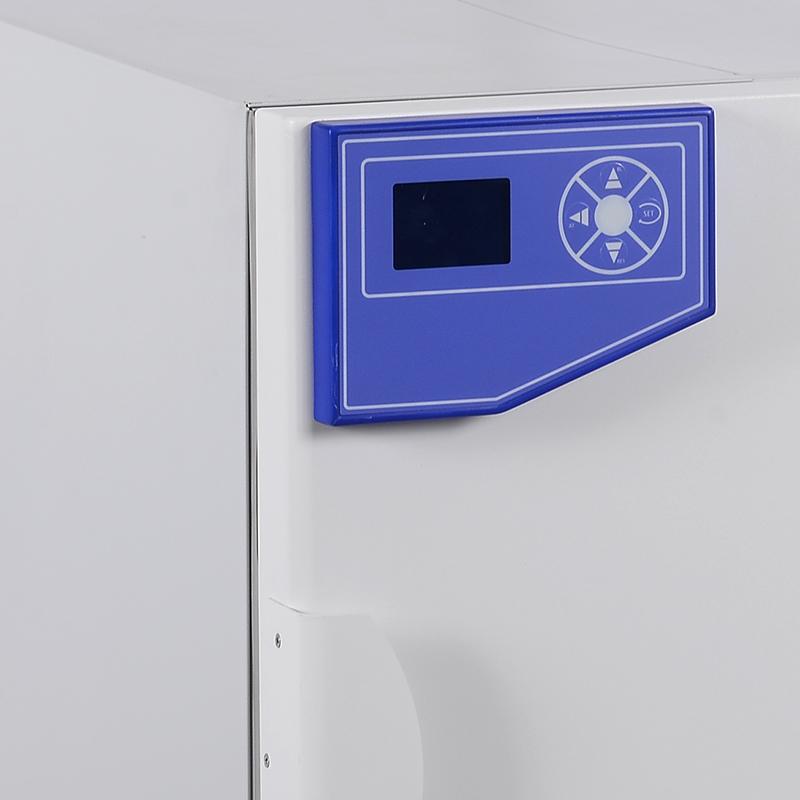

6. The instrument control is placed in the upper left corner of the door panel, which is beautiful and space-saving.
7. Equipped with 4 movable casters for easy movement.
8. Optional independent temperature limit alarm system, exceeding the limit temperature automatically interrupts to ensure safety.
9. Optional RS485 interface is available to connect the recorder and computer to record temperature parameter changes.
Principle
The electric thermostatic incubator quickly heats up through electric heating film heating, and adopts mirror stainless steel liner and diagonal air duct structure to ensure uniform temperature distribution in the box. The control system precisely adjusts the temperature through large-screen LCD display and menu interface, and can be equipped with an independent temperature limit alarm system to automatically interrupt the heating when it exceeds the temperature to ensure the safety of the experiment.
Applications
Universities & colleges, biology, agriculture, research departments
Steps
1. Connect the power supply AC220V 50HZ.
2. Set Temperature range RT + 5~ 65 ℃, Timer Range 1-9999min and other parameters through large screen LCD display and menu interface.
3. Place the sample on an adjustable spacing shelf.
4. Start the device, monitor temperature changes, and optional recorder to record data.
5. Turn off the power after the experiment and clean the liner.
Notice
• The performance parameter test is carried out under no-load, no strong magnetic, no vibration conditions, Ambient Temperature 30 ℃, humidity 50% RH.
• Power frequency AC220V 50HZ before use.
• Regularly clean the mirror stainless steel liner to avoid scratches.
• Use casters when moving to avoid violent vibrations.
• Optional independent temperature limit alarm system to enhance safety and prevent over-temperature accidents.
