Overview

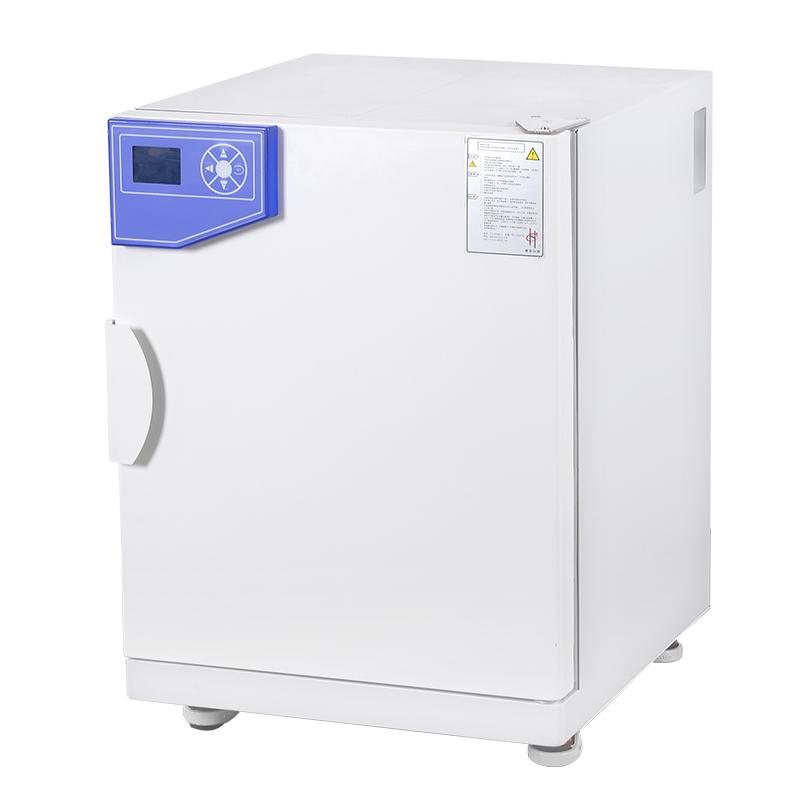

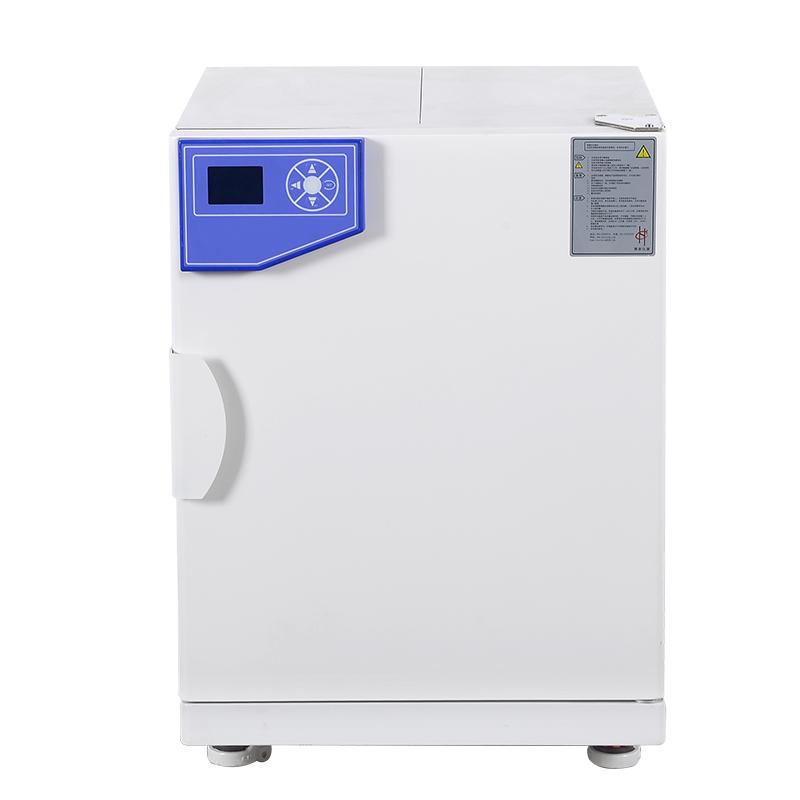

HUITAI DHP-9272N electric thermostatic incubator is a device specially designed for Universities & colleges, biology, agriculture, scientific research and other departments for storing bacteria, biological fostering and scientific research experiments. The product adopts advanced technology to ensure accurate temperature control, reasonable structure design and convenient operation.
Features
1. Large-screen LCD display, multiple sets of data are displayed on one screen, and the menu-type operation interface is simple and easy to understand.
2. Double-decked door structure, good thermal insulation performance, observation box does not affect the temperature.

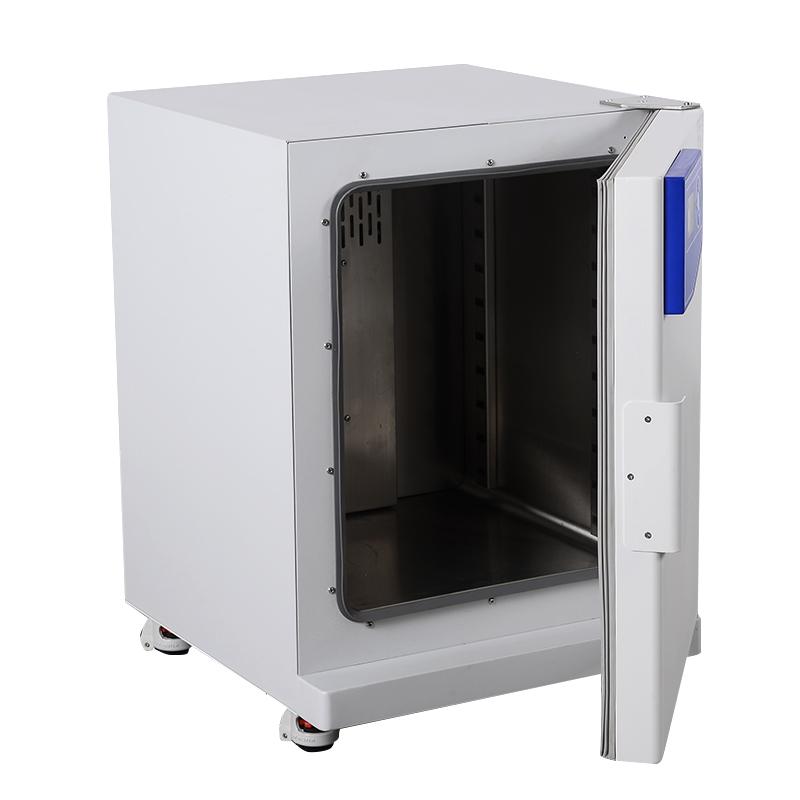

3. Mirror stainless steel liner, diagonal air duct structure to ensure Temperature Uniformity, four corners and a half arc easy to clean, shelf spacing adjustable.
4. The surface of the box is sand blasting, which is not easy to scratch and easy to clean.
5. Electric heating film heating method, fast heating speed.

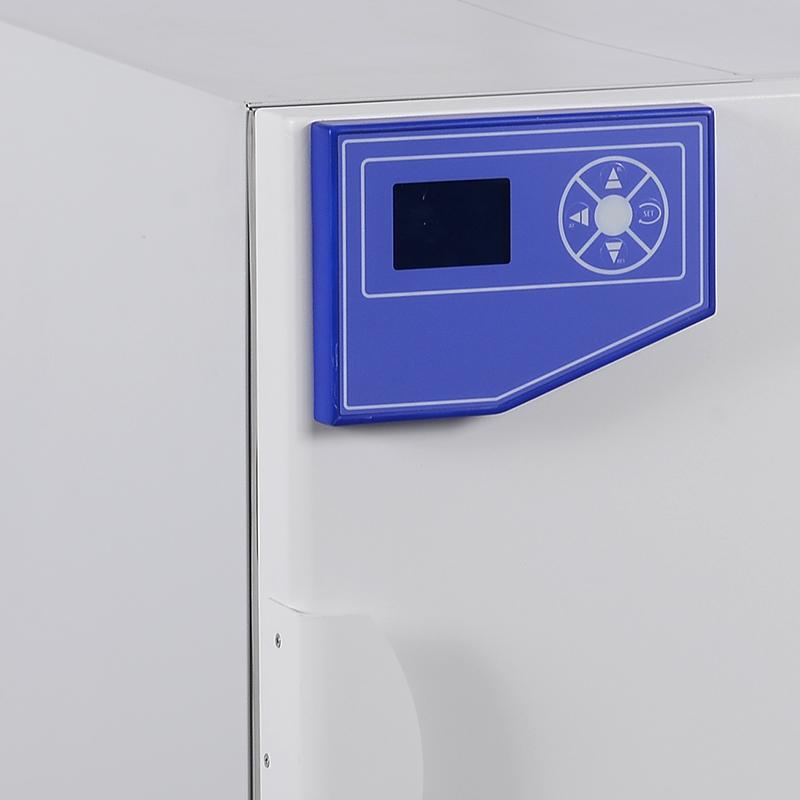

6. The instrument control is placed in the upper left corner of the door panel, which is beautiful and space-saving.
7. Equipped with 4 movable casters for easy movement.
8. Optional independent temperature limit alarm system, exceeding the limit temperature automatically interrupts to ensure safety.
9. Optional RS485 interface to connect the recorder and computer to record temperature parameter changes.
Principle
The electric thermostatic incubator quickly heats up through electric heating film heating, and adopts mirror stainless steel liner and diagonal air duct structure to ensure uniform temperature distribution in the box. The instrument control system precisely adjusts the temperature, and the optional independent temperature limit alarm system automatically interrupts the heating when it exceeds the temperature to ensure the safety of the experiment.
Applications
Universities & colleges, biology, agriculture, research
Steps
1. Connect the power supply AC220V 50HZ.
2. Set parameters such as temperature and timing through the large-screen LCD display menu.
3. Place the sample on the adjustable spacing shelf.
4. Start the equipment for heating and thermostatic control.
5. Optional connection to RS485 interface to record data.
6. Turn off the power after the experiment.
Notice
• The performance parameter test is carried out under no-load, no strong magnetic, no vibration conditions, Ambient Temperature 30 ℃, humidity 50% RH.
• Make sure the Power frequency matches AC220V before use.
• Avoid operating in a strong magnetic or vibration environment, so as not to affect the accuracy.
• Regularly clean the surface of the liner and box to keep the equipment hygienic.
• Optional accessories such as an independent temperature limit alarm system require additional configuration to enhance safety.
