Overview

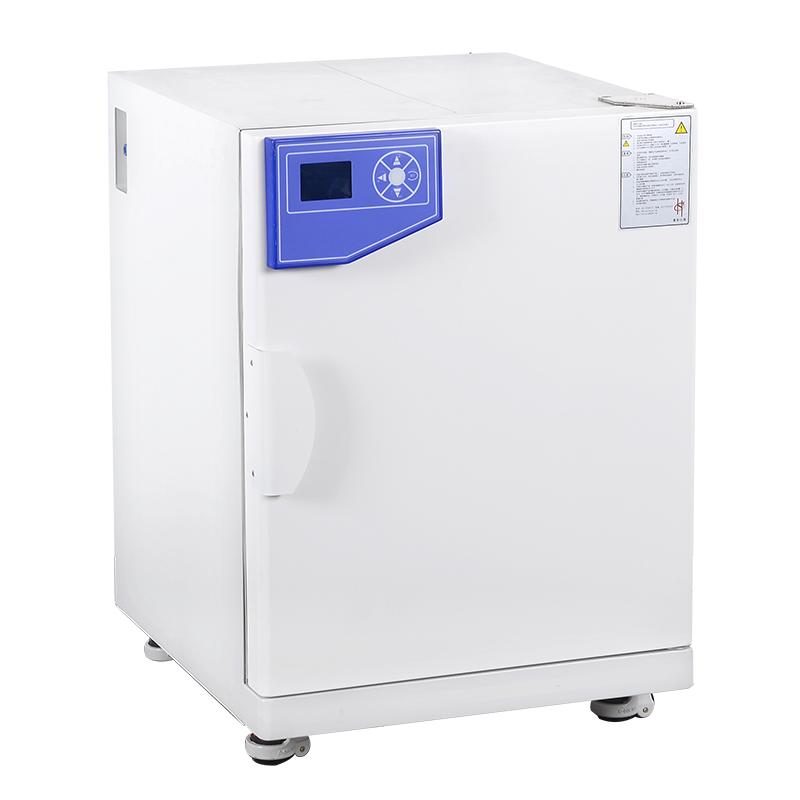

HUITAI GMP-9160N Water-Jacketed thermostatic incubator is suitable for scientific research or production departments such as biochemistry and agricultural science, for thermostatic experiments such as cell fostering and fermentation. The product adopts Water-Jacketed heating method, which has the characteristics of uniform temperature and long holding time after power failure.
Features

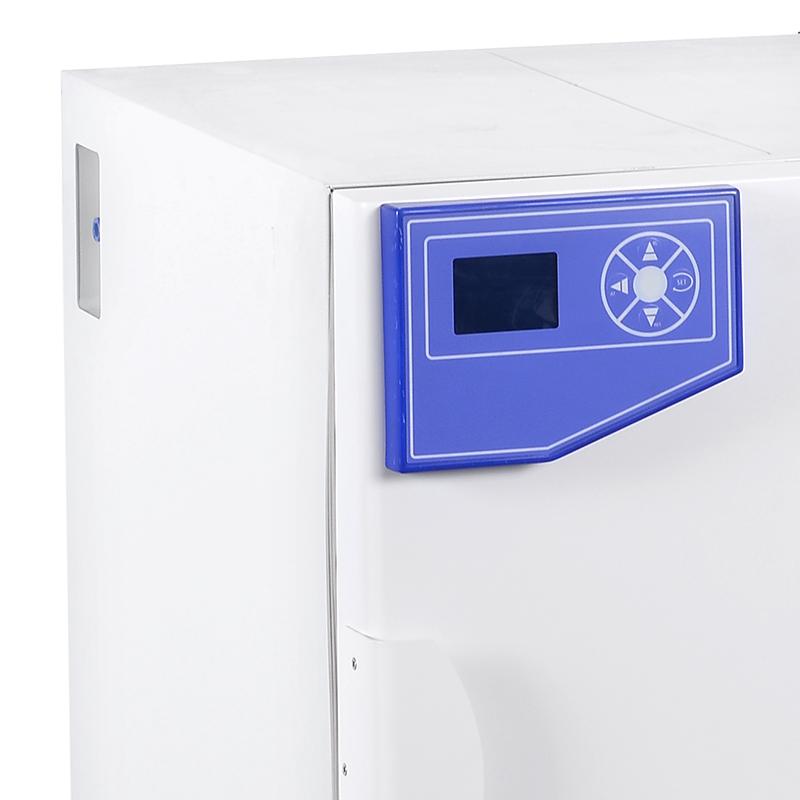

1. Large-screen LCD display, multiple sets of data are displayed on one screen, and the menu-type operation interface is simple and easy to understand
2. Independent design of pressure equilibrating intake to avoid pumping backwards caused by adding water too quickly
3. Double-decked door structure, good thermal insulation performance, observation box does not affect the temperature
4. Diagonal air duct structure in the box, effectively ensuring Temperature Uniformity
5. Water-Jacketed heating method, uniform temperature, can keep thermostatic for a long time after power failure

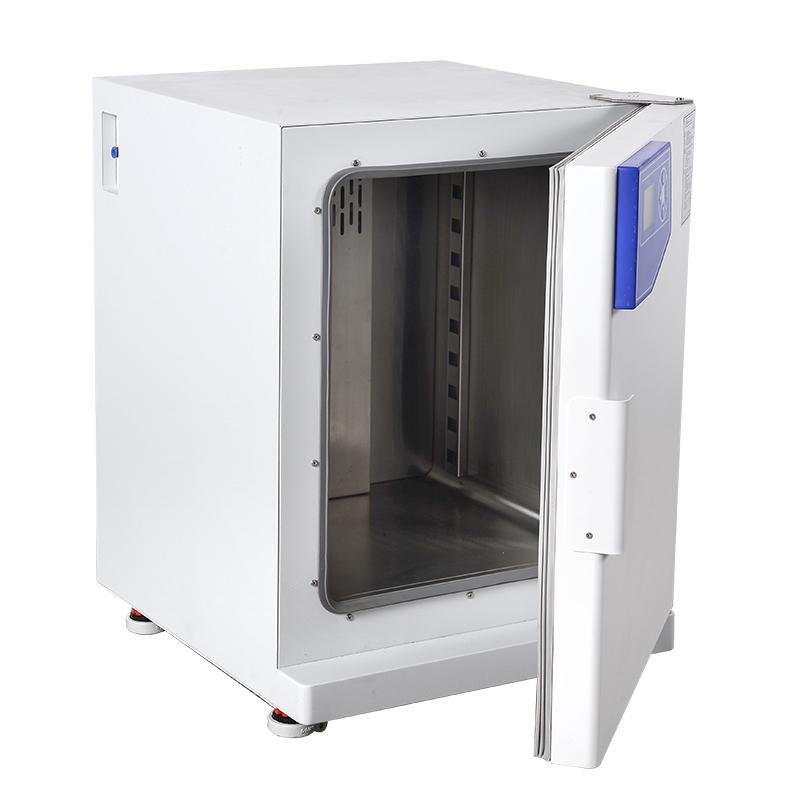

6. Mirror stainless steel liner, four corners and half arc design is easy to clean, shelf spacing is adjustable
7. Box surface sand blasting treatment, not easy to scratch, easy to clean

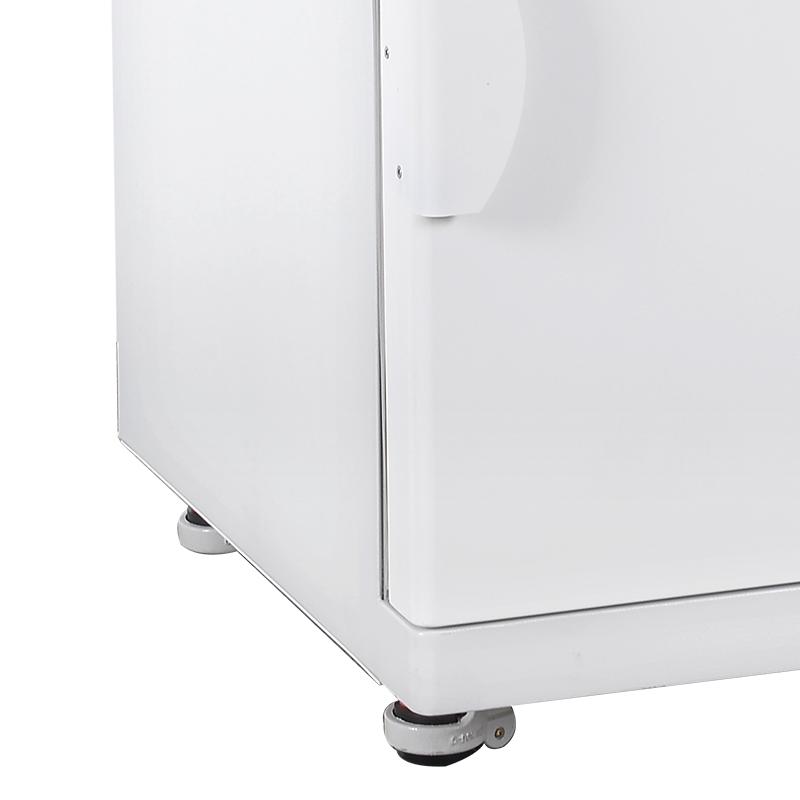

8. Equipped with 4 mobile casters for easy movement
9. PID control mode, automatic sound and light alarm when overtemperature or water level is abnormal, low water level stop heating
Principle
The water-jacketed heating method is adopted to achieve accurate control of the temperature in the box through the water-jacketed heating system. The PID control mode monitors and adjusts the temperature in real time. When the temperature in the box exceeds the set value or the water level of the water jacket is too high or too low, the system automatically issues a sound and light alarm and takes corresponding protective measures.
Applications
Biochemistry, agricultural science, cell fostering, fermentation experiment
Steps
1. Connect the AC220V 50Hz power supply
2. Set the temperature parameters through the large-screen LCD menu interface
3. Set Timer Range 1~ 9999 minutes
4. Start the device to start thermostatic operation
5. Monitor changes in temperature parameters, and if necessary, connect to a computer through RS485 or USB interface to record data
Notice
Equipment should be used in a non-magnetic, non-vibration environment
• Pay attention to the speed when adding water to avoid excessive pumping
• When the water level is low, the equipment automatically stops heating, and the water volume needs to be replenished in time
• Regularly clean the mirror stainless steel liner to maintain hygiene
• Use the equipped casters when moving the device to avoid violent vibration
