Overview

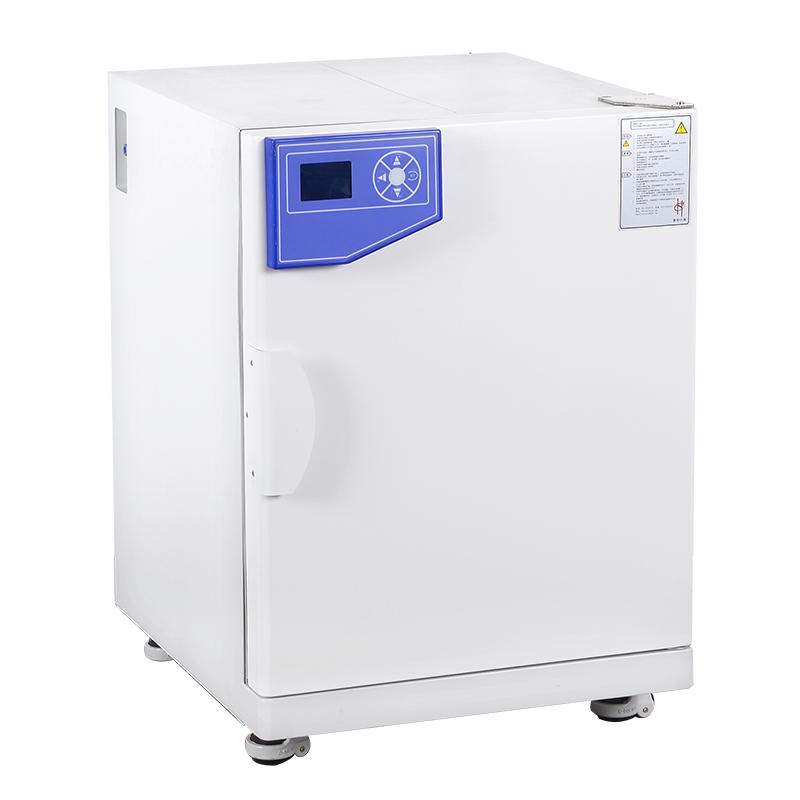

HUITAI GMP-9270N Water-Jacketed thermostatic incubator is suitable for scientific research or production departments such as biochemistry and agricultural science, for thermostatic experiments such as cell fostering and fermentation. The product adopts Water-Jacketed heating method, which has the characteristics of uniform temperature and long holding time after power failure. It is equipped with a large-screen LCD display and PID control to ensure the stability and safety of the experiment.
Features

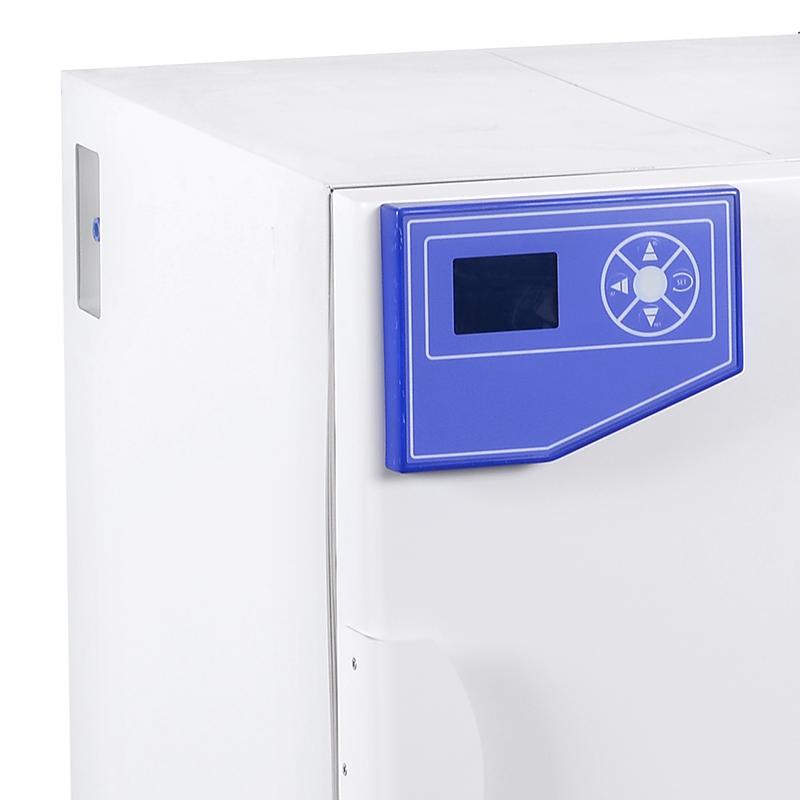

1. Large-screen LCD display, multiple sets of data are displayed on one screen, and the menu-type operation interface is simple and easy to understand.
2. Independent design of pressure equilibrating intake to avoid pumping backwards caused by adding water too quickly.
3. Double-decked door structure, good thermal insulation performance, observation box does not affect the temperature.
4. Diagonal air duct structure in the box to ensure Temperature Uniformity.
5. Water-Jacketed heating method, the temperature is uniform, and it remains thermostatic for a long time after power failure.

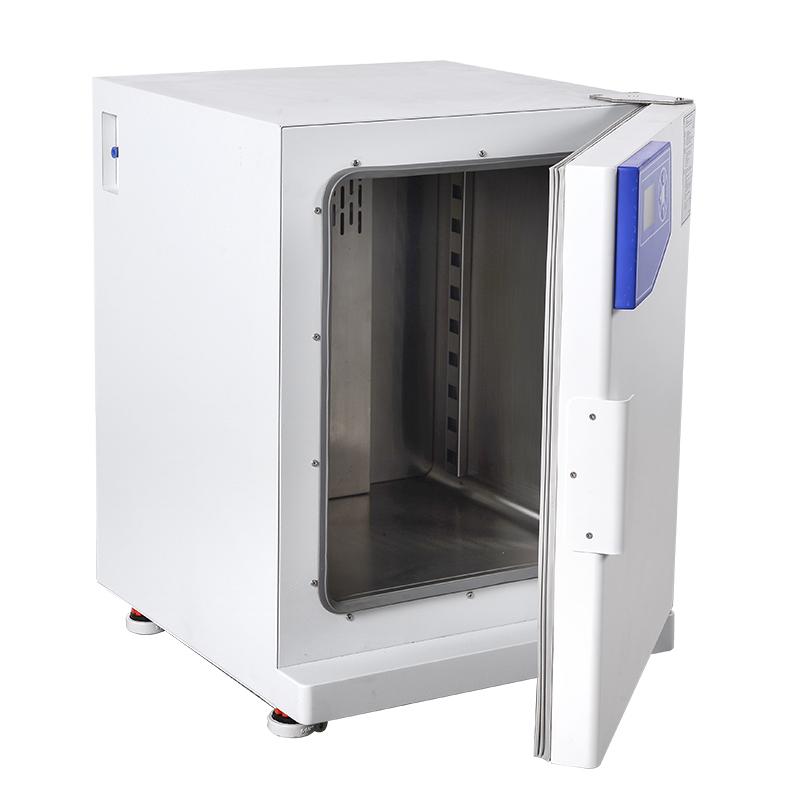

6. Mirror stainless steel liner, four corners half arc design easy to clean, shelf spacing adjustable.
7. The surface of the box is sand blasting, which is not easy to scratch and easy to clean.

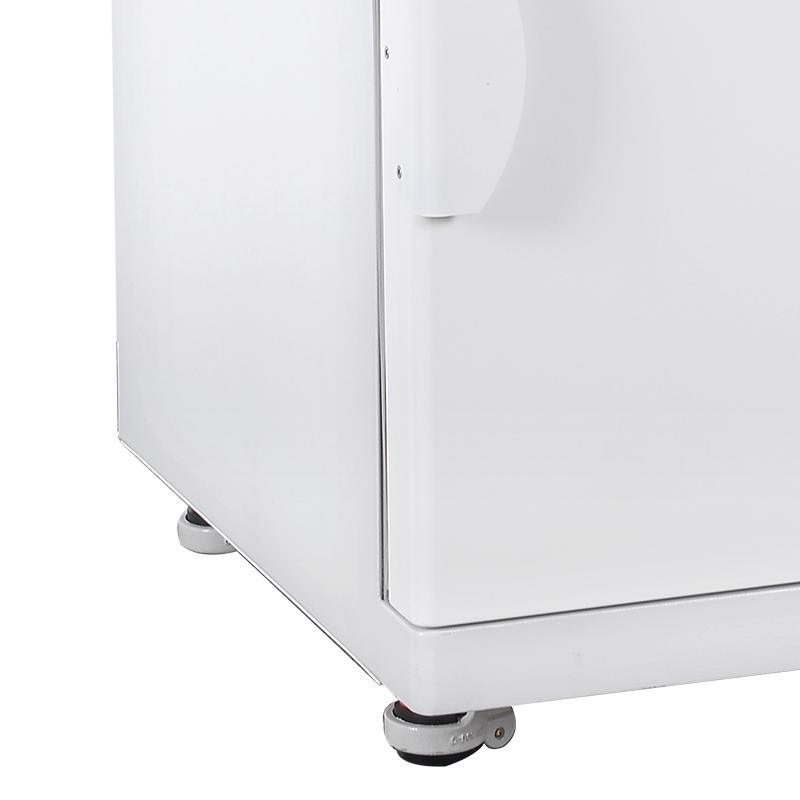

8. Equipped with 4 movable casters for easy movement.
9. PID control mode, automatic sound and light alarm when the temperature exceeds the limit or the water level is abnormal, and the low water level stops heating.
10. Optional independent temperature limit alarm system, automatic interruption over temperature to ensure safety.
11. Optional RS485 or USB interface, connect to a computer or printer to record temperature parameters.
Principle
The incubator adopts Water-Jacketed heating method, realizes temperature control through Water-Jacketed heating system, and precisely adjusts the temperature in the box combined with PID control algorithm. The diagonal air duct structure in the box promotes air circulation and ensures uniform temperature distribution. At the same time, the pressure equilibrate intake prevents reverse pumping and maintains a stable experimental environment.
Applications
Biochemistry, agricultural science, cell fostering, fermentation experiment
Steps
1. Connect the power supply to AC220V 50Hz.
2. Set the temperature parameters and Timer Range (1~ 9999min) through the large-screen LCD menu.
3. Adjust the shelf spacing in the box to meet the experimental needs.
4. Start the equipment and monitor temperature fluctuations and uniformity.
5. Optional connection to a computer or printer to record data.
Notice
• Avoid use in strong magnetic or vibration environments to avoid affecting performance.
• Pay attention to the speed when adding water to prevent excessive pumping.
• Check the water level regularly, and the equipment will automatically stop heating when the water level is low.
• Pay attention to sound and light alarms when overheating, and deal with them in time.
• Use mirror stainless steel liner and sand blasting surface when cleaning to ensure hygiene.
• Use casters when moving to avoid violent collisions.
