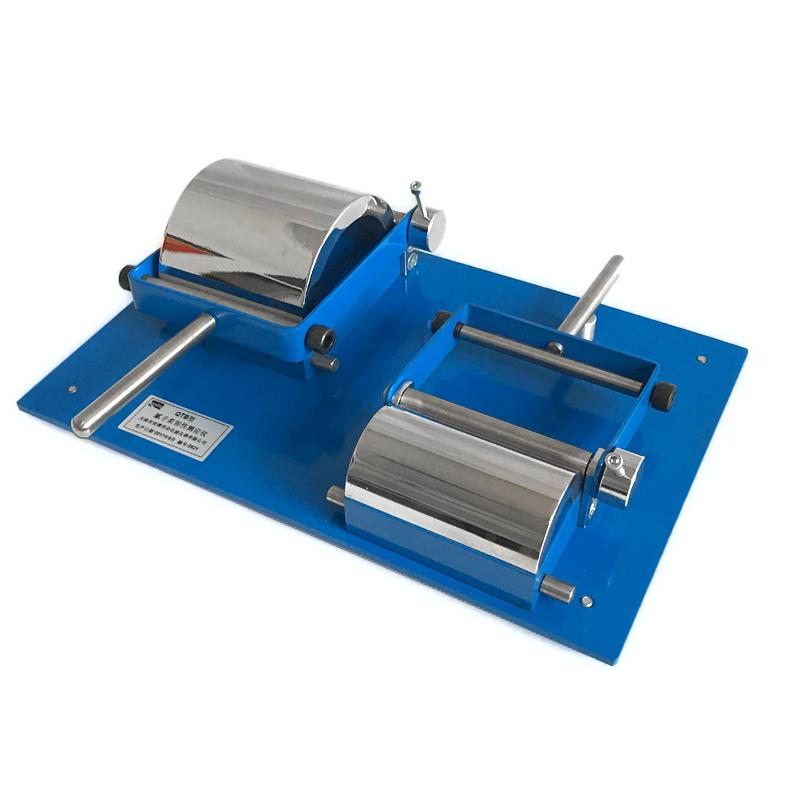

SHIBO QTB Putty flexibility Tester Coating painting film bending test

Name: SHIBO QTB Putty flexibility Tester Coating painting film bending test
Brand: SHIBO
SKU: NB024730
Price: 171.0 USD
Availability: InStock

$ 171.00Ex works

Equipped with R25 and R50 two kinds of support film specifications, support 0.2-0 mm tinplate test plate substrate, through the rolling shaft uniform bending deformation, easy to observe the physical changes of the film.

Model

Get Quote

Category : Flexibility Tester

Brand : SHIBO

SKU : NB024730

Service :The delivery and service By NBCLab.Com

Overview

SHIBO QTB putty flexibility tester is a special testing equipment designed and developed according to the standard requirements of the Ministry of Chemical Industry. It is widely used in the paint painting industry to judge the crazing and peeling phenomenon of putty film after bending. The instrument has a reasonable structure and is convenient and reliable to use.

Features

1. Meet the requirements of national standard GB/T1748-79 2. Provide two specifications of R25 and R50 support films 3. Reasonable structure design and easy operation 4. Reliable to use and easy to maintain

Principle

The instrument is mainly composed of two parts: pressing frame and demoulding. When using, first place the pressing roller handle and the pressing frame at the back end of the supporting die, so that the supporting film is completely exposed, then insert the sample into the small groove at the back end of the supporting film and use the pressing handle to press one end of the sample plate with the eccentric shaft, then remove the pressing frame and make the sample plate bend and deform evenly along the surface of the supporting film through the rolling shaft on the pressing frame. The pressing frame is moved to the location of Xiao, and finally observe the physical changes on the surface of the sample putty film.

Applications

Paint painting industry

Standards

GB/T1748-79

Steps

1. Place the pressing roller handle and press rack at the back end of the die to fully expose the die 2. Insert the sample into the small slot at the back end of the support film 3. Use the pressing handle to press the eccentric shaft against one end of the sample 4. Move the press down and bend the sample evenly along the surface of the supporting film through the rolling shaft on the press 5. Move the pressing frame to the location of Xiao 6. Observe the physical changes on the surface of the sample putty film

Notice

• Please wipe off the surface dirt when the instrument is stopped. • The rotating part needs to be lubricated with 40 #oil • Should be stored in a ventilated drying environment • Test substrate Film thickness should be 0.2-0 • Test plate substrate material should be tinplate

Meet the standard
GB/T1748-79
support film
R25 R50
Film thickness of test substrate
0.2-0.3mm
Test substrate material
Tackle iron plate
