Overview

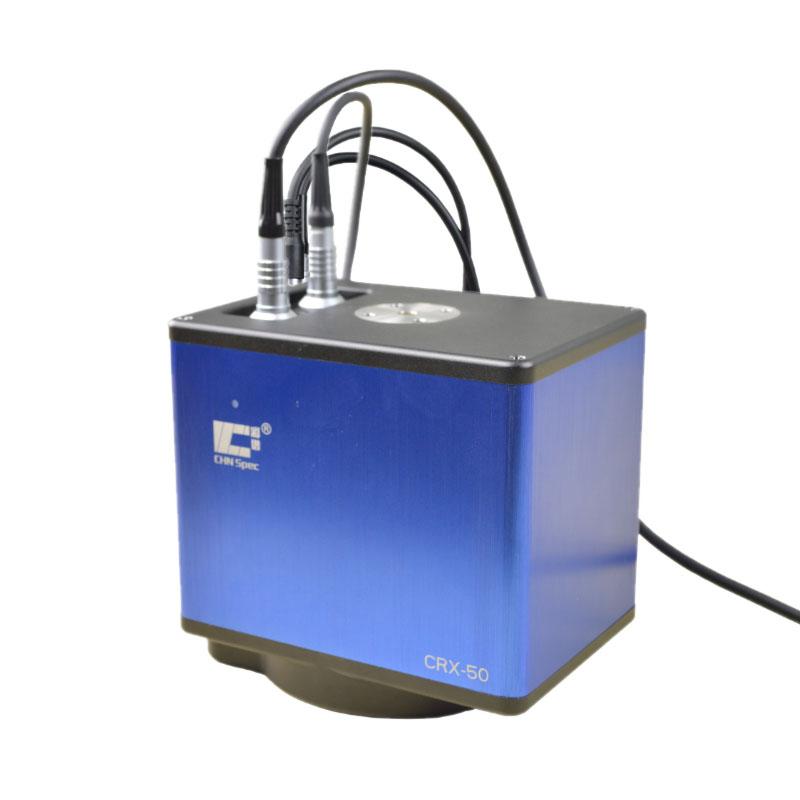

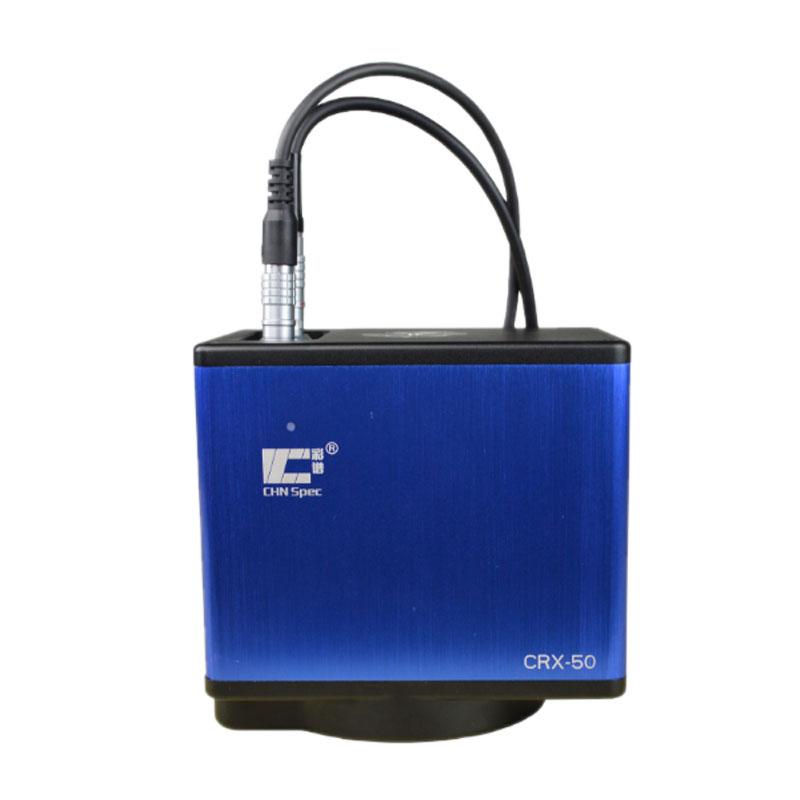

CRX-50 is an online color measuring instrument of CHNSPEC brand. As a non-contact online Color measuring instrument commercialized in China, it is suitable for laboratory measurement and online measurement Reflection spectrum and chroma data. Laboratory measurement is suitable for cosmetics, wet-film of paints/inks, and non-contact Color measurement of cultural and antiques without polluting and destroying samples; Online measurement can continuously obtain product Color data, optimize production and processing processes, ensure product mass, and adjust production parameters in real time to save costs and improve production efficiency.
Features
1.45/0 Light spectrum Color measurement under illumination observation conditions
2. Non-contact measurement, the distance from the measured plane is 7.5mm
3. Unafraid of the fluctuation of the measured surface, the fluctuation range of +/- 3mm can still ensure the accuracy of measurement
4. Built-in auto calibration, no human intervention required
5. Light spectrum LED as measurement Illuminant, worry-free life
6. Ultra-high speed measurement, measurement time 20ms
7. Automatic Gloss Compensation Technology (Patent No.: ZL201310511357.1)
8. Innovative spectroscopic technology SCS Optical inspection engine (patent number: ZL201210337619.2)
9. Color management software as standard
10. Measurement verification report
Principle
The CRX-50 in-line colorimeter uses 45 °/0 ° illumination observation conditions for non-contact measurement using the Full Light spectrum LED Illuminant and Dual Path Array Sensor. The innovative SCS Optical inspection engine (Single Grating Dual Path Spectroscopic System) and automatic Gloss compensation technology ensure accurate measurement of the material surface Color, with a measurement distance of 7.5mm +/- 3mm and High Accuracy in the fluctuation range.
Applications
Cosmetics, paints/inks wet-film, antiques
Standards
ASTM E313-00、ASTM E313-73、CIE/ISO、AATCC、Hunter、Taube Berger Stensby、ASTM D1925、ASTM E313
Steps
1. Place the instrument on the measured plane and maintain a measurement distance of 7.5mm
2. Start measurement, instrument auto calibration and acquire Color data
3. Analyze data through Color Management software, compare Color differences and generate test reports
4. Adjust production parameters or record laboratory data based on measurement results
Notice
• The measurement distance should be controlled within the range of 7.5mm +/- 3mm
• Ambient Temperature should be between 0 ℃ -45 ℃, relative humidity should not exceed 80% (35 ℃) and no condensation
• Storage Ambient Temperature should be between -25 ℃ -55 ℃, relative humidity should not exceed 80% (35 ℃) and no condensation
• Make sure the instrument is calibrated before use
• Avoid use in strong electromagnetic interference environments
