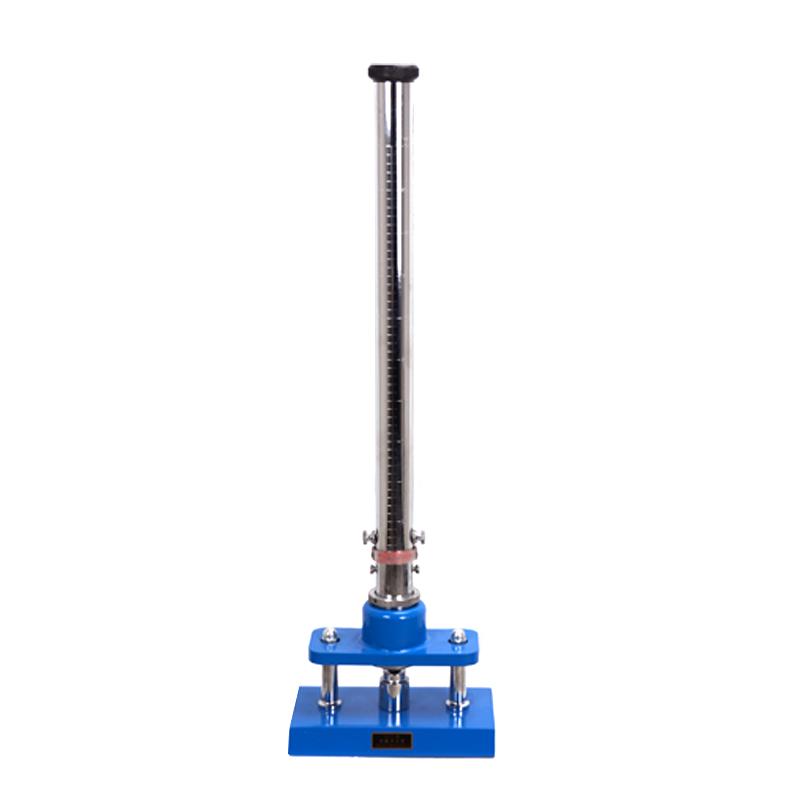

YONGLIDA QCJ-100 film Impact Tester, Impact Tester 0-100cm Impact Height

Name: YONGLIDA QCJ-100 film Impact Tester, Impact Tester 0-100cm Impact Height
Brand: YongLiDa
SKU: NB024808
Price: 240.0 USD
Availability: InStock

$ 240.00Ex works

Impact height range is adjustable from 0-100cm, equipped with 1000g drop weight and Φ 8mm punch, accurate impact testing is achieved through mechanical structure, and the operation is stable and reliable.

Model

QCJ-100

Get Quote

Category : Film Impact Tester

Brand : YongLiDa

SKU : NB024808

Service :The delivery and service By NBCLab.Com

Overview

YONGLIDA QCJ-100 film Impact device is a special test equipment designed according to the national standard GB/T1732 "film impact resistance determination method", which is used to determine the film impact resistance performance.

Features

1. Impact height adjustable range 0~ 100cm 2. Drop weight mass 1000g 3. Punch diameter φ 8mm 4. Height positioning is accurate and readable 5. Easy and reliable operation

Principle

The controller screws by the weight is fixed at the desired height, pressing the controller screws to compress the controller spring, the controller slider hole and the controller cover and the bottom of the circular hole aligned with the hook, the impact of the weight falling punch rod, punch rod acting downwardly on the pillow pad test plate, lifting the weight body after completing the impact test, the sample was taken out to observe the film test.

Applications

Impact performance of film

Standards

GB/T1732

Steps

1. Set the weight at the required height 2. Place the test sample on the pillow pad block 3. Press the controller screw to release the weight 4. The hammer falls and hits the punch 5. Lift the hammer body to take out the sample 6. Observe the film test

Notice

• Check whether all parts of the equipment are in good condition before use • Make sure the heavy hammer is firmly fixed before operating • Impact height should be accurately set according to test requirements • The test sample should be placed flat on the pillow pad block • Pay attention to safety during operation to avoid accidental fall of the heavy hammer • Clean up the equipment in time after the test is completed

Impact height
0-100cm
Drop weight mass
1000±1g
Punch diameter
Punch steel ball diameter 8mm

[Q] Is the price listed on the website the final cost for overseas purchases?

[A] No, it isn't. This is the ex-factory price of the product in the Chinese Mainland. In addition to this price, buyers from different countries need to account for additional costs such as shipping fees, tariffs, and others. For specific regional quotes, please consult our customer service or fill out a quotation form.

[Q] What is the specific process for purchasing the product?

[A] First, please click on the quotation form on the website and fill in detailed information. Our customer service personnel will then send you a quotation based on your specific country and region, confirming payment and delivery methods. Following this, we proceed with contract signing, payment, and shipment. You can then await delivery.

[Q] What should I do if the instrument I purchase needs repair?

[A] After-sales repair for overseas instruments is an unavoidable issue. Our repair terms stipulate that the sender is responsible for the shipping and insurance costs incurred for the repair. Repairs within the warranty period are free, while repair costs beyond the warranty period are determined based on the actual situation.
