Overview

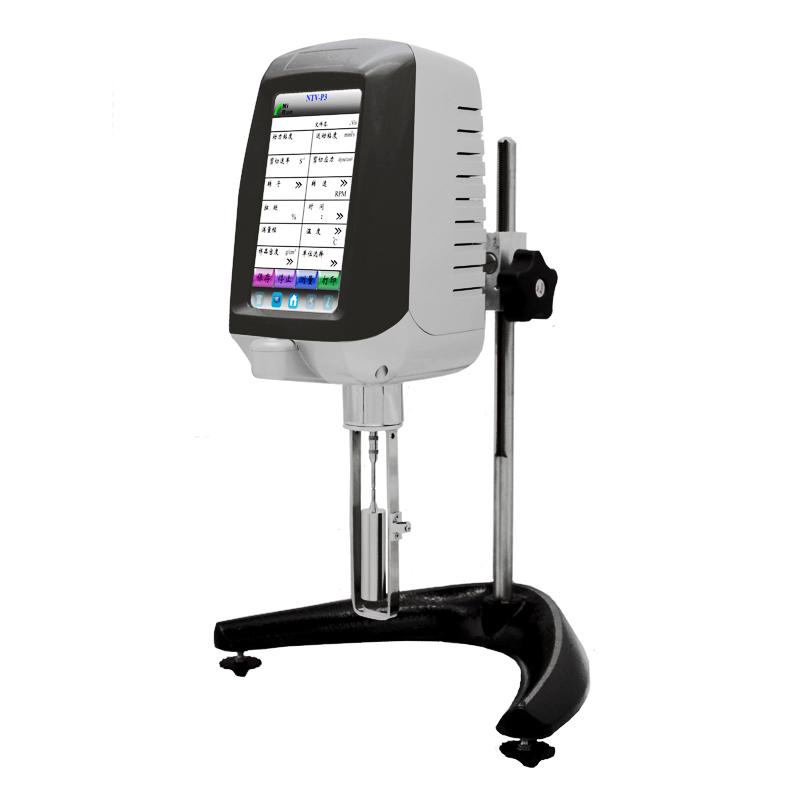

NIRUN NTV-HAS3 digital Viscometer is a precision measuring instrument with 7 inch wide Touchscreen and ARM chip processor, with anti-static housing and metal lifting rod design, the measurement range covers 200~ 26Mpa · s, suitable for a variety of fluid viscosity accurate measurement.
Features
1.7 inch wide Touchscreen, easy to operate, rich display information
2. Anti-static shell, metal lifting rod design
3. Built-in RTD Temperature Probe
4. ARM chip processor, faster data processing speed
5. Durable new small shaft design
6. Powerful human-machine interaction interface
7. Gigabit network port data communication transmission, fast and reliable data transmission
8. Support external U disk data storage; single point, continuous, timing three storage methods are optional
9. Password protection temperature and viscosity correction factor, allowing users to correct themselves with reliable and accurate data
10. Support stepless speed measurement viscosity, input any speed directly reflects the full scale of each rotor
11.Automatic conversion of dynamic viscosity and kinematic viscosity
12. Any exchange of various viscosity units
13. Interchange of a variety of user-friendly operation styles
14. Random with powerful operation wizard help
15. The viscosity value shows continuous change
16. There is an alarm sound beyond the measurement range
17. Computer full-scale linear correction
18. AC Power Adapter 100V-240V, good anti-interference
Principle
The digital Viscometer calculates the viscosity value by swirling/spinning the rotor in the fluid, measuring the resistance of the fluid to the rotor, the built-in RTD temperature Probe monitors the temperature in real time, and the ARM chip processes the data quickly for accurate viscosity measurement and unit conversion.
Applications
Inks, glues, latex, solvent adhesives, polymer solutions, petroleum, paints, solvents, cosmetics, milk products, pharmaceuticals, fruit juices
Steps
1. Connect the Power Adapter and turn it on
2. Select the appropriate rotor and install it
3. Set measurement parameters (such as speed, unit, etc.) through Touchscreen
4. Place the sample in the measurement position
5. Start the measurement and observe the viscosity value display
6. Save the data to the U disk or transfer it through the network port as needed
7. Clean the rotor and shut down after measurement
Notice
• Make sure the instrument is well grounded before use to prevent static interference
• Pay attention to range matching when selecting the rotor to avoid exceeding the measurement range
Periodically calibrate instruments to ensure measurement accuracy
• Use appropriate solvent when cleaning the rotor to avoid damage
• Pay attention to U disk compatibility and file format when storing data
• Follow the password protection settings during operation to prevent accidental modification of parameters
In case of alarm prompt, immediately check whether the measurement conditions are suitable
