Overview

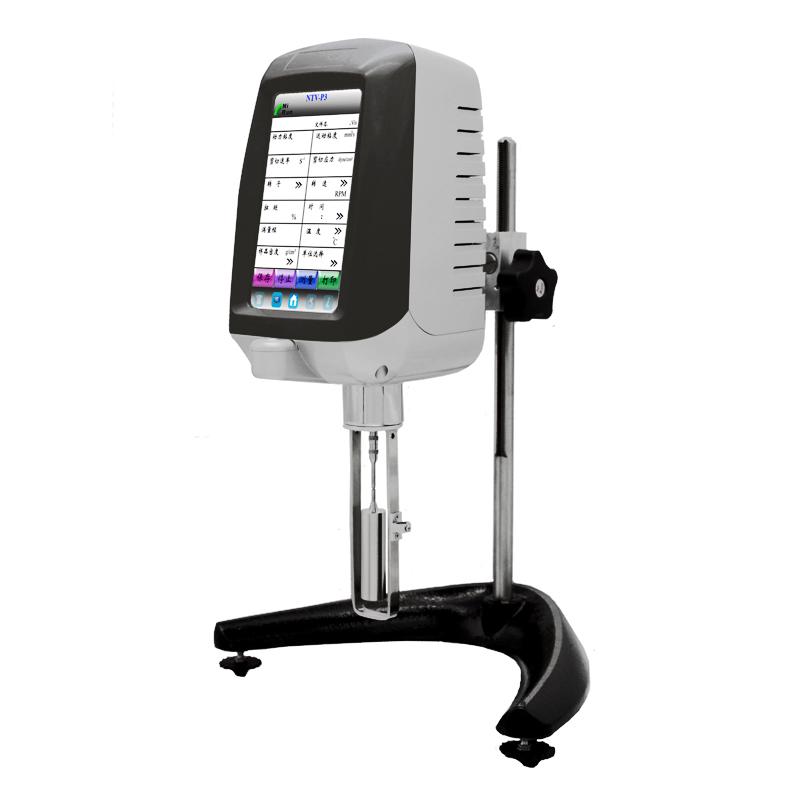

The NIRUN NTV-HBS3 digital Viscometer is a precision measuring instrument with a 7 inch wide Touchscreen and ARM chip processor, anti-static housing and built-in RTD temperature Probe for accurate measurement of viscosity in many fluids.
Features
1.7 inch wide Touchscreen, easy to operate, rich display information
2. Anti-static shell, metal lifting rod design
3. Built-in RTD Temperature Probe
4. ARM chip processor, faster data processing speed
5. Durable new small shaft design
6. Powerful human-machine interaction interface
7. Gigabit network port data communication transmission, fast and reliable data transmission
8. Support external U disk data storage; single point, continuous, timing three storage methods are optional
9. Password protection temperature and viscosity correction factor, allowing users to correct temperature and viscosity correction factor by themselves under the premise of reliable and accurate data
10. Support infinitely variable speed measurement viscosity, enter any one speed, directly reflect the full scale under each rotor, convenient for users to select test conditions
11.Automatic conversion of dynamic viscosity and kinematic viscosity
12. Any exchange of various viscosity units
13. Interchange of a variety of user-friendly operation styles
14. Random with powerful operation wizard help
15. The viscosity value shows continuous change
16. There is an alarm sound beyond the measurement range
17. Computer full-scale linear correction
18. AC Power Adapter 100V-240V, good anti-interference
Principle
The digital Viscometer calculates the viscosity value by swirling/spinning the rotor in the fluid, measuring the resistance of the fluid to the rotor, the built-in RTD temperature Probe monitors the temperature in real time, and the ARM chip quickly processes the data and displays the results.
Applications
Inks, glues, latex, solvent adhesives, polymer solutions, petroleum, paints, solvents, cosmetics, milk products, pharmaceuticals, fruit juices
Steps
1. Connect the power supply and turn it on.
2. Choose the right rotor and speed
3. Place the sample in the measurement position
4. Set measurement parameters through Touchscreen
5. Start measurement and read viscosity value
6. Save the data to the U disk or transfer it through the network port as needed
Notice
Make sure the instrument is placed on a stable surface
• Check whether the rotor is in good condition before use
• Avoid measurement of samples out of range
• Regularly clean rotors and measurement components
• Power frequency range 100V-240V
• Password protection function needs to be set carefully
