Overview

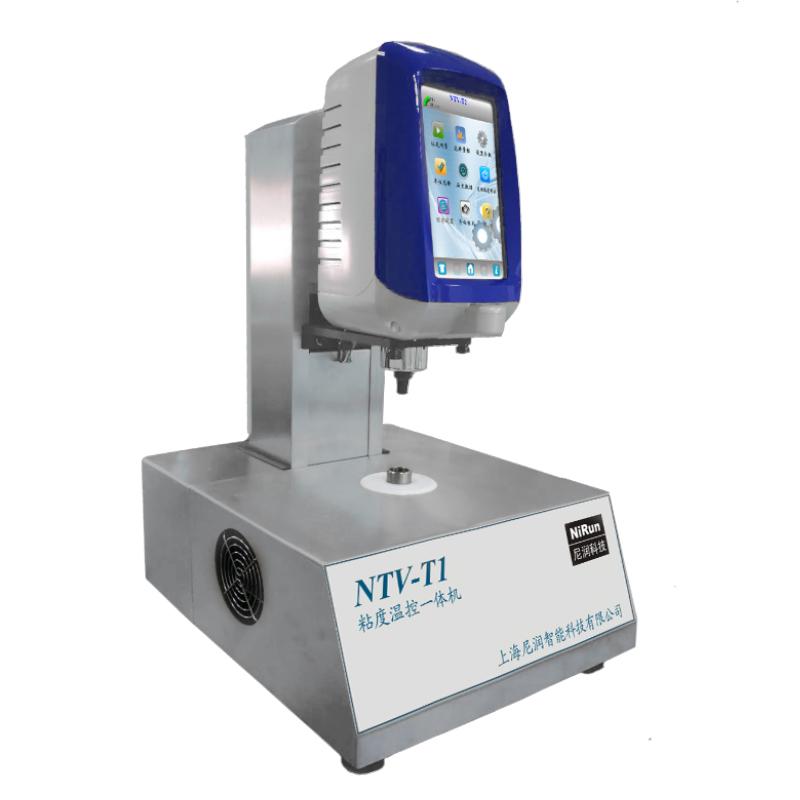

NIRUN NTV-T1L viscosity temperature control machine is a comprehensive viscosity measurement and temperature precision control equipment in one, breaking through the traditional split machine mode, integrated 7 inch Touchscreen host, small sample adapter, SC4 rotor and temperature controller, sample dosage only 2 to 16ml, SC4 rotor cylindrical geometry to ensure accurate viscosity measurement.
Features
1. Integrated viscosity measurement and temperature control in one, breaking through the limitations of the split machine.
The 2.7-inch wide Touchscreen host is easy to operate.
3. Small sample adapter (SSR) and SC4 rotor design, small sample consumption (2-16ml), accurate measurement.
4. Electric control lift, accurate positioning, easy loading and unloading, easy to clean.
5. The sample cartridge is tightly connected to the thermostat, and the thermostatic is accurate, reducing temperature inhomogeneity and shortening the thermostatic time.
6. Comes with password protection temperature and viscosity correction coefficient, users can correct it by themselves.
7. Support infinitely variable speed measurement viscosity, enter any speed to directly display the full scale.
8. Support external U disk data storage, provide single point, continuous, timing three storage methods.
Principle
Viscosity measurement system through the SC4 rotor in the sample swirl/spin, combined with a small amount of sample cylinder and temperature controller is closely connected to achieve thermostatic control of the sample; Stir action of the rotor and a small amount of sample to reduce temperature inhomogeneity, to ensure viscosity measurement accuracy; The system allows users to correct the temperature and viscosity coefficient, and adjust the speed by stepless speed measurement.
Applications
Chemical, pharmaceutical, food, petroleum, paint, scientific research laboratories
Steps
1. Connect the power supply and turn it on.
2. Install a small sample adapter and SC4 rotor.
3. Add 2-16ml of sample to the sample cartridge.
4. Set parameters such as temperature and speed through Touchscreen.
5. Start the automatic lifting system for measurement.
6. Select the data storage method (single point, continuous or timed).
7. After the measurement is completed, remove the sample cartridge for cleaning.
Notice
• Power frequency within the AC100-240V range.
• Sample dosage is strictly controlled between 2-16ml.
• Take care to avoid damage to the equipment when loading and unloading the sample cartridge.
• Check whether the rotor specifications match before use.
• Regularly clean the sample cartridge and rotor to maintain accuracy.
• Ensure USB stick compatibility when storing data.
• Follow password-protected settings for temperature and viscosity correction factor when operating.
