Overview

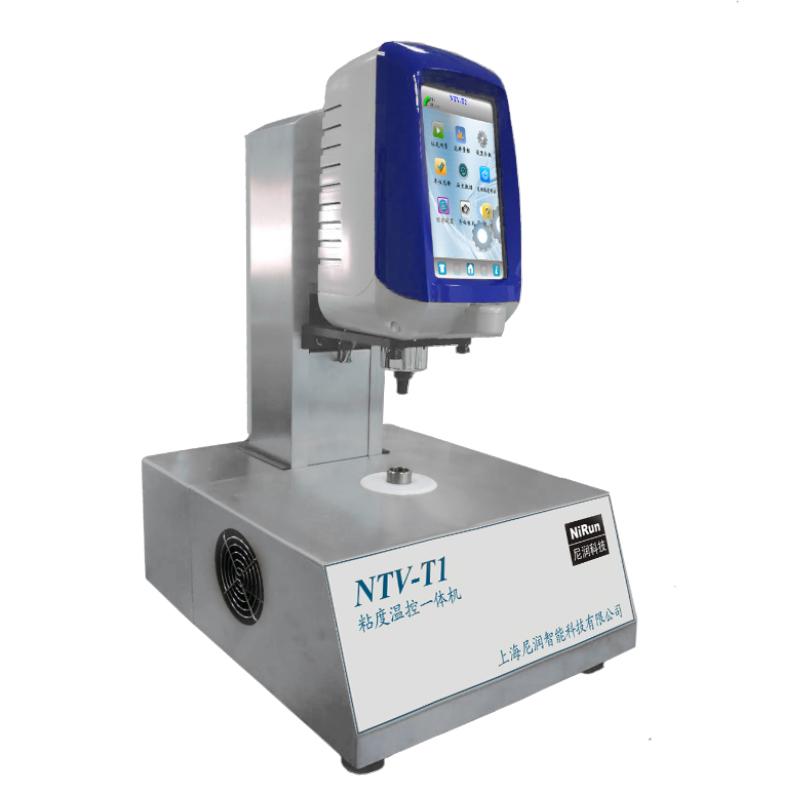

The viscosity temperature control machine is a device that integrates viscosity measurement and temperature precision control, breaking through the market SHANGFEN body machine combination method. It is composed of a 7-inch Touchscreen host, a small sample adapter, an SC4 rotor and a temperature controller. The sample dosage is only 2 to 16ml. The cylindrical geometry of the SC4 rotor ensures accurate viscosity measurement. The electric control lift is accurately positioned, easy to load and unload, and easy to clean.
Features
1. Integrated viscosity measurement and temperature precision control in one, breaking through the limitations of the split machine.
2. Adopt 7-inch wide Touchscreen host, intuitive operation.
3. Small sample adapter (SSR) and SC4 rotor design, small sample consumption (2-16ml), accurate measurement.
4. Electrically controlled lifting, accurate positioning, easy loading and unloading, easy to clean.
5. The sample cartridge is tightly connected to the thermostat, and the thermostatic is accurate, reducing temperature inhomogeneity and shortening the thermostatic time.
6. Comes with password protection temperature and viscosity correction coefficient, allowing users to correct themselves.
7. Support stepless speed measurement viscosity, input speed directly display full scale, convenient test conditions selection.
8. Support external U disk data storage, provide single point, continuous, timing three storage methods.
Principle
The viscosity measurement system swirls/spins through the SC4 rotor in the sample, combined with a small amount of sample adapter, to achieve viscosity measurement. The sample cartridge is closely connected to the temperature controller, and the temperature inhomogeneity is reduced through the rotor Stir action to achieve fast thermostatic. The system uses stepless speed control to directly reflect the full scale under each rotor to ensure measurement accuracy.
Applications
Viscosity measurement, temperature control, laboratory analysis, chemical, pharmaceutical, food, coatings
Standards
Reproducibility +/- 0.5% F.S, measurement accuracy +/- 1% F.S, temperature accuracy +/- 0.1 ℃
Steps
Connect the power supply and input AC100-240V.
2. Install a small sample adapter and SC4 rotor.
3. Add 2-16ml of sample to the sample cartridge.
4. Set the temperature range and speed through Touchscreen.
5. Start the automatic lifting system for measurement.
6. Select the data storage method (single point, continuous, timed).
7. Use a USB stick to export data (optional).
Notice
• Power frequency within the AC100-240V range.
• Sample dosage is strictly controlled at 2-16ml.
• Check whether the rotor specifications match before use.
• Avoid operating outside the temperature range (-1 to 150 ° C).
• Regularly clean the sample cartridge and rotor to prevent contamination.
• Make sure the USB stick is compatible when storing data.
