Overview

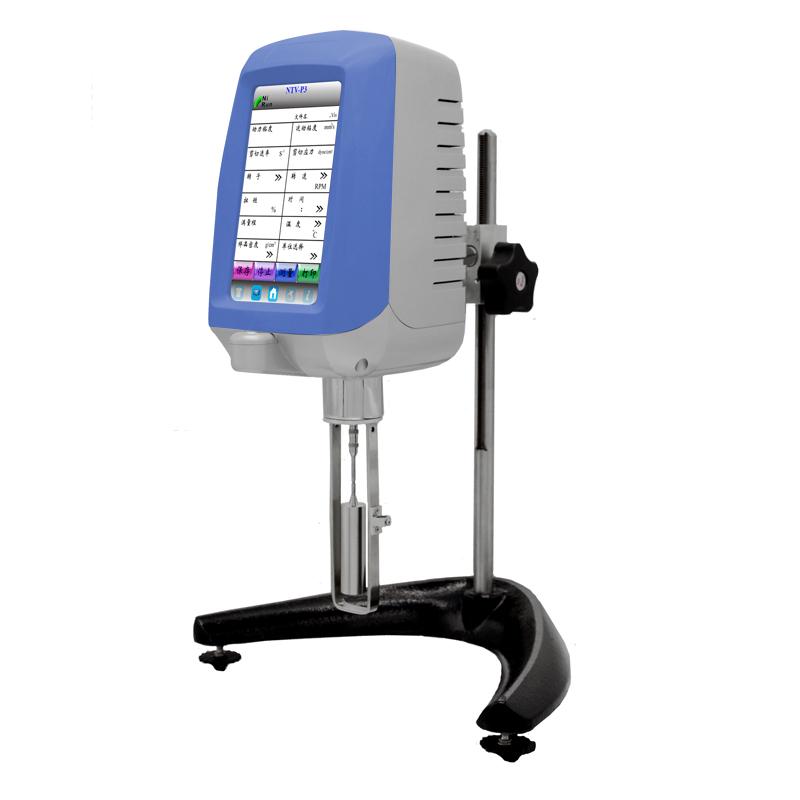

The NIRUN NTV-P3LV digital Viscometer is a high-performance viscosity measurement instrument with a 7-inch wide Touchscreen and ARM chip processor for fast data processing and rich display capabilities. The instrument supports multiple viscosity units and measurement modes for a wide range of fluid material viscosity tests.
Features
1.7 inch wide Touchscreen, easy to operate, rich display information
2. Optional DV data collection and program control software can measure rheological characteristics, and the screen directly displays rheological Linear dispersion
3. Display shear rate and shear stress metrics
4. Anti-static shell, metal lifting rod design
5. Built-in RTD Temperature Probe
6. ARM chip processor, faster data processing speed
7. Durable new small shaft design
8. Powerful human-machine interaction interface
9. Gigabit network port data communication transmission, fast and reliable data transmission
10. Support external U disk data storage; single point, continuous, timing three storage methods are optional
11. Password protection temperature and viscosity correction factor, allowing users to correct themselves with reliable and accurate data
12. Support stepless speed measurement viscosity, input any speed directly reflects the full scale of each rotor
13. Automatic conversion of dynamic viscosity and kinematic viscosity
14. Any exchange of various viscosity units
15. Interchange of a variety of user-friendly operation styles
16. Random comes with powerful operation wizard help
17. The viscosity value shows continuous change
18. There is an alarm sound beyond the measurement range
19. Computer full-scale linear correction
20. AC Power Adapter 100V-240V, good anti-interference
Principle
The digital Viscometer measures viscosity based on the resistance of the rotor as it swirls/spins in the fluid. The built-in Sensor and ARM processor collect data in real time and combine shear rate and shear stress metrics to calculate for accurate viscosity measurement.
Applications
Glue, latex, solvent adhesives, polymer solutions, petroleum, paints, solvents, cosmetics, milk products, products, fruit juices
Steps
1. Connect the Power Adapter and turn it on
2. Choose the right rotor and speed
3. Place the sample in the measurement position
4. Set measurement parameters through Touchscreen
5. Start measurement and observe viscosity changes
6. Save data to a USB stick or transfer it through a gigabit network port as needed
7. Clean the rotor and shut down after use
Notice
• Power frequency in 100V-240V range
• Check whether the rotor is intact and nondestructive before measurement
• Avoid running for a long time beyond the measurement range to prevent alarm prompts
• Regularly calibrate with standard fluid to maintain accuracy
• Pay attention to the compatibility of the U disk and the choice of storage method when storing data
• Follow the password protection settings during operation to ensure safe modification of parameters
