Overview

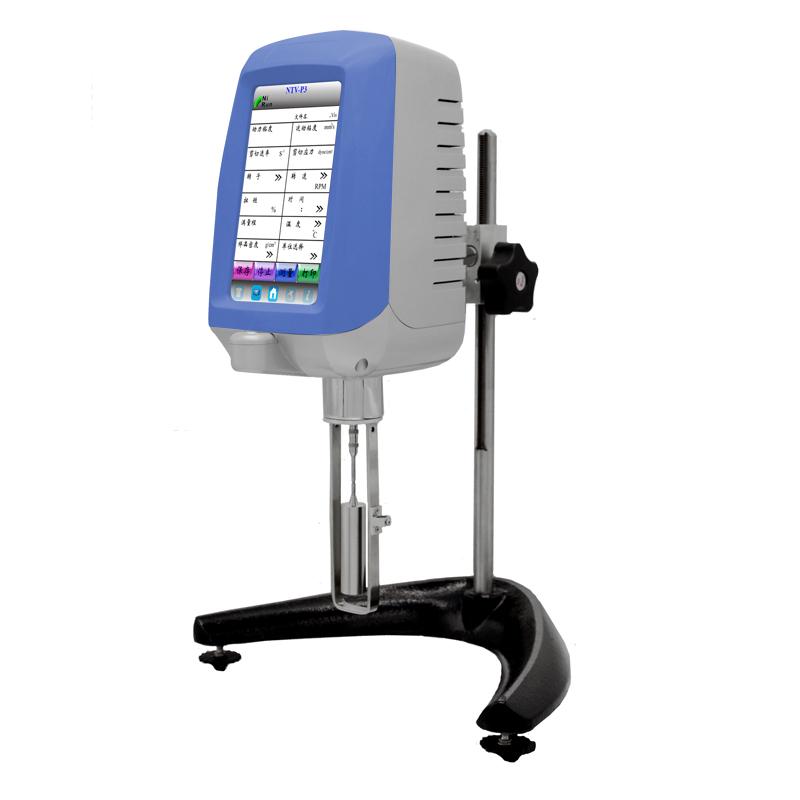

The NIRUN NTV-P3RV Digital Viscometer is a high-performance viscosity measurement instrument with a 7-inch wide Touchscreen and ARM chip processor that provides fast data processing and rich display information. It supports multiple viscosity units and measurement modes for a wide range of fluid viscosity detection needs.
Features
1.7 inch wide Touchscreen, easy to operate, rich display information
2. Optional DV data collection and program control software can measure rheological characteristics, and the screen can directly display rheological Linear dispersion
3. Display shear rate and shear stress metrics
4. Anti-static shell, metal lifting rod design
5. Built-in RTD Temperature Probe
6. ARM chip processor, faster data processing speed
7. Durable new small shaft design
8. Powerful human-machine interaction interface
9. Gigabit network port data communication transmission, fast and reliable data transmission
10. Support external U disk data storage; single point, continuous, timing three storage methods are optional
11. Password protection temperature and viscosity correction factor, allowing users to correct temperature and viscosity correction factor on the premise of reliable and accurate data
12. Support infinitely variable speed measurement viscosity, input any one speed, directly reflect the full scale under each rotor, convenient for users to select test conditions
13. Automatic conversion of dynamic viscosity and kinematic viscosity
14. Any exchange of various viscosity units
15. Interchange of a variety of user-friendly operation styles
16. Random comes with powerful operation wizard help
17. The viscosity value shows continuous change
18. There is an alarm sound beyond the measurement range
19. Computer full-scale linear correction
20. AC Power Adapter 100V-240V, good anti-interference
Principle
The digital Viscometer calculates the viscosity value by measuring the resistance of the fluid to the rotor as the rotor swirls/spins through the fluid. The built-in ARM chip processes data quickly and displays parameters such as shear rate and shear stress in real time for accurate viscosity measurement.
Applications
Glue, latex, solvent adhesives, polymer solutions, petroleum, paints, solvents, cosmetics, milk products, medicines, fruit juices
Steps
1. Connect the Power Adapter and turn it on
2. Choose the right rotor and speed
3. Place the sample in the measurement position
4. Set measurement parameters through Touchscreen
5. Start measurement and observe viscosity change
6. Save the data to the U disk or transfer it through the network port as needed
Notice
• Power frequency in 100V-240V range
• Check whether the rotor is in good condition before use
• Avoid operating beyond the measurement range to prevent alarm prompts
Periodically calibrate instruments to ensure accuracy
• Choose the appropriate storage method when storing data
