Overview

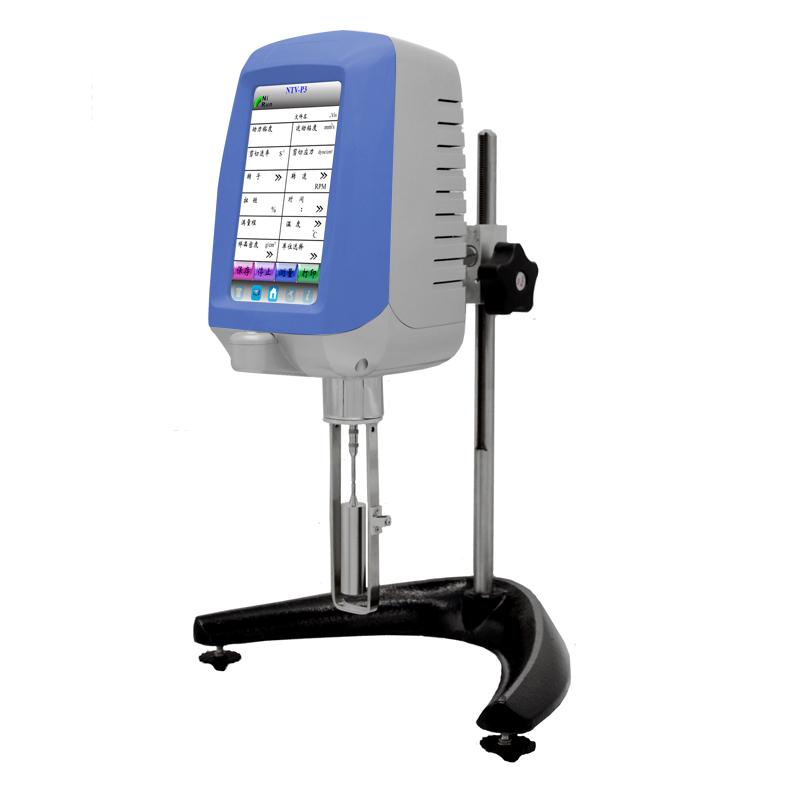

The NIRUN NTV-P3HA digital Viscometer is a precision measuring instrument with a 7-inch wide Touchscreen, with rich display information and convenient operation interface. The device supports a variety of viscosity units and measurement modes, suitable for viscosity testing of various fluid materials such as glues, latex, solvent adhesives, polymer solutions, petroleum, paints, solvents, cosmetics, milk products, pharmaceuticals, juices, etc.
Features
1.7 inch wide Touchscreen, easy to operate, rich display information
2. Optional DV data collection and program control software can measure rheological characteristics, and the screen can directly display rheological Linear dispersion
3. Display shear rate and shear stress metrics
4. Anti-static shell, metal lifting rod design
5. Built-in RTD Temperature Probe
6. ARM chip processor, faster data processing speed
7. Durable new small shaft design
8. Powerful human-machine interaction interface
9. Gigabit network port data communication transmission, fast and reliable data transmission
10. Support external U disk data storage; single point, continuous, timing three storage methods are optional
11. Password protection temperature and viscosity correction factor, allowing users to correct temperature and viscosity correction factor on the premise of reliable and accurate data
12. Support infinitely variable speed measurement viscosity, input any one speed, directly reflect the full scale under each rotor, convenient for users to select test conditions
13. Automatic conversion of dynamic viscosity and kinematic viscosity
14. Any exchange of various viscosity units
15. Interchange of a variety of user-friendly operation styles
16. Random comes with powerful operation wizard help
17. The viscosity value shows continuous change
18. There is an alarm sound beyond the measurement range
19. Computer full-scale linear correction
20. AC Power Adapter 100V-240V, good anti-interference
Principle
The digital Viscometer calculates the viscosity value by measuring the resistance of the fluid to the rotor by swirling/spinning the rotor in the fluid. The device uses an ARM chip processor to process data quickly, and the built-in RTD temperature Probe monitors the temperature in real time. Full scale linear correction by computer ensures measurement accuracy.
Applications
Glue, latex, solvent adhesives, polymer solutions, petroleum, paints, solvents, cosmetics, milk products, medicines, fruit juices
Steps
1. Connect the Power Adapter and turn it on
2. Select the appropriate rotor and speed
3. Immerse the rotor in the sample to be tested
4. Set measurement parameters through Touchscreen
5. Start measurement and observe viscosity change
6. Data can be saved by USB flash drive or network transmission
Notice
• Make sure the power frequency of the equipment is within the range of 100V-240V before use
• Pay attention to the viscosity range when selecting the rotor to avoid exceeding the measurement limit
• Keep the sample temperature stable during measurement to obtain accurate data
• Regularly calibrate with standard solution
• Pay attention to the alarm prompt when exceeding the measurement range
• Choose single point, continuous or timed mode when storing data
• Reliable data is required when correcting the temperature and viscosity coefficient by yourself
