Overview

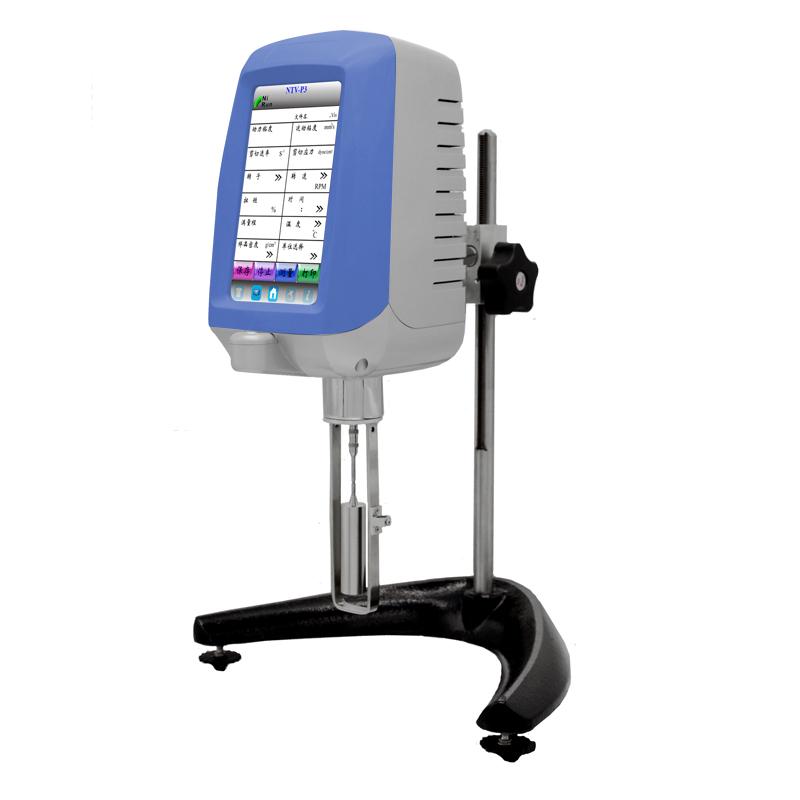

The NIRUN NTV-P3HB Digital Viscometer is an advanced viscosity measurement device with a 7 inch wide Touchscreen, providing rich display information and convenient operation experience. It supports a variety of viscosity units and measurement modes, suitable for a wide range of fluid viscosity detection needs.
Features
1.7 inch wide Touchscreen, easy to operate, rich display information
2. Optional DV data collection and program control software can measure rheological characteristics, and the screen directly displays rheological Linear dispersion
3. Display shear rate and shear stress metrics
4. Anti-static shell, metal lifting rod design
5. Built-in RTD Temperature Probe
6. ARM chip processor, faster data processing speed
7. Durable new small shaft design
8. Powerful human-machine interaction interface
9. Gigabit network port data communication transmission, fast and reliable data transmission
10. Support external U disk data storage; single point, continuous, timing three storage methods are optional
11. Password protection temperature and viscosity correction factor, allowing users to correct themselves with reliable and accurate data
12. Support stepless speed measurement viscosity, input any speed directly reflects the full scale under each rotor
13. Automatic conversion of dynamic viscosity and kinematic viscosity
14. Any exchange of various viscosity units
15. Interchange of a variety of user-friendly operation styles
16. Random comes with powerful operation wizard help
17. The viscosity value shows continuous change
18. There is an alarm sound beyond the measurement range
19. Computer full-scale linear correction
20. AC Power Adapter 100V-240V, good anti-interference
Principle
The digital Viscometer works on the rotor swirl/spin principle and calculates the viscosity value by measuring the resistance of the fluid to the rotor. The built-in ARM chip processes the data quickly, and the RTD Temperature Probe monitors the temperature in real time to ensure measurement accuracy.
Applications
Glue, latex, solvent adhesives, polymer solutions, petroleum, paints, solvents, cosmetics, milk products, medicines, fruit juices
Steps
1. Connect the Power Adapter and turn it on
2. Choose the right rotor and speed
3. Place the sample in the measurement position
4. Set measurement parameters through Touchscreen
5. Start measurement and observe viscosity changes
6. Save data to a USB stick or transfer it through a gigabit network port as needed
7. Clean the equipment after use
Notice
• Power frequency in 100V-240V range
• Check whether the rotor is in good condition before measurement
• Avoid use when exceeding the measurement range to prevent alarm prompts
• Keep passwords safe when using password protection
• Regularly clean equipment to maintain accuracy
• Please refer to the list of optional accessories when selecting accessories
