Overview

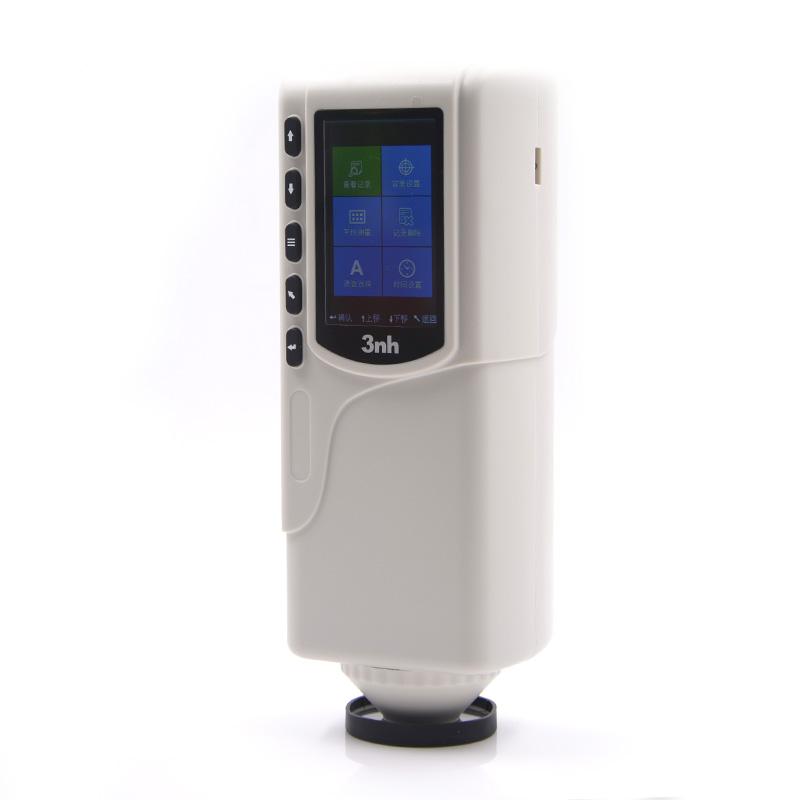

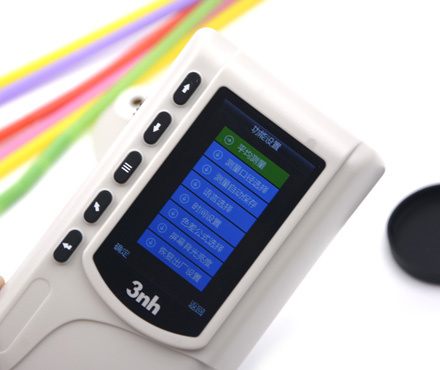

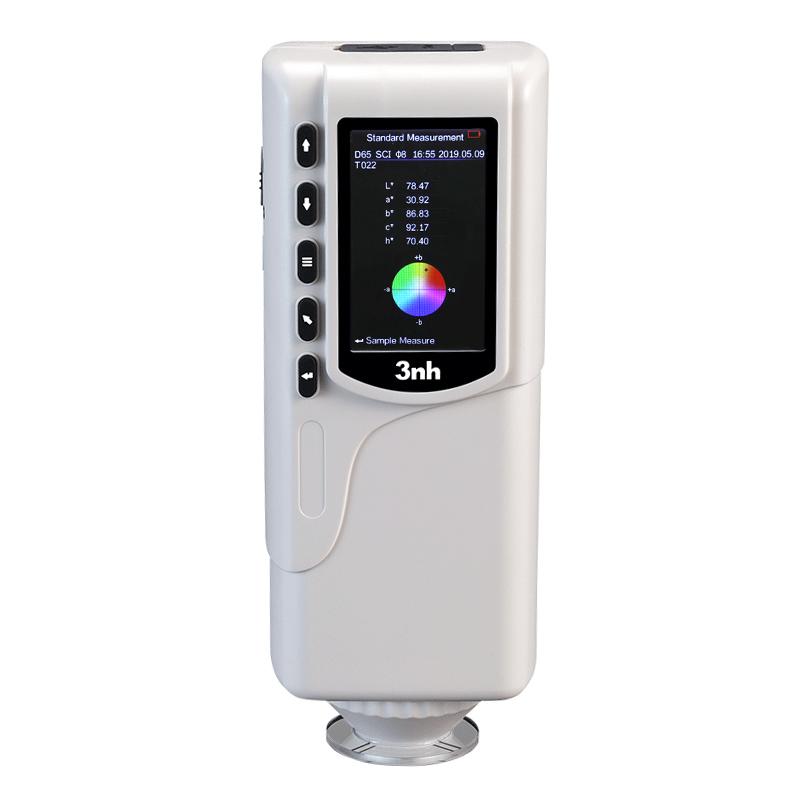

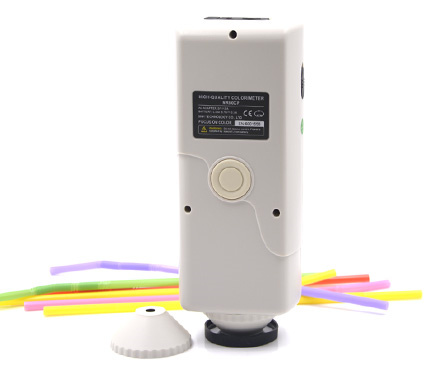

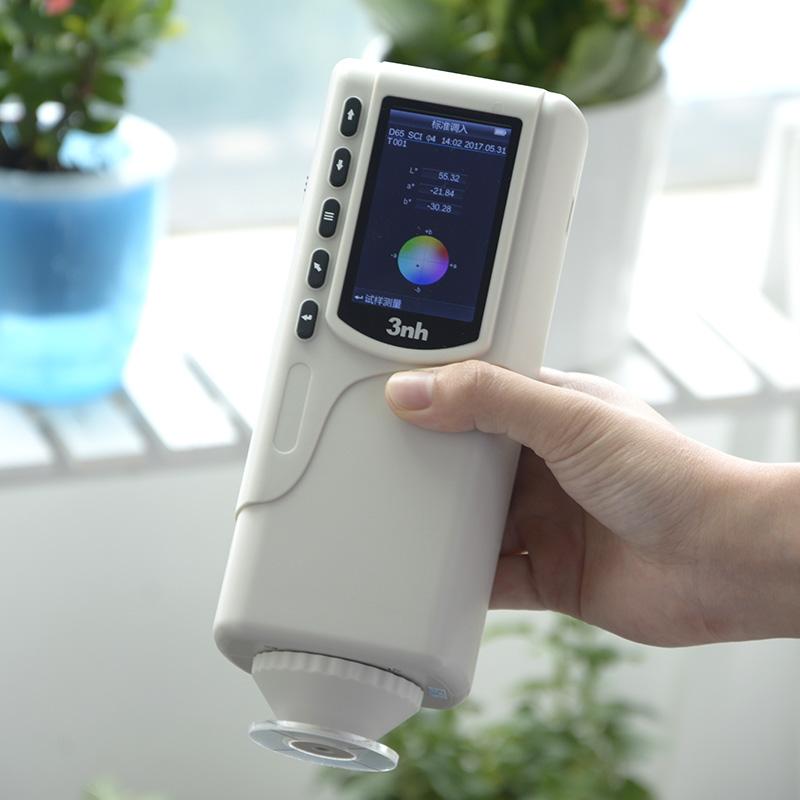

Sanenchi/3nh NR60CP Handheld color difference meter is a new Handheld High Accuracy computer color difference meter. It adopts a vertical structure design, is compact and easy to carry. The product is developed in strict accordance with national standards and CIE international standards. It has 8mm and 4mm dual calibers, multiple Color spaces and dual positioning functions, stable and accurate measurement, and is suitable for a variety of industries. The NR60CP has stable performance. The original machine comes with Color management software to increase the scope of use and functionality.
Features

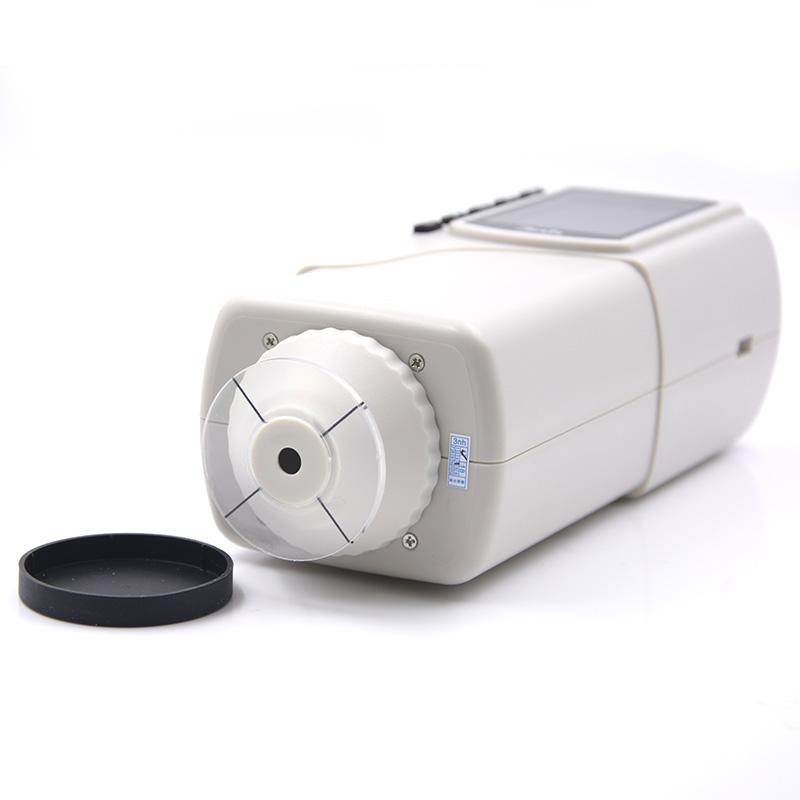

1. The dual-diameter of φ 8mm and φ 4mm is freely switched, and the measurement of concave samples in large planes is simpler
2. With Higher Measurement Stability and Accuracy, Delta E * ab < 0.03, Dual Caliber Test Data Can Pass National Measurement Test Certification
3. Multiple Color Spaces, Multiple Color Indices, Wider Applicability
4. Dual positioning: light positioning, cross positioning
5. Configure a high-capacity rechargeable lithium-ion battery
6. Built-in whiteboard parameters, and configure physical whiteboard at the same time, which is convenient for operation
7. New integrating sphere design, more stable measurement
Principle
NR60CP Handheld color difference meter uses 8 °/d illumination mode, LED Illuminant illumination, silicon photodiode sensor, and obtains Color data by measuring the reflected light of the sample. The instrument has a variety of built-in Color space and Color difference formula, which can accurately calculate the color difference value and realize Color mass control.
Applications
Plastics, Coating inks, Printing, Automotive, Spinning & weaving, Food & Miscellaneous
Standards
CIE No.15、GB/T 3978
Steps
1. Boot preparation
2. Select measurement caliber
3. Carry out whiteboard calibrating
4. Positioning measurement sample
5. Start measurement
6. View and log data
Notice
• Try not to directly measure the product just finished, but wait for the product to drop to about the same temperature as room temperature
• If the battery power is lower than 30%, prepare a lithium battery to charge, shut down when charging, and do not measure too low power, which is easy to damage the lithium battery
• For parts with complex shapes and structures, try to use the average measurement method for measurement
• Use fixed measurement personnel as much as possible to avoid the influence of some human subjective factors on the measurement results
