Overview
The 3nh SC-10 Handheld color difference meter is a blue case Portable measuring instrument with a large LCD screen, with a 4mm measurement diameter, suitable for small area measurement. Developed according to CIE standards and national standards, the instrument has two methods of light positioning and cross positioning, which improves the accuracy of measurement positioning. It uses lithium battery power and supports external power supply. It has the characteristics of easy use, stable performance and fast and accurate measurement.
Features
1. Built-in black and white board parameters, no need for black and white correction, simplifying operation steps
2. Short-term, high repeability accuracy, Delta E ≤ 0.03
3. No need to connect a computer, it works immediately after booting, and the measurement is simple

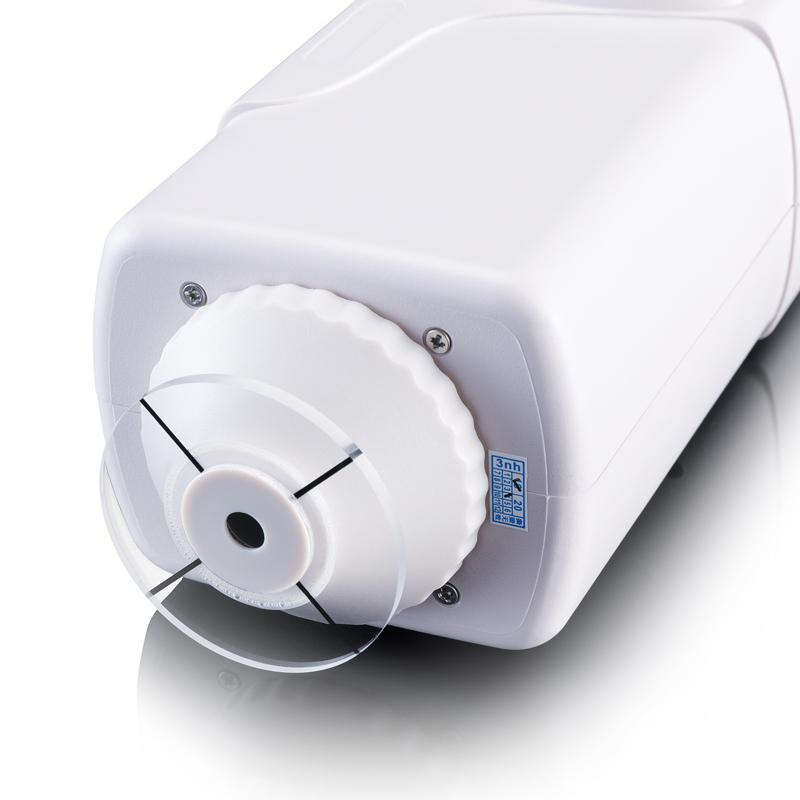

4. Using light positioning and cross positioning dual positioning technology, it can quickly align the measured part
5. Portable structure design, 4mm measurement diameter, suitable for more measurement occasions
6. Automatically save data during measurement, fast operation
Principle
Handheld color difference meter with 8 °/D illumination mode and silicon photodiode array Sensor, using D65 Measurement light source and LED blue excitation illumination Illuminant, color measurement through CIEL * a * b Color space, Measurement time only 1.5 seconds.
Applications
Plastics, printing, automotive, Spinning & weaving, food, Coating inks
Standards
CIE (International Commission on Illumination) standards, national standards
Notice

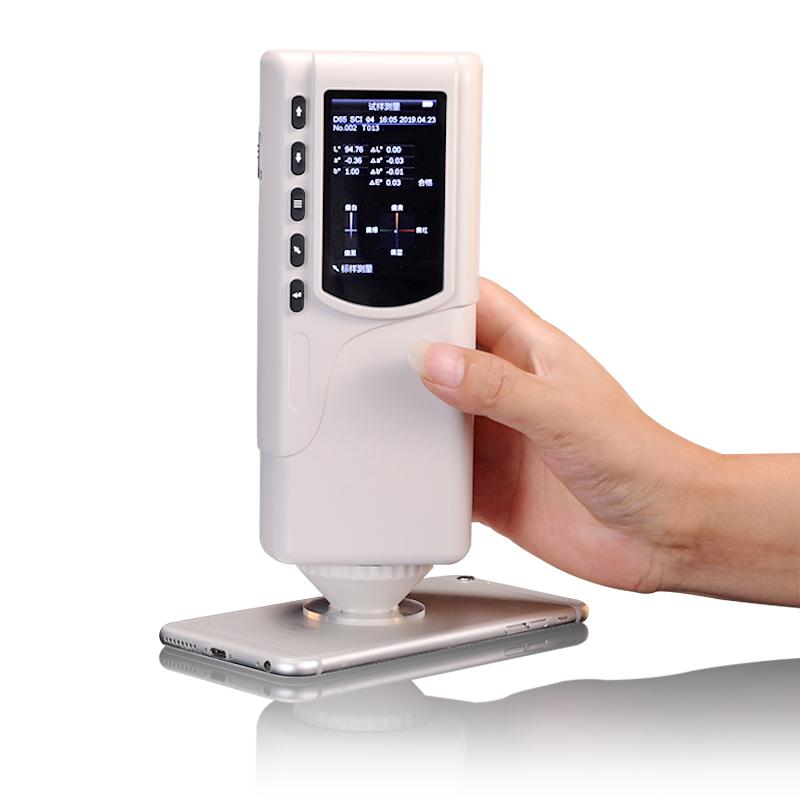

• When measuring, keep the instrument stable and the measurement port close to the measured object to avoid shaking and moving
• Avoid drastic changes in the external environment, such as flickering light and large changes in temperature Humidity
• Keep it properly after use
• If the battery is not used for a long time, the battery should be removed
Store in a dry, cool environment
Do not make any unauthorized changes
• Not waterproof, can not be used in high Humidity environment or water mist, to avoid water vapor, dust and other foreign matter into the measurement caliber and the inside of the instrument, to avoid collision
