Overview

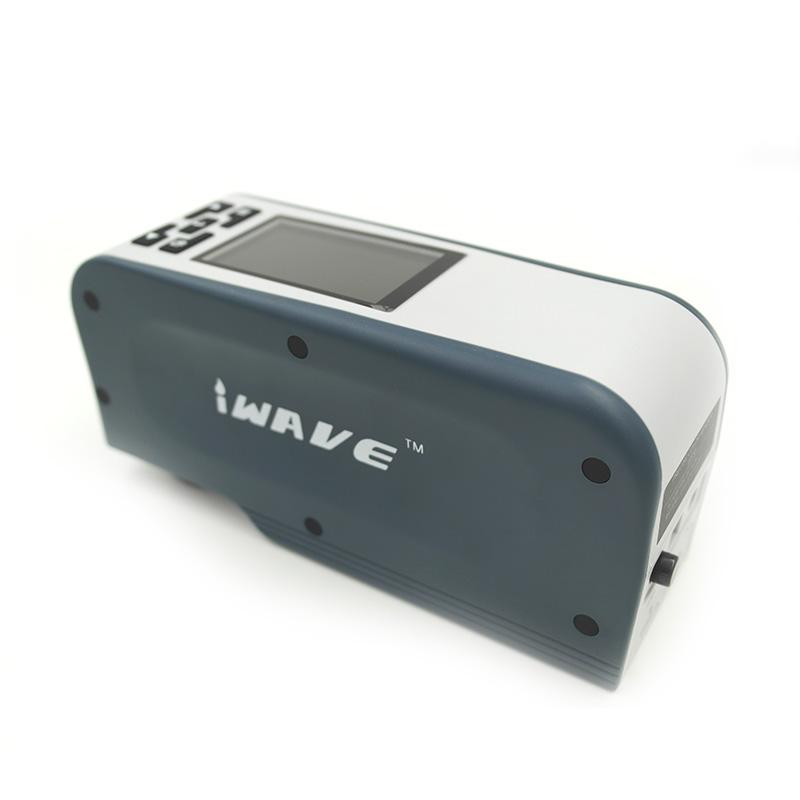

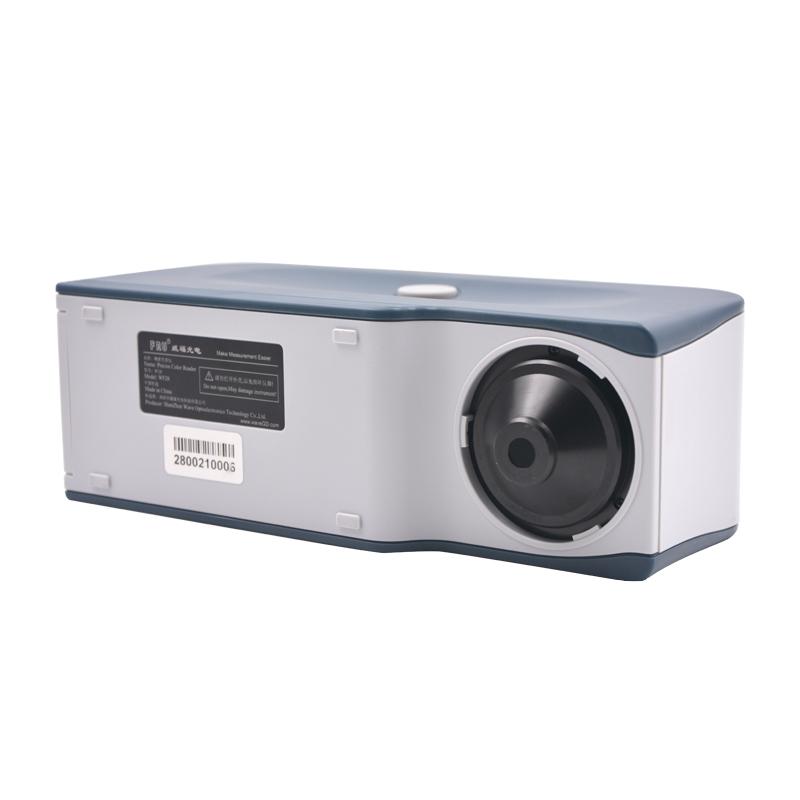

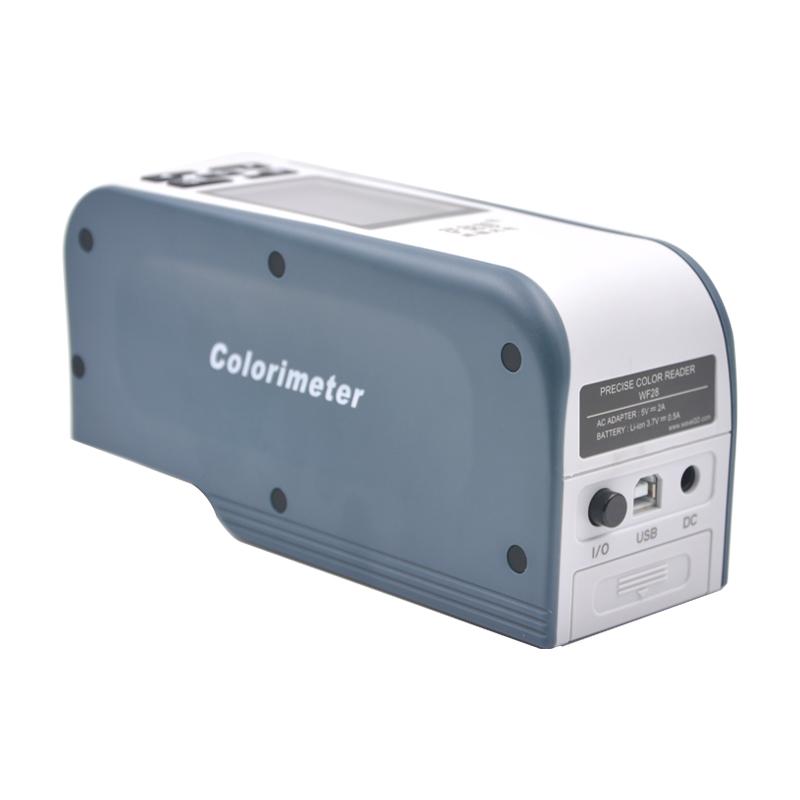

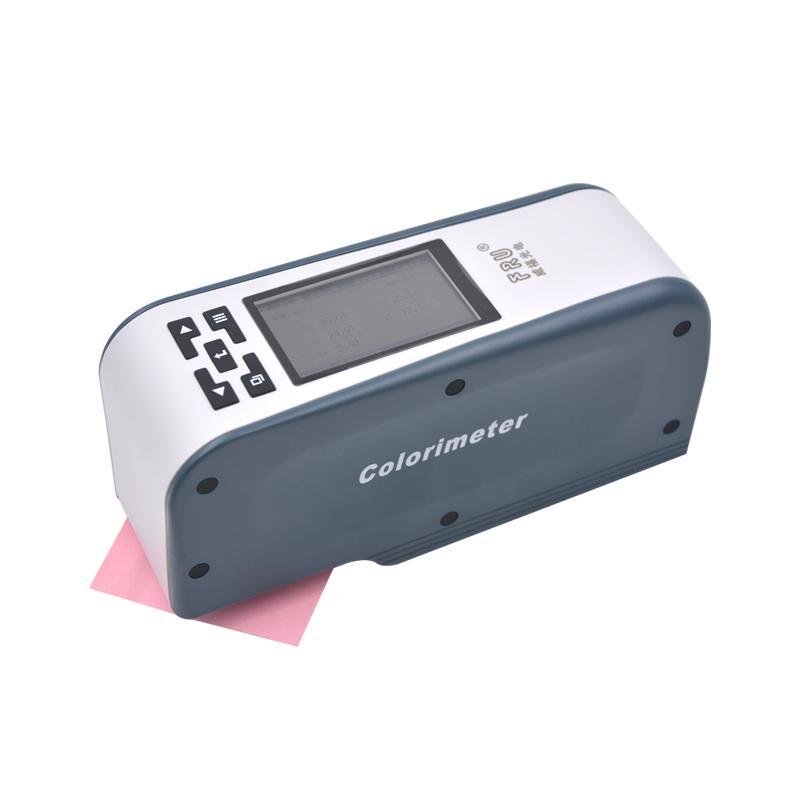

IWAVE color difference meter WF28 is an economical horizontal structure color difference meter with a measurement diameter of 8mm. It is equipped with a large LCD color display screen to view measurement data in real time. The instrument adopts LED blue light Excitation light source, the measurement speed is only 0.5 seconds, and it has a USB interface to connect to the PC to transmit data. Operating interface in Chinese is simple and convenient.
Features
1. Economical design, off-white Appearance Linear dispersion

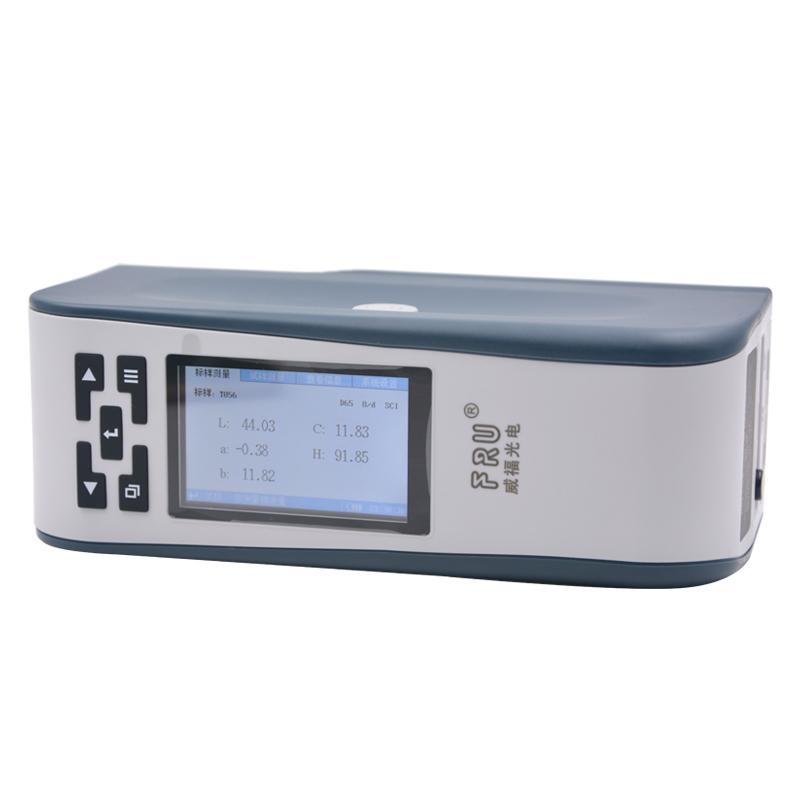

2. Large LCD color display, large font display is clear
3. Fast measurement, only 0.5 seconds
4. Excellent Repeatability, Delta E < 0.07
5. Built-in whiteboard automatic correction, no manual operation required
6. Positioning function of measurement port, accurate positioning
7. High Accuracy repeability accuracy of 0.05
8. Portable design, the fuselage is stable and does not leak light
9. A variety of power supply methods, lithium batteries can be charged 5,000 times at a time
10. Accept customized services
Principle
Color difference meter uses LED blue Excitation light source to illuminate the measured object through 8 °/d illumination, Sensor photodiode array receives reflected light signal, measurement L * a * b * and other Color parameters, to achieve accurate measurement of Color difference.
Applications
Spinning & weaving, clothing, chemicals, leather, video, food, plastics, paints, toys, Hardware, printing
Standards
CIE 10 ° viewing angle, D65 Measurement light source, Delta E * ab Color difference formula
Steps
1. Automatic power-on correction
2. Select Measurement mode
3. Position the measurement port to align with the measured object
4. Carry out measurements
Step 5 View display data
6. Transfer data to the PC through the USB interface
Notice
• Operating Ambient Temperature should be within the range of 0 ℃ -40 ℃
• relative humidity should be less than 85%, no condensation
• Storage Ambient Temperature -20 ℃ -50 ℃
• Avoid measurement port contamination affecting accuracy
• Regular charging to maintain battery performance
Accessories to ensure measurement accuracy
