Overview

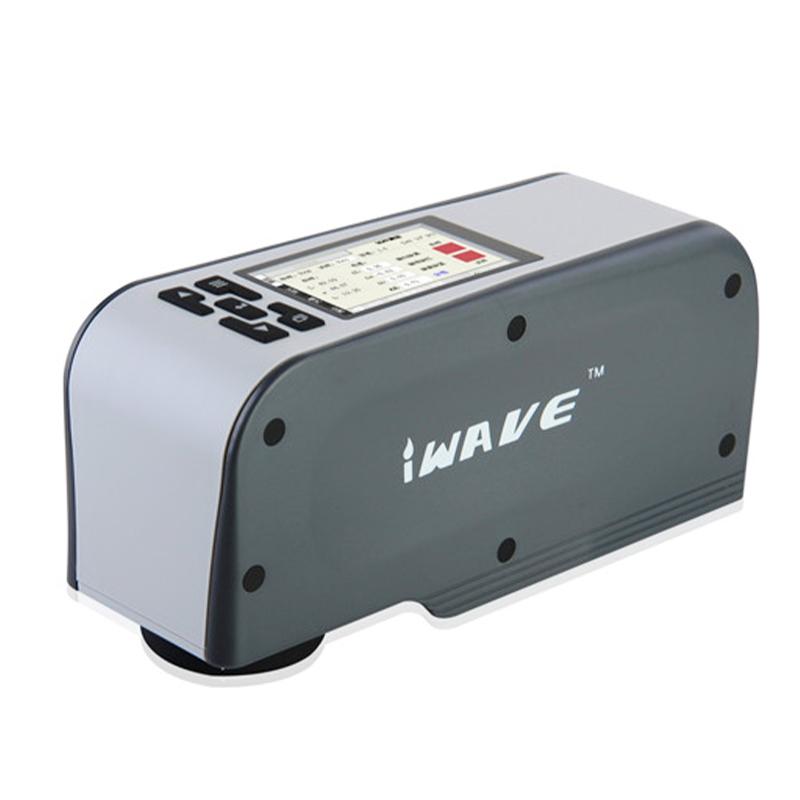

The IWAVE WF32-4mm color difference tester adopts imported high-quality components to improve measurement Stability and accuracy, and is easy to operate. The instrument is designed with eight types of Illuminants, which expands the application range compared with the common 1-2 Illuminant models in China. The measurement diameter is 4mm, and 8mm and 16mm are optional. The new CIELUV, HunterLAB, sRGB display modes and a variety of Color difference formulas are added, and the measurement is accurate and stable. It is suitable for the detection of various materials and special surface shapes.
Features
1. Intuitive and easy to operate: 2.8-inch color screen, large font and clear display; simple and clear operation key surface; display technical parameter coordinate map, Color simulation.
2. Automatic High Accuracy: Built-in whiteboard, automatic correction when turned on; measurement port positioning function, accurate positioning; repeability accuracy of 0.05, mostly between 0.01-0, close to Colorimeter LAB value.
3. Professional and practical: a variety of Measurement mode, three caliber optional (4mm, 8mm, 16mm), five Color space, eight Color difference formula, eight Illuminant; Portable design, the body is stable, no light leakage; Power supply mode, high capacity polymer battery can be charged 6000-8000 times; Appearance generous, feel good; Accept customization and provide Color measurement solutions.
Principle
IWAVE WF32-4mm color difference tester uses 8 °/d illumination mode and LED blue light excited illumination Illuminant, and captures the color information of the measured object through the photodiode array Sensor. The instrument automatically performs whiteboard correction, and uses built-in algorithms to calculate various Color difference formulas and Color spaces to achieve fast and accurate color difference measurement.
Applications
Coatings, paints, printing, rubber, leather, Glass, toys, building materials, Spinning & weaving, home appliances
Standards
SGS trust identification
Steps
1. Automatic correction when turned on: The instrument has a built-in whiteboard, which is automatically corrected after turning on.
2. Select the measurement diameter: choose the diameter of 4mm, 8mm or 16mm according to the surface of the measured object.

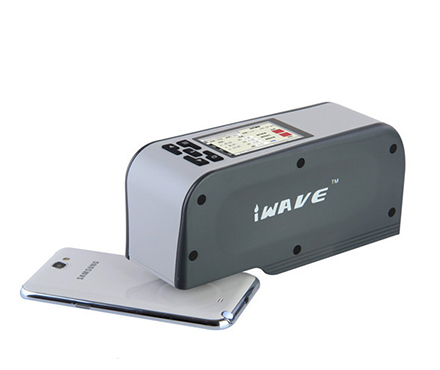

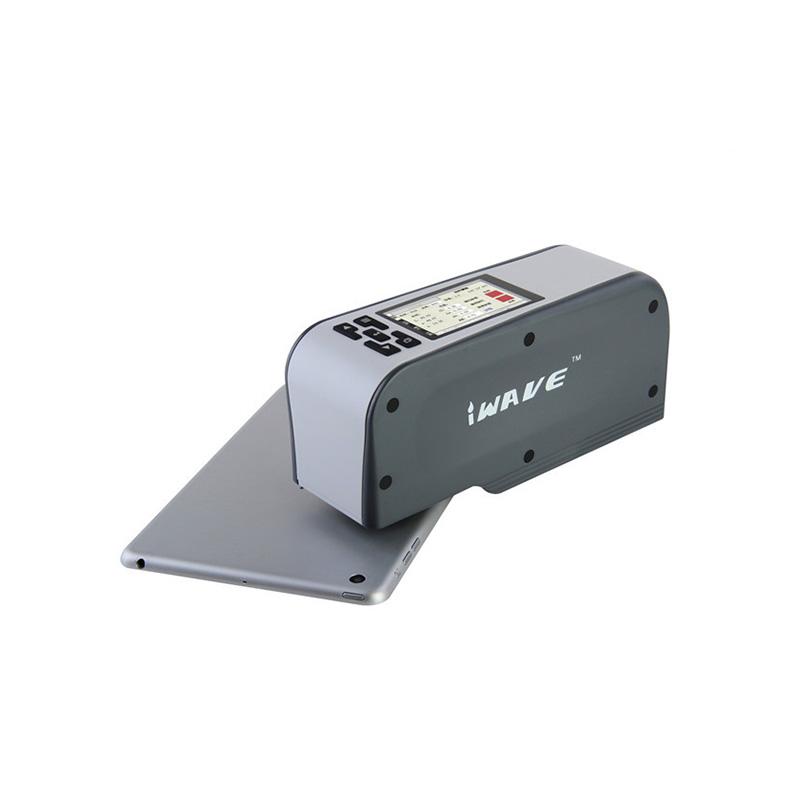

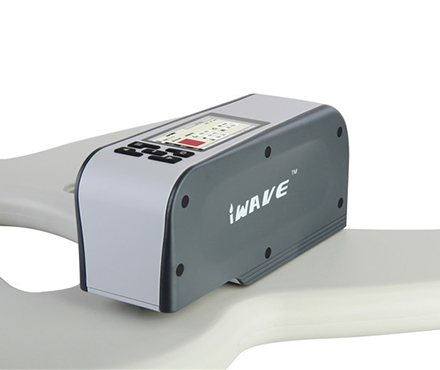

3. Positioning measurement: Use the measurement port positioning function to accurately align the measured object.
4. Start measurement: Press the measurement button, the instrument completes the measurement and displays the result within 0.5 seconds.
5. View data: View color difference, Color space and other parameters through the display screen, and store data.
Notice
• Ambient Temperature should be 0 ℃ -40 ℃, relative humidity below 85%, no condensation.
• Storage Ambient Temperature should be -20 ℃ -50 ℃, relative humidity below 85%, no condensation.
• Avoid contaminating the built-in whiteboard to ensure the accuracy of automatic correction.
• Make sure that the measurement port is close to the surface of the measured object during measurement to prevent light leakage from affecting the data.

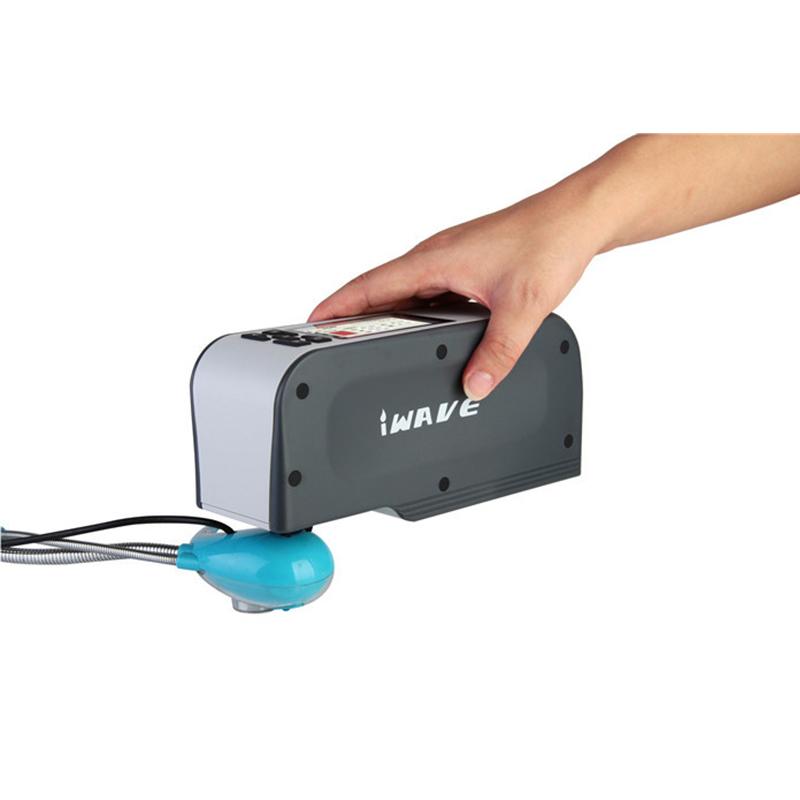

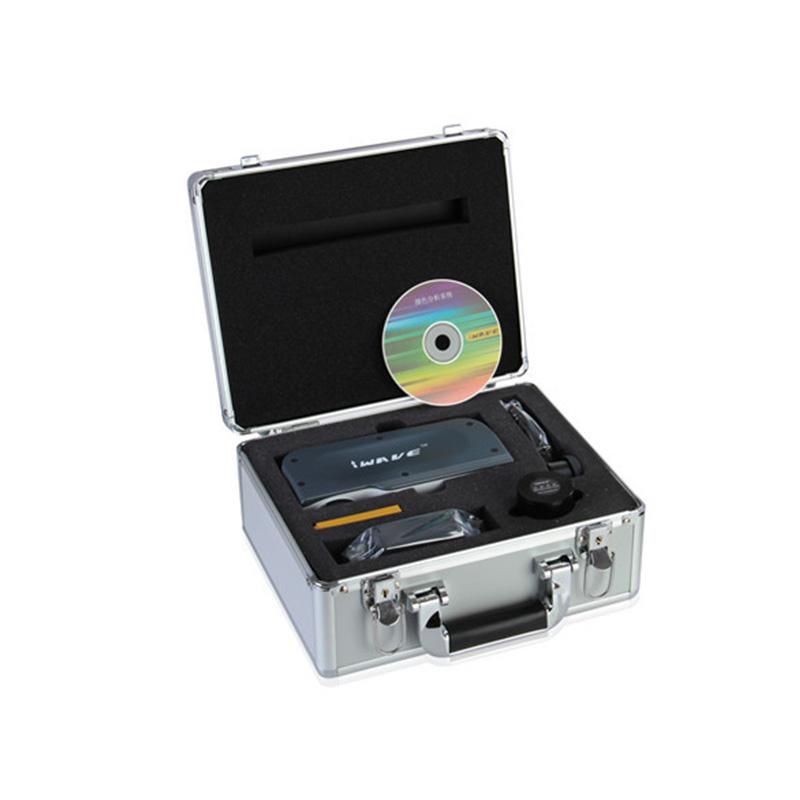

• Regularly check the battery level to ensure the number of measurements; Optional Accessories such as powder test kits need to be used correctly.
• The instrument is heavy (700g), pay attention to holding it stable when using it to avoid falling.
