Overview

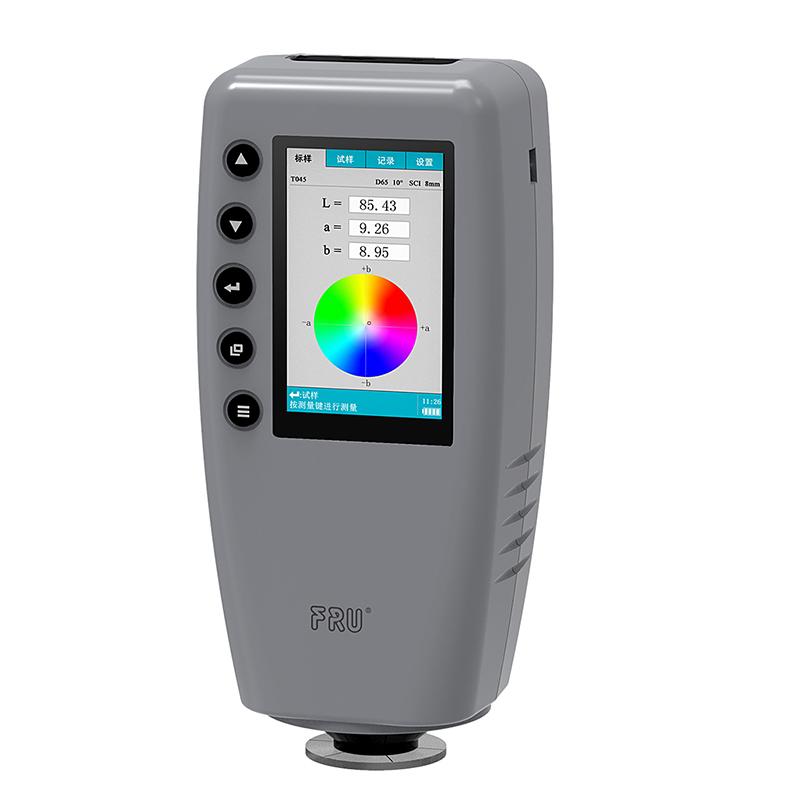

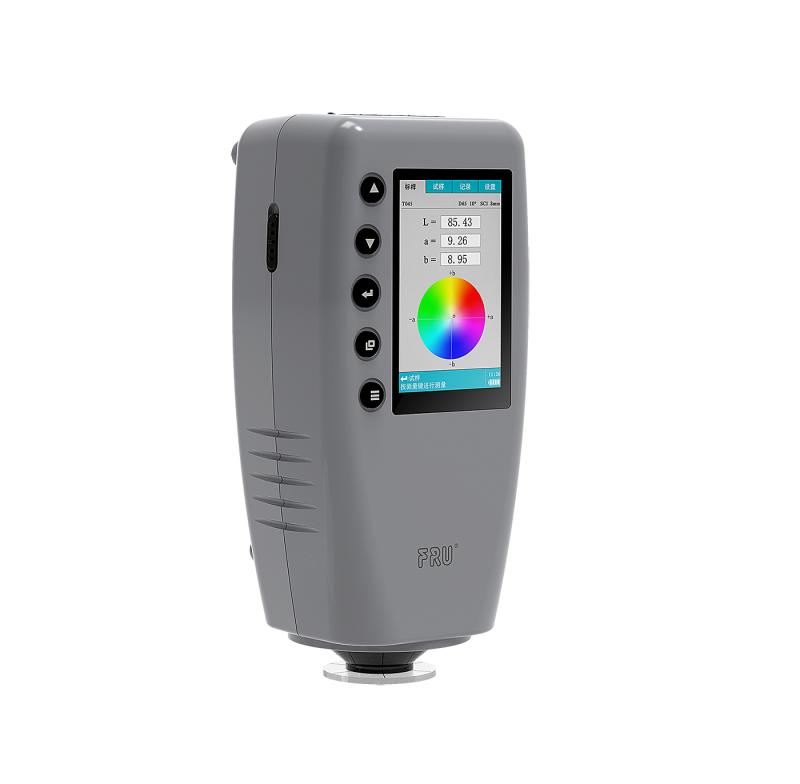

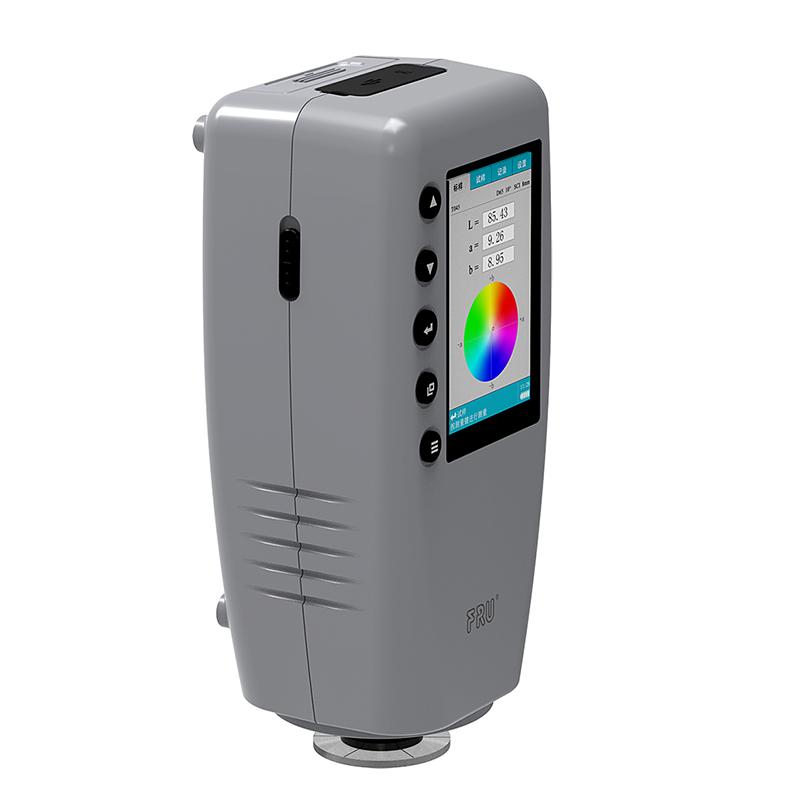

IWAVE WR-10 color difference meter is a Handheld color difference meter with a measurement diameter of 8mm. It has the advantages of stable and fast measurement, simple and convenient operation. It adopts lithium battery design, low power consumption, vertical structure is convenient for production line detection and mobile measurement, and easy to carry. According to the relevant CIE standards of the International Commission on Illumination and national standards, it has the characteristics of accuracy, stability and economy.
Features
1. Using lithium battery, low power consumption design
2. Automatic calibration function to reduce operation flow
3. Large LCD color display, easy to read
4, measurement diameter of 8mm, wide adaptability
Principle
The IWAVE WR-10 color difference meter uses a photodiode array Sensor to quickly obtain full-wavelength data in a short time for fast measurement. Color parameters are obtained through master standard measurement, and then sample parameters are obtained through sample measurement, and color difference data between sample and master standard is obtained by operation.
Applications
Spinning & weaving, printing, chemicals, clothing, leather, video, food, plastics, paints, toys, Hardware
Standards
International Commission on Illumination CIE related standards, national standards
Steps
1. Boot: Start the instrument after confirming the power supply, the screen displays the boot LOGO, and enters the self-test procedure
2. Master standard measurement: Perform measurement on the master standard page to obtain the Color parameters of the standard sample
3. Sample measurement: Press the page change button to switch to the sample page, and measure the color difference parameters between the sample and the master standard
Notice
● When not in use for a long time, it should be stored in the Encasement Box
● Storage temperature is -10 ° C~ 50 ° C, relative humidity below 85% in a cool, drying environment
● Operating Environment Temperature 0 ° C~ 40 ° C, relative humidity 85%, no condensation
● Avoid use in strong magnetic field, violent vibration, dust, smoke environment
Avoid foreign matter such as liquids, powders, and solids from entering the instrument
